Aeromotive Fuel System Fuel Pressure Regulator - 13134
Color
Black
Fuel Type
Gasoline
Gauge Port
No
Includes Fittings
No
Includes Mounting Brackets
Yes
Inlet Attachment
Female Threads
Inlet Quantity
Dual
Inlet Size
5/8 Inch (-10 AN)
Material
Aluminum
Outlet Attachment
Female Threads
Outlet Quantity
Dual
Share this page

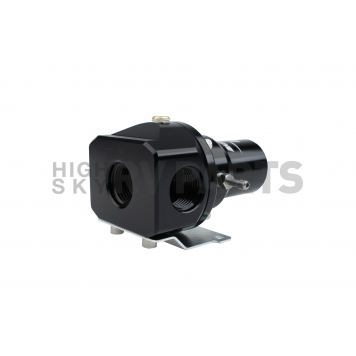

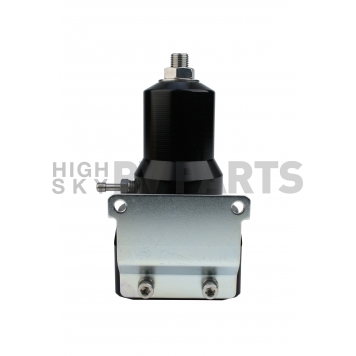

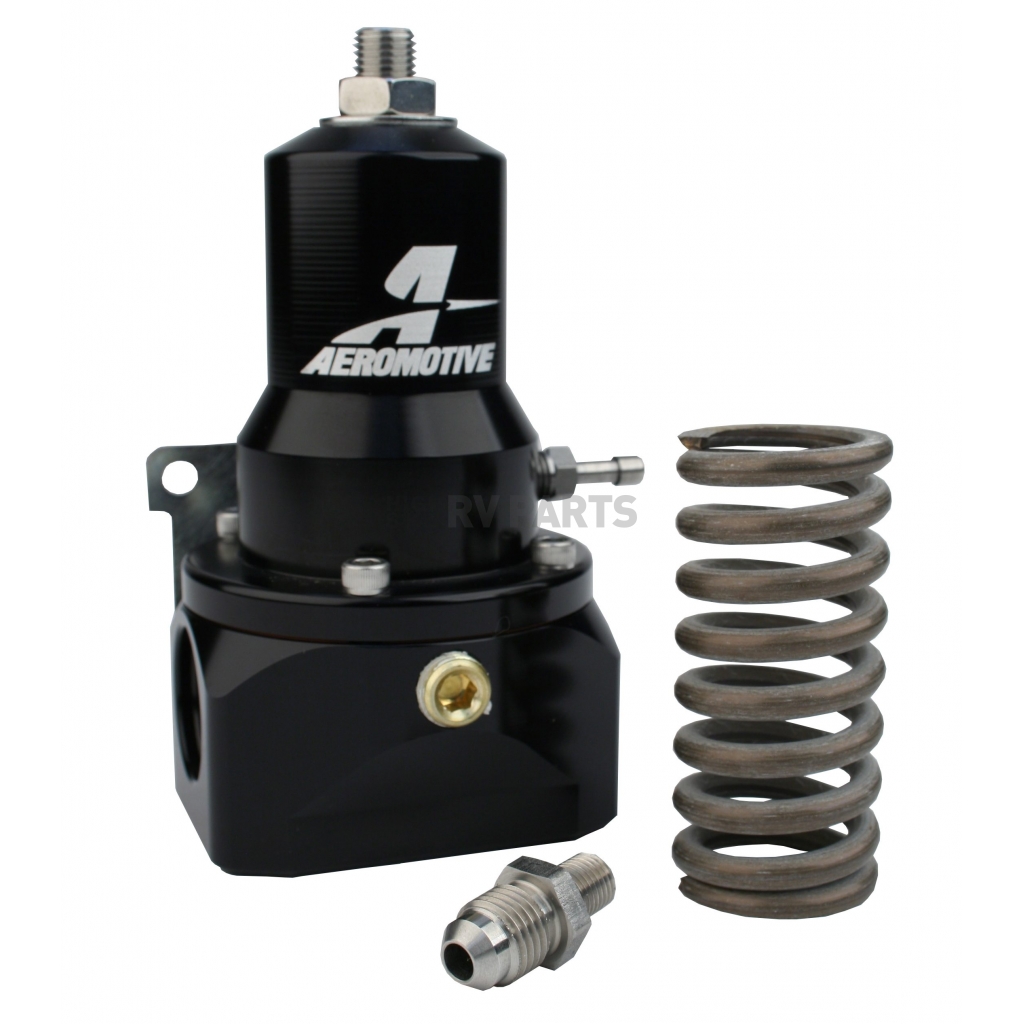

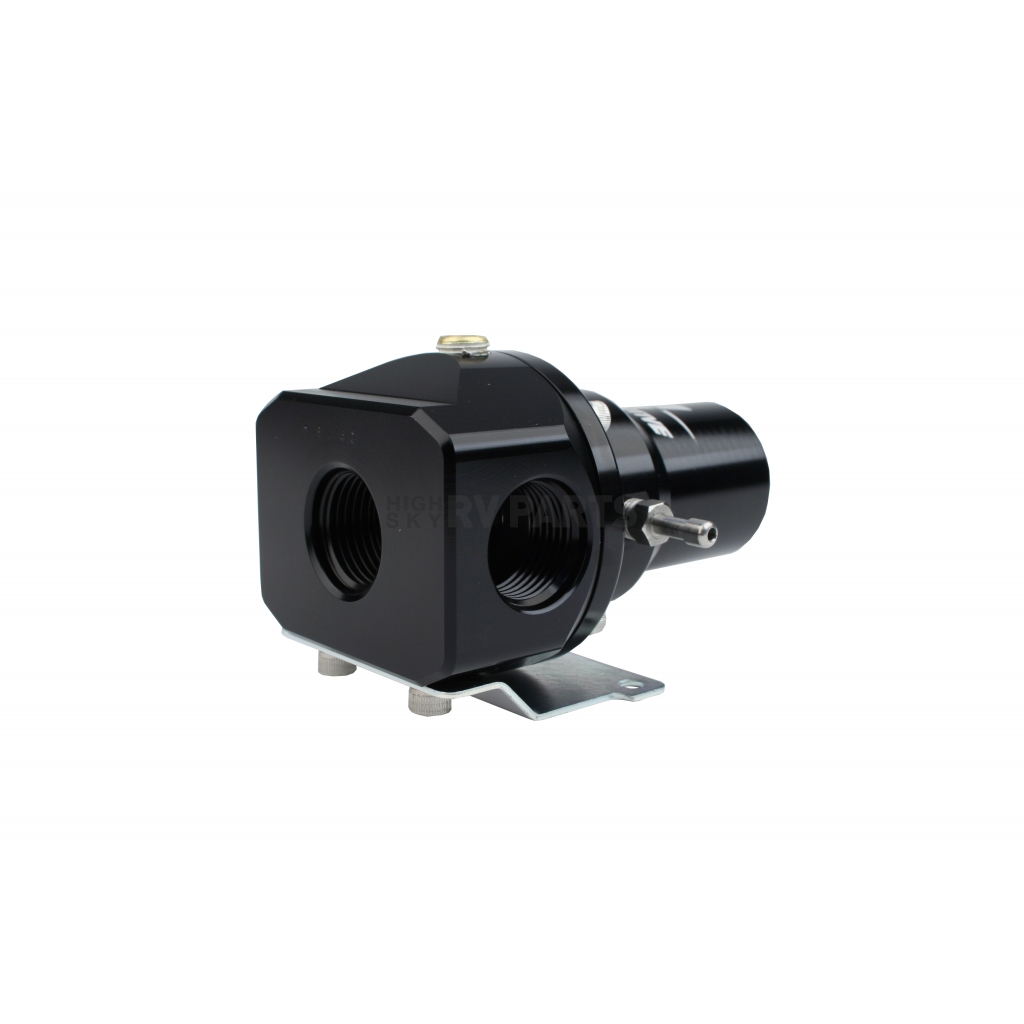

Aeromotive Fuel System Fuel Pressure Regulator
Fuel Pressure Regulator; 30-120 PSI; (2) AN-10 inlets/AN-10 Bypass (2-Port version of 13110); Black; Aluminum
MPN: 13134
Extreme Flow EFI Regulator Designed for use with Eliminator, Pro-Pump and Dual A1000 fuel systems. Compact, 2-Port Body with dual AN-10 inlet/outlet ports and one AN-10 return port. 0.313 High Flow Valve/Seat, Able To Handle 3 To 9 Gallons Per Minute Fuel Pumps Dual Springs expand operating pressure range while maintaining a low profile and reduced weight. Standard spring supports 30 to 75 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.
Fuel Type: Gasoline
Pressure Range (PSI): 30 To 120 Pounds Per Square Inch
Regulator Type: Bypass
Gauge Port: No
Inlet Attachment: Female Threads
Inlet Quantity: Dual
Inlet Size: 5/8 Inch (-10 AN)
Outlet Attachment: Female Threads
Outlet Quantity: Dual
Outlet Size: 5/8 Inch (-10 AN)
Shape: Rectangular
Includes Fittings: No
Includes Mounting Brackets: Yes
Return Port Size: 5/8 Inch (-10 AN)
Color: Black
Material: Aluminum
Features
- Designed For Use With Eliminator, Pro-Pump And Dual A1000 Fuel Systems
- Compact, 2-Port Body
- 0.313 High Flow Valve/Seat, Able To Handle 3 To 9 Gallons Per Minute Fuel Pumps
- Dual Springs Expand Operating Pressure Range While Maintaining A Low Profile And Reduced Weight
- Standard Spring Supports 30 To 75 PSI Base Fuel Pressure
- Supports Vacuum And Boost Reference On A 1:1 Ratio With PSI
- Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13134 | |
Color | Black |
Fuel Type | Gasoline |
Gauge Port | No |
Includes Fittings | No |
Includes Mounting Brackets | Yes |
Inlet Attachment | Female Threads |
Inlet Quantity | Dual |
Inlet Size | 5/8 Inch (-10 AN) |
Material | Aluminum |
Outlet Attachment | Female Threads |
Outlet Quantity | Dual |
Outlet Size | 5/8 Inch (-10 AN) |
Pressure Range (PSI) | 30 To 120 Pounds Per Square Inch |
Regulator Type | Bypass |
Return Port Size | 5/8 Inch (-10 AN) |
Shape | Rectangular |
