Aeromotive Fuel System Fuel Pressure Regulator - 13133
Color
Black Top And Orange Base
Fuel Type
Gasoline
Gauge Port
No
Includes Fittings
No
Includes Mounting Brackets
Yes
Inlet Attachment
Female Threads
Inlet Size
1/2 Inch (-8 AN) Or 5/8 Inch (-10 AN)
Material
Aluminum
Outlet Attachment
Female Threads
Outlet Size
1/2 Inch (-8 AN) And 5/8 Inch (-10 AN)
Pressure Range (PSI)
30 To 120 Pounds Per Square Inch
Share this page

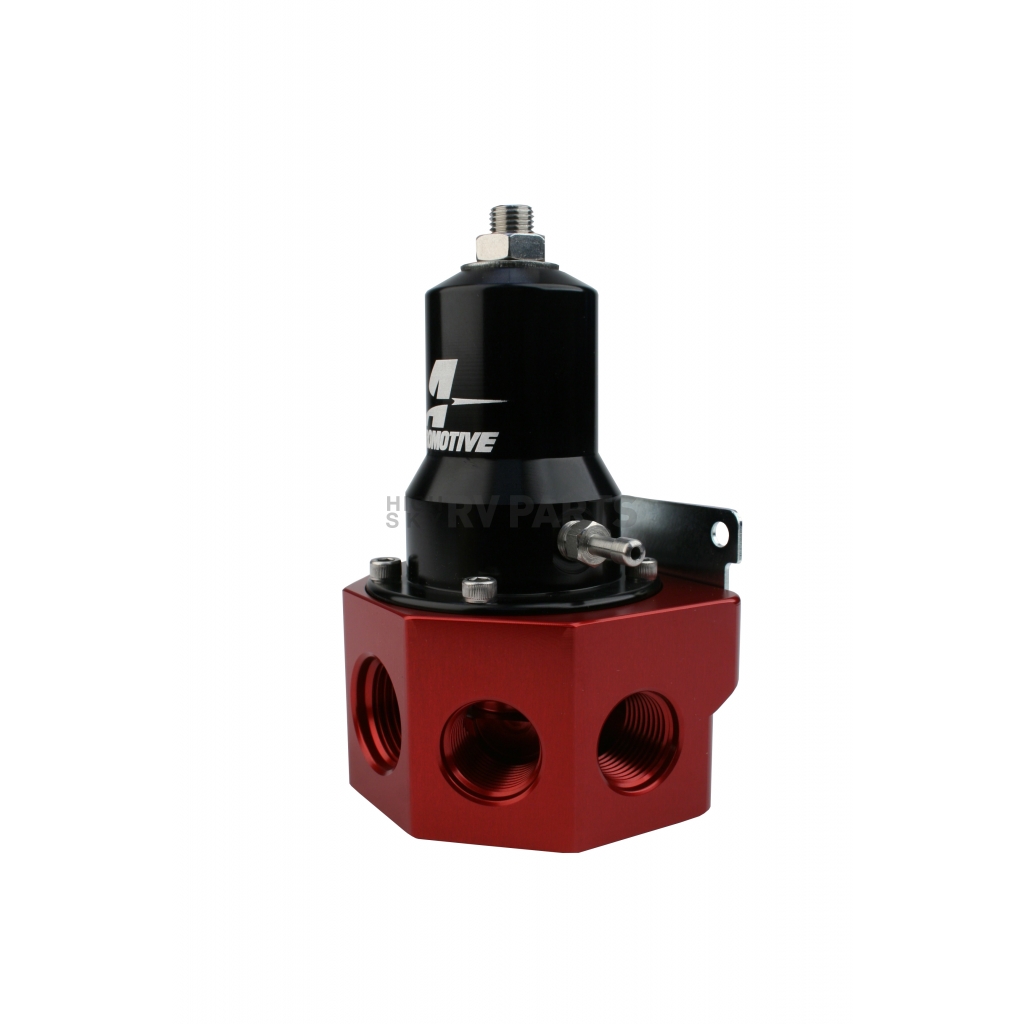

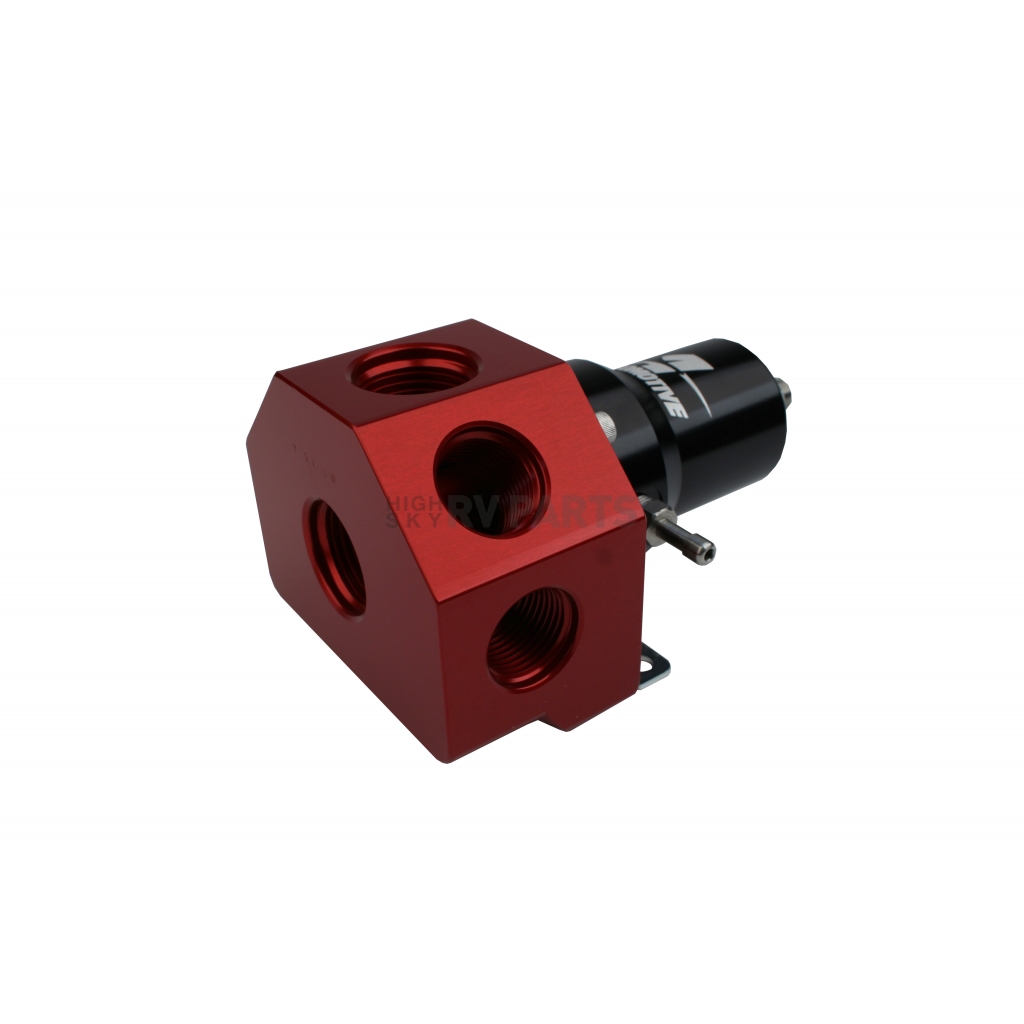

Aeromotive Fuel System Fuel Pressure Regulator
Fuel Pressure Regulator; 30-120 PSI; (4) AN-08 & AN-10 inlets/ AN-10 Bypass; Black; Aluminum
MPN: 13133
Extreme Flow EFI Regulator Designed for use with Belt or Hex Drive Fuel Pumps . Expanded, 5-Port Body with 1- AN-10 plus 4 AN-08 inlet/outlet ports, and one AN-10 return port. 0.500 High Flow Valve/Seat, Able To Handle 7 To 26 Gallons Per Minute Fuel Pumps Dual Springs expand operating pressure range while maintaining a low profile and reduced weight. Standard spring supports 30 to 75 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.
Fuel Type: Gasoline
Pressure Range (PSI): 30 To 120 Pounds Per Square Inch
Regulator Type: Bypass
Gauge Port: No
Inlet Attachment: Female Threads
Inlet Size: 1/2 Inch (-8 AN) Or 5/8 Inch (-10 AN)
Outlet Attachment: Female Threads
Outlet Size: 1/2 Inch (-8 AN) And 5/8 Inch (-10 AN)
Shape: Hexagonal
Includes Fittings: No
Includes Mounting Brackets: Yes
Return Port Size: 5/8 Inch (-10 AN)
Color: Black Top And Orange Base
Material: Aluminum
Features
- Designed For Use With Belt Or Hex Drive Fuel Pumps
- Expanded, 5-Port Body
- 0.500 High Flow Valve/Seat, Able To Handle 7 To 26 Gallons Per Minute Fuel Pumps
- Dual Springs Expand Operating Pressure Range While Maintaining A Low Profile And Reduced Weight
- Standard Spring Supports 30 To 75 PSI Base Fuel Pressure
- Supports Vacuum And Boost Reference On A 1:1 Ratio With PSI
- Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13133 | |
Color | Black Top And Orange Base |
Fuel Type | Gasoline |
Gauge Port | No |
Includes Fittings | No |
Includes Mounting Brackets | Yes |
Inlet Attachment | Female Threads |
Inlet Size | 1/2 Inch (-8 AN) Or 5/8 Inch (-10 AN) |
Material | Aluminum |
Outlet Attachment | Female Threads |
Outlet Size | 1/2 Inch (-8 AN) And 5/8 Inch (-10 AN) |
Pressure Range (PSI) | 30 To 120 Pounds Per Square Inch |
Regulator Type | Bypass |
Return Port Size | 5/8 Inch (-10 AN) |
Shape | Hexagonal |
