Aeromotive Fuel System Fuel Pressure Regulator - 13132
Color
Black
Finish
Anodized
Fuel Type
Gasoline
Gauge Port
No
Includes Fittings
No
Includes Mounting Brackets
Yes
Inlet Attachment
Female O-Ring
Inlet Quantity
2
Inlet Size
5/8 Inch (-10 AN)
Material
Aluminum
Outlet Attachment
Female O-Ring
Share this page

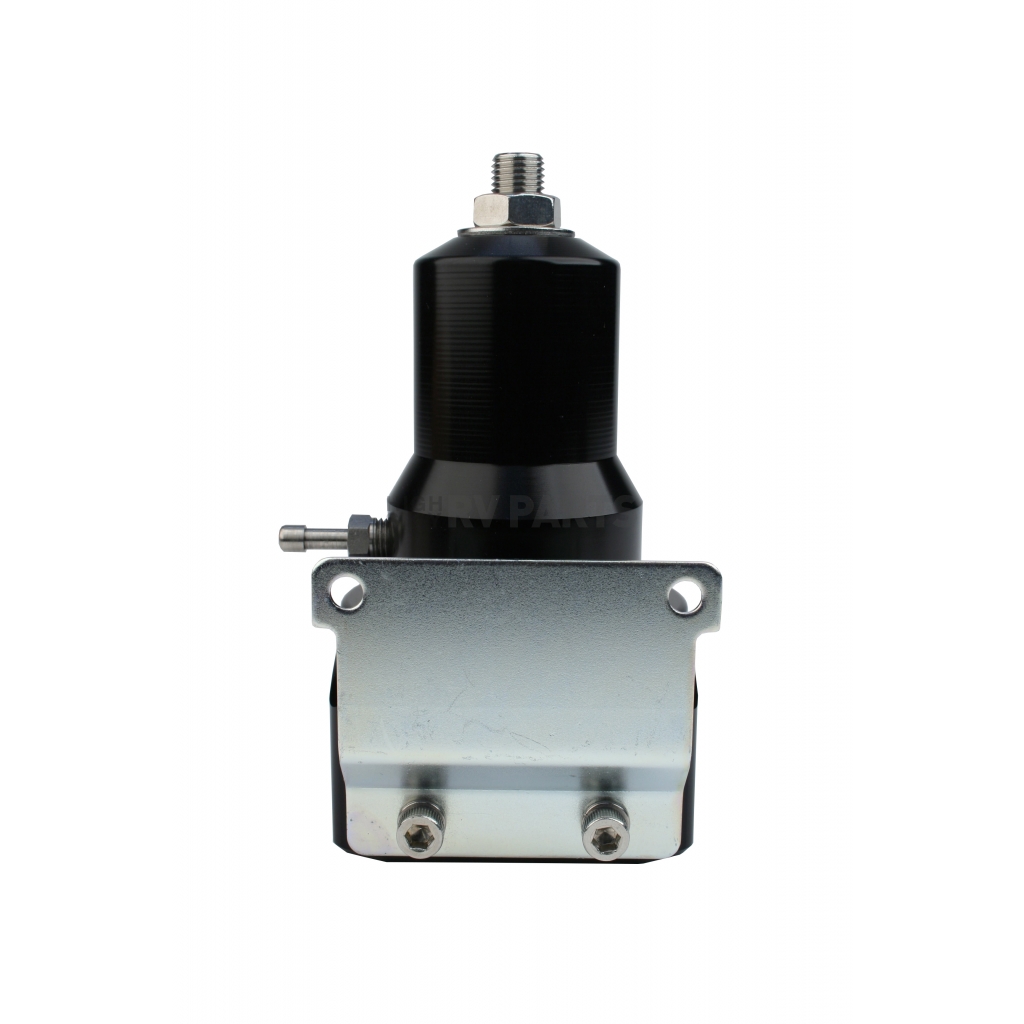

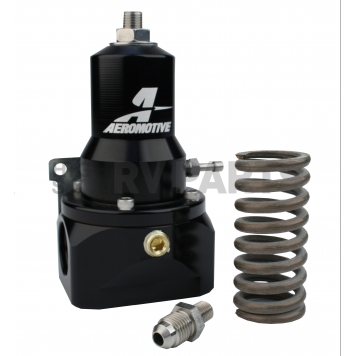

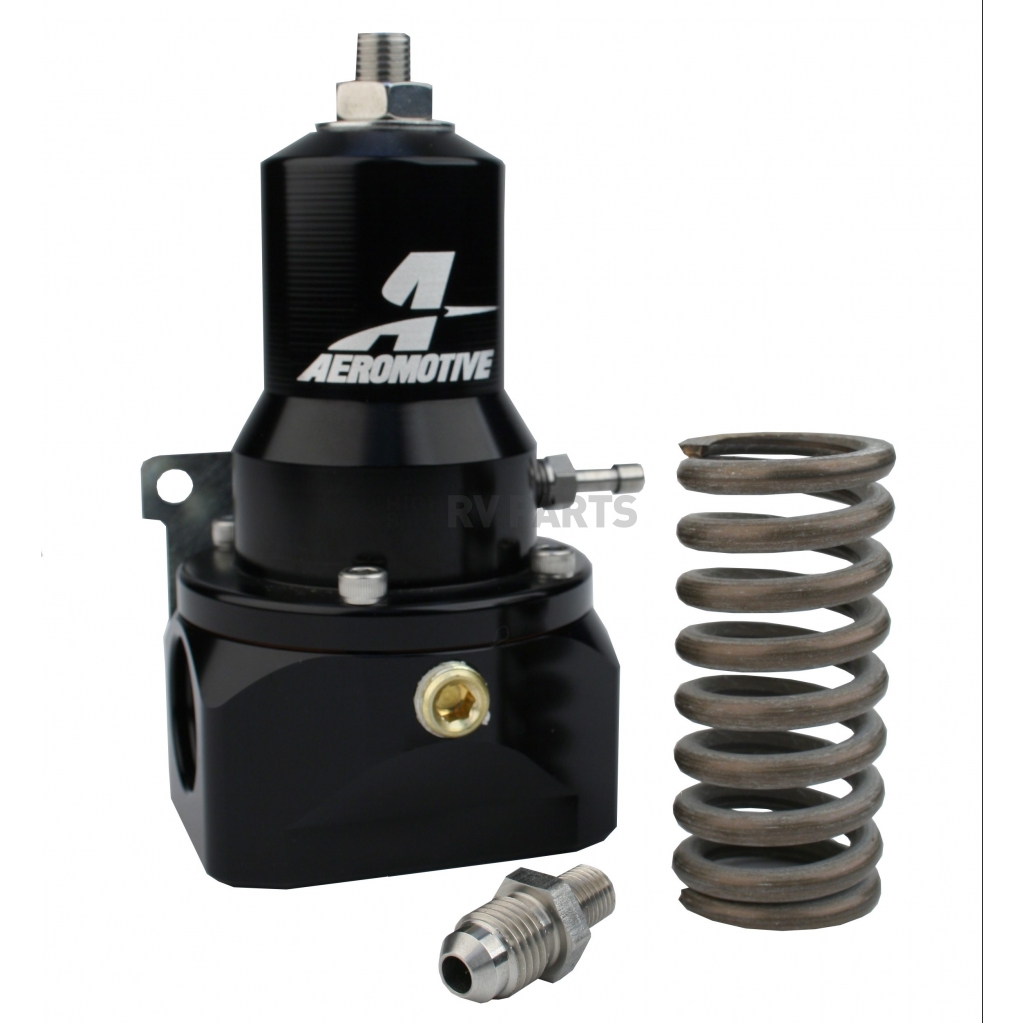

Aeromotive Fuel System Fuel Pressure Regulator
Fuel Pressure Regulator; 30-120 PSI; Dual AN-10 Inlet Outlet Ports/ (1) AN-10 Return Port; Designed For Use With Belt Or Hex Drive Fuel Pumps; Black; Aluminum
MPN: 13132
Extreme Flow EFI Regulator Designed for use with Belt or Hex Drive Fuel Pumps. Compact, 2-Port Body with dual AN-10 inlet/outlet ports and one AN-10 return port. 0.500 High Flow Valve/Seat, Able To Handle 7 To 26 Gallons Per Minute Dual Springs expand operating pressure range while maintaining a low profile and reduced weight. Standard spring supports 30 to 75 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.
Fuel Type: Gasoline
Pressure Range (PSI): 30 To 120 Pounds Per Square Inch
Regulator Location: Inline
Regulator Type: EFI
Gauge Port: No
Inlet Attachment: Female O-Ring
Inlet Quantity: 2
Inlet Size: 5/8 Inch (-10 AN)
Outlet Attachment: Female O-Ring
Outlet Quantity: 2
Outlet Size: 5/8 Inch (-10 AN)
Shape: Square
Includes Fittings: No
Includes Mounting Brackets: Yes
Return Port Size: 5/8 Inch (-10 AN)
Finish: Anodized
Color: Black
Material: Aluminum
Features
- Designed For Use With Belt Or Hex Drive Fuel Pumps
- Compact, 2-Port Body
- 0.500 High Flow Valve/Seat, Able To Handle 7 To 26 Gallons Per Minute
- Dual Springs Expand Operating Pressure Range While Maintaining A Low Profile And Reduced Weight
- Standard Spring Supports 30 To 75 PSI Base Fuel Pressure
- Supports Vacuum And Boost Reference On A 1:1 Ratio With PSI
- Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13132 | |
Color | Black |
Finish | Anodized |
Fuel Type | Gasoline |
Gauge Port | No |
Includes Fittings | No |
Includes Mounting Brackets | Yes |
Inlet Attachment | Female O-Ring |
Inlet Quantity | 2 |
Inlet Size | 5/8 Inch (-10 AN) |
Material | Aluminum |
Outlet Attachment | Female O-Ring |
Outlet Quantity | 2 |
Outlet Size | 5/8 Inch (-10 AN) |
Pressure Range (PSI) | 30 To 120 Pounds Per Square Inch |
Regulator Location | Inline |
Regulator Type | EFI |
Return Port Size | 5/8 Inch (-10 AN) |
Shape | Square |
