Aeromotive Fuel System Fuel Pressure Regulator - 13129
Color
Black
Finish
Anodized
Fuel Type
Gasoline
Gauge Port
Yes
Includes Fittings
No
Includes Mounting Brackets
Yes
Inlet Attachment
O-Ring Boss
Inlet Quantity
2
Inlet Size
3/8 Inch (-6 AN)
Material
Aluminum
Outlet Attachment
O-Ring Boss
Share this page

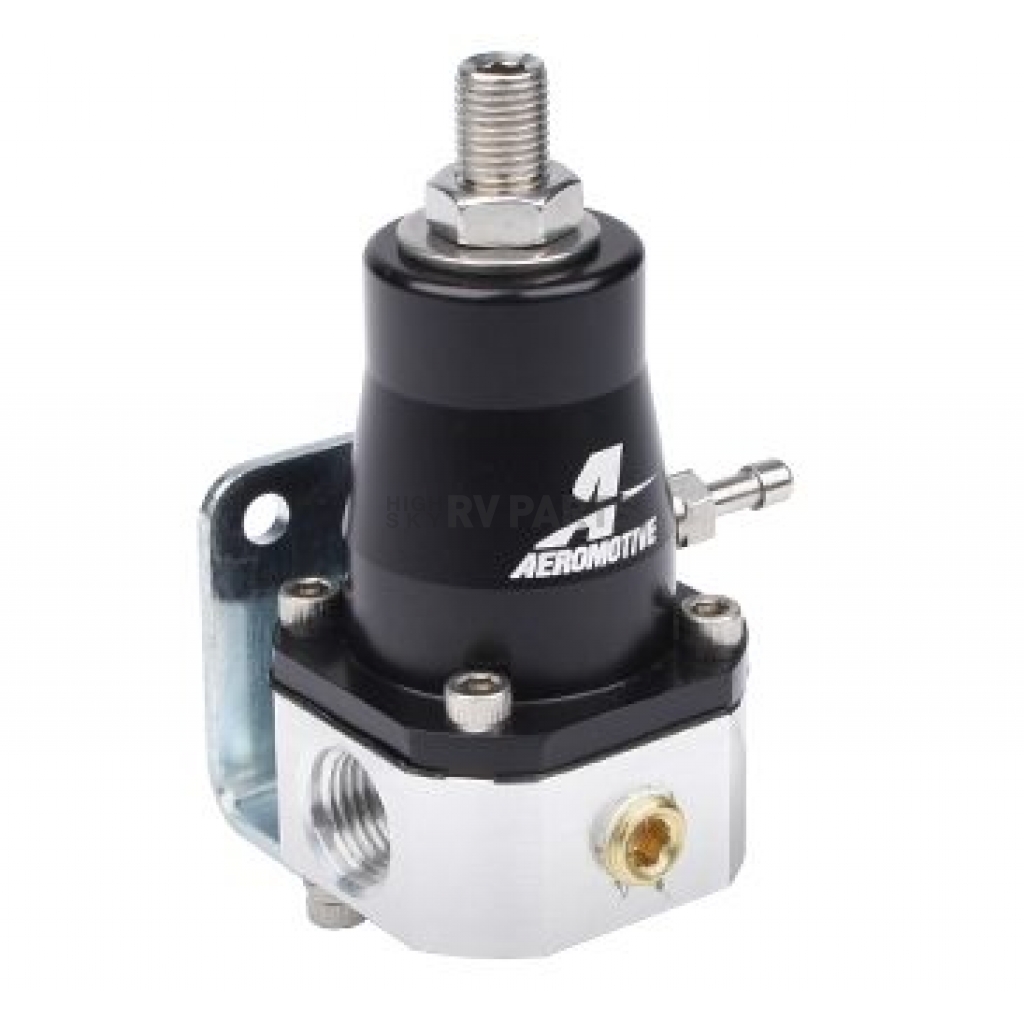

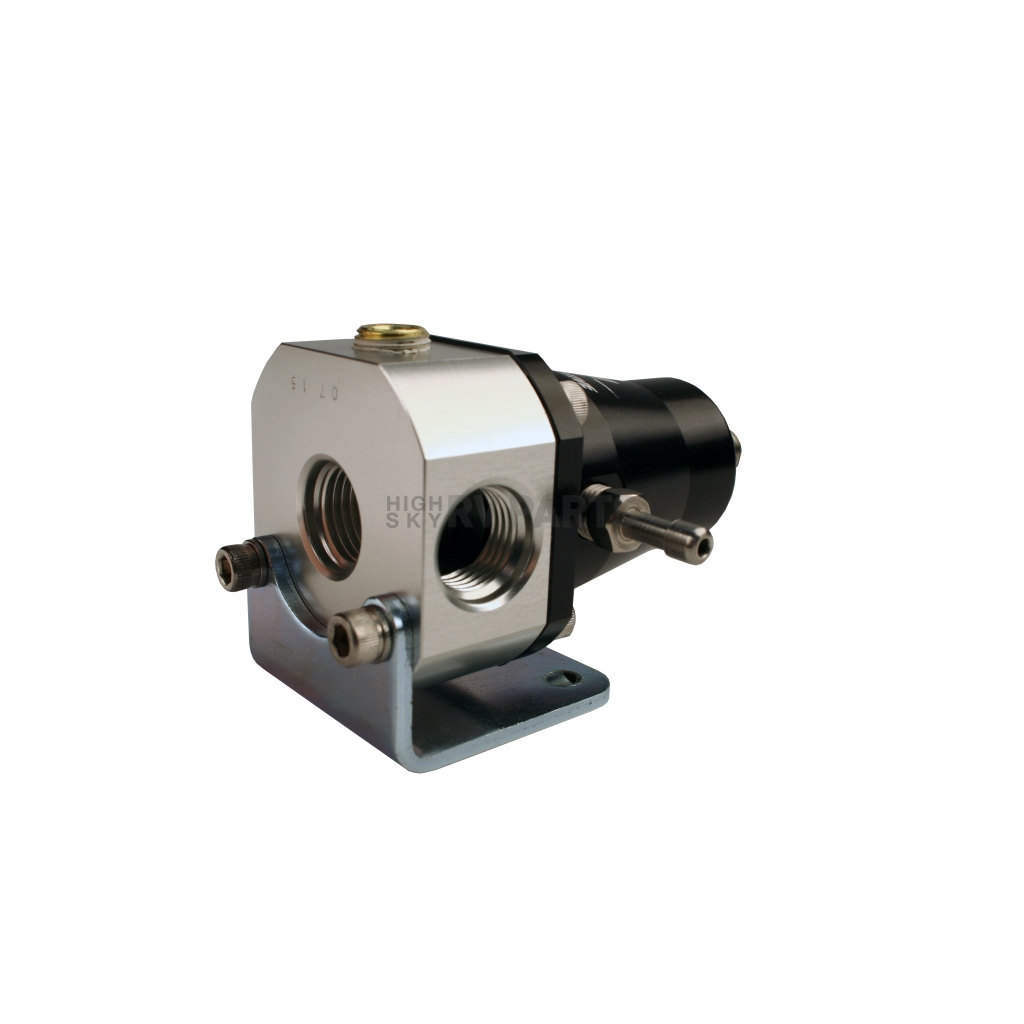

Aeromotive Fuel System Fuel Pressure Regulator
Fuel Pressure Regulator; 30 PSI To 70 PSI; Aluminum
MPN: 13129
This EFI Bypass Regulator encompasses features and benefits only found on Aeromotive regulators and in a new smaller and lighter package. Capable of supporting applications up to 1000 Horsepower, the EFI Bypass Regulator can handle high-flow EFI fuel pumps and the most aggressive street machines; especially those looking for a cleaner, lighter solution where performance is critical or where space is a premium.
Fuel Type: Gasoline
Pressure Range (PSI): 30 To 70 Pounds Per Square Inch
Regulator Location: Inline
Regulator Type: Return
Gauge Port: Yes
Inlet Attachment: O-Ring Boss
Inlet Quantity: 2
Inlet Size: 3/8 Inch (-6 AN)
Outlet Attachment: O-Ring Boss
Outlet Quantity: 2
Outlet Size: 3/8 Inch (-6 AN)
Shape: Square
Includes Fittings: No
Includes Mounting Brackets: Yes
Return Port Size: 3/8 Inch (-6 AN)
Finish: Anodized
Color: Black
Material: Aluminum
Features
- Base Pressure Adjustable From 30 To 70 PSI
- Fuel Pressure Rises On A 1:1 Ratio With Boost
- Provides Two ORB-06 Inlet/Outlet Ports And One ORB-06 Return Port
- Vacuum Boost Port
- CNC Machined 6061-T6 Billet Aluminum Construction
- Stainless Steel Mounting Bracket
- Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13129 | |
Color | Black |
Finish | Anodized |
Fuel Type | Gasoline |
Gauge Port | Yes |
Includes Fittings | No |
Includes Mounting Brackets | Yes |
Inlet Attachment | O-Ring Boss |
Inlet Quantity | 2 |
Inlet Size | 3/8 Inch (-6 AN) |
Material | Aluminum |
Outlet Attachment | O-Ring Boss |
Outlet Quantity | 2 |
Outlet Size | 3/8 Inch (-6 AN) |
Pressure Range (PSI) | 30 To 70 Pounds Per Square Inch |
Regulator Location | Inline |
Regulator Type | Return |
Return Port Size | 3/8 Inch (-6 AN) |
Shape | Square |
