Aeromotive Fuel System Fuel Pressure Regulator - 13109
Color
Red
Finish
Anodized
Fuel Type
Gasoline
Gauge Port
Yes
Includes Fittings
Yes
Includes Mounting Brackets
Yes
Inlet Attachment
Male Threads
Inlet Quantity
1
Inlet Size
3/8 Inch (-6 AN)
Material
Aluminum
Outlet Attachment
Male Threads
Share this page

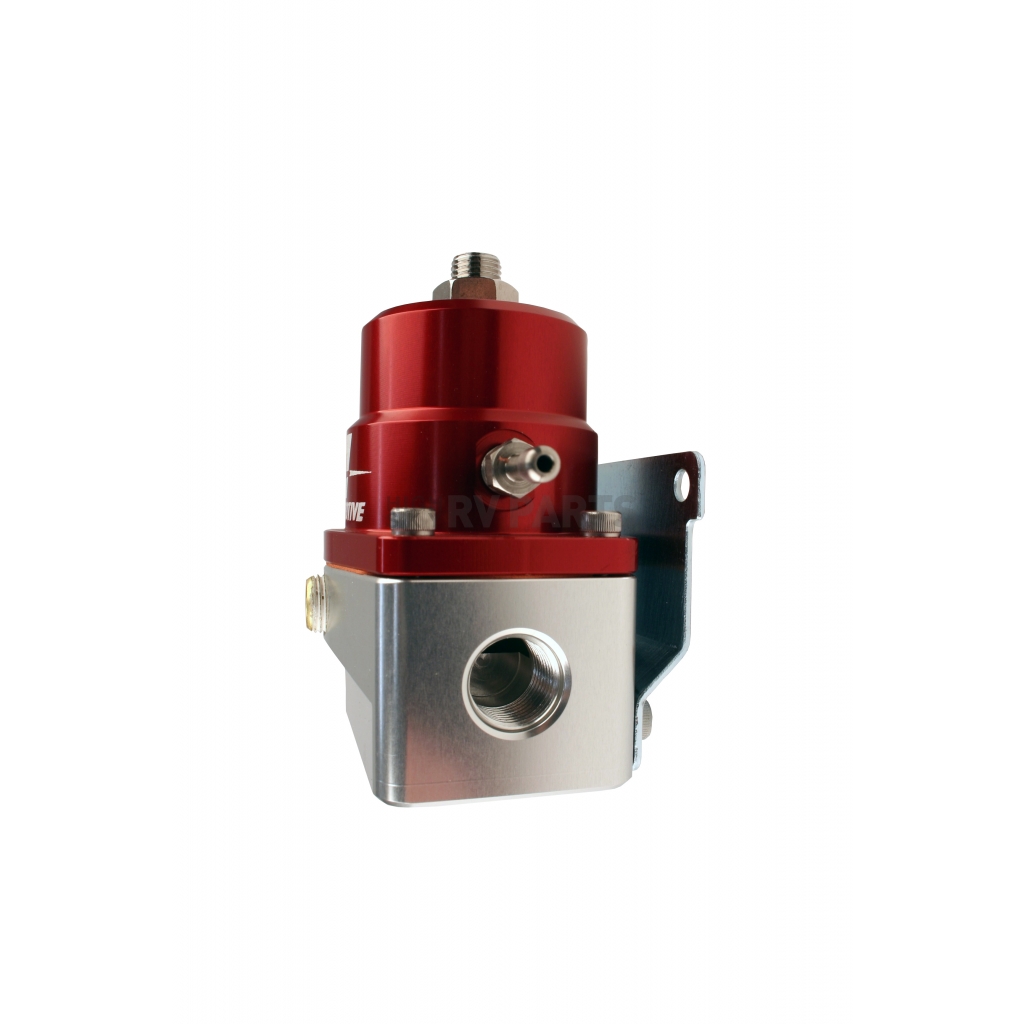

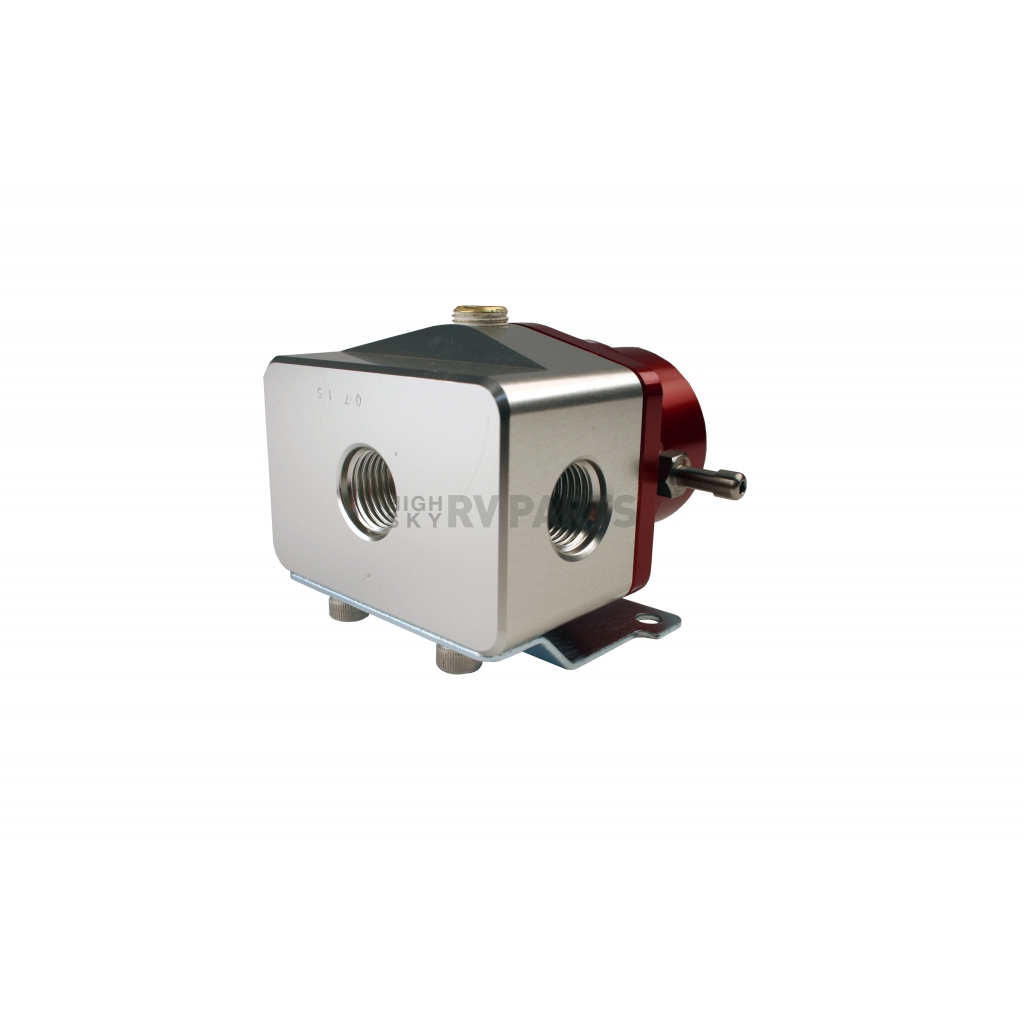

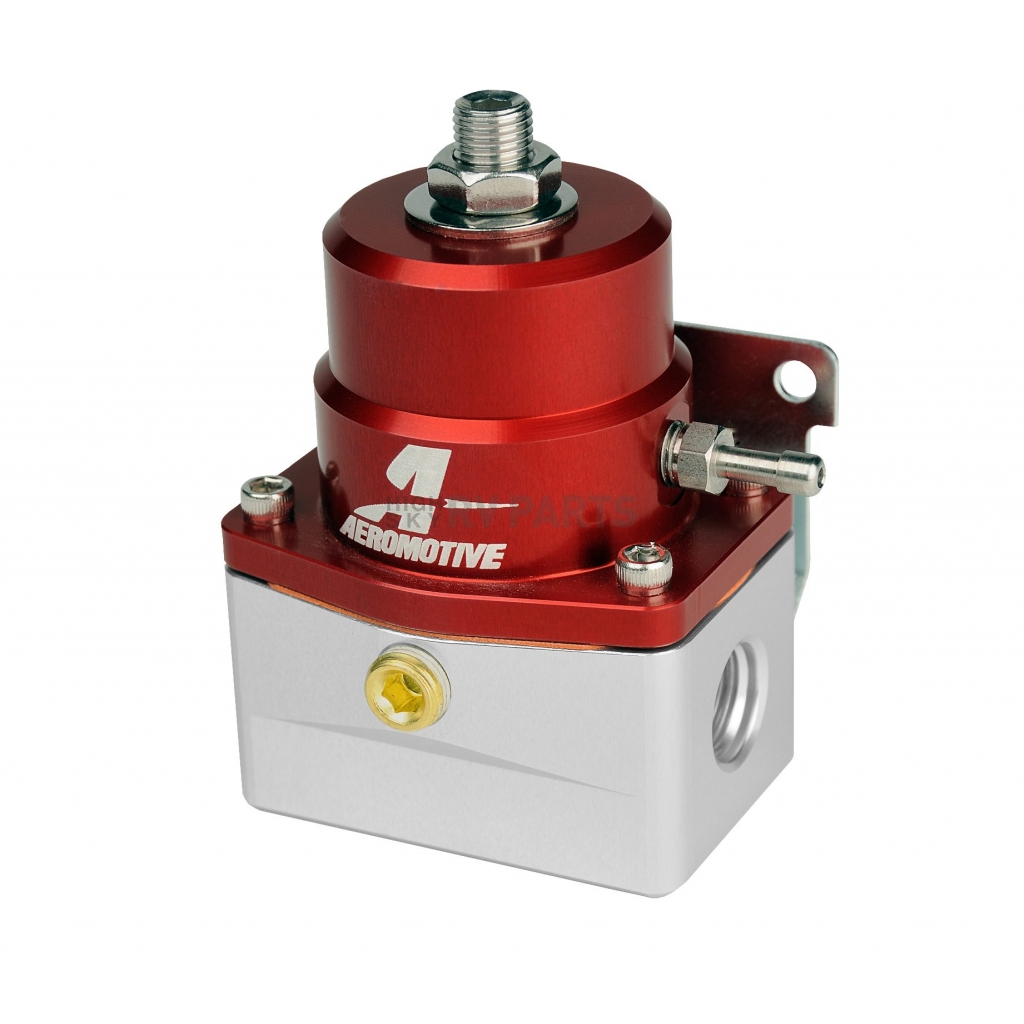

Aeromotive Fuel System Fuel Pressure Regulator
Fuel Pressure Regulator; 40 PSI To 75 PSI
MPN: 13109
Performance electronic fuel injection regulator designed for medium to high Horsepower applications. This regulators features Aeromotive's high flow design, superb pressure control and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance Electronic Fuel Injection regulator in the world!
Fuel Type: Gasoline
Pressure Range (PSI): 40 To 75 Pounds Per Square Inch
Regulator Location: Fuel Rail Mount
Regulator Type: Return
Gauge Port: Yes
Inlet Attachment: Male Threads
Inlet Quantity: 1
Inlet Size: 3/8 Inch (-6 AN)
Outlet Attachment: Male Threads
Outlet Quantity: 1
Outlet Size: 3/8 Inch (-6 AN)
Shape: Square
Includes Fittings: Yes
Includes Mounting Brackets: Yes
Return Port Size: 3/8 Inch (-6 AN)
Finish: Anodized
Color: Red
Material: Aluminum
Features
- Adjustable Base Pressure From 40 To 75 PSI
- Gasoline And Alcohol Compatible
- Fuel Pressure Rises On A 1:1 Ratio With Boost
- 1/8 Inch NPT Gauge Port
- O-Ring Boss-10 Inlet Ports And O-Ring Boss-06 Return Port
- Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13109 | |
Color | Red |
Finish | Anodized |
Fuel Type | Gasoline |
Gauge Port | Yes |
Includes Fittings | Yes |
Includes Mounting Brackets | Yes |
Inlet Attachment | Male Threads |
Inlet Quantity | 1 |
Inlet Size | 3/8 Inch (-6 AN) |
Material | Aluminum |
Outlet Attachment | Male Threads |
Outlet Quantity | 1 |
Outlet Size | 3/8 Inch (-6 AN) |
Pressure Range (PSI) | 40 To 75 Pounds Per Square Inch |
Regulator Location | Fuel Rail Mount |
Regulator Type | Return |
Return Port Size | 3/8 Inch (-6 AN) |
Shape | Square |
