Aeromotive Fuel System Fuel Pressure Regulator - 13105
Color
Black Top And Red Base
Finish
Anodized
Fuel Type
Gasoline
Gauge Port
Yes
Includes Fittings
No
Includes Mounting Brackets
Yes
Inlet Attachment
Male Threads
Inlet Quantity
Single
Inlet Size
3/8 Inch (-6 AN)
Material
Aluminum
Outlet Attachment
Male Threads
Share this page

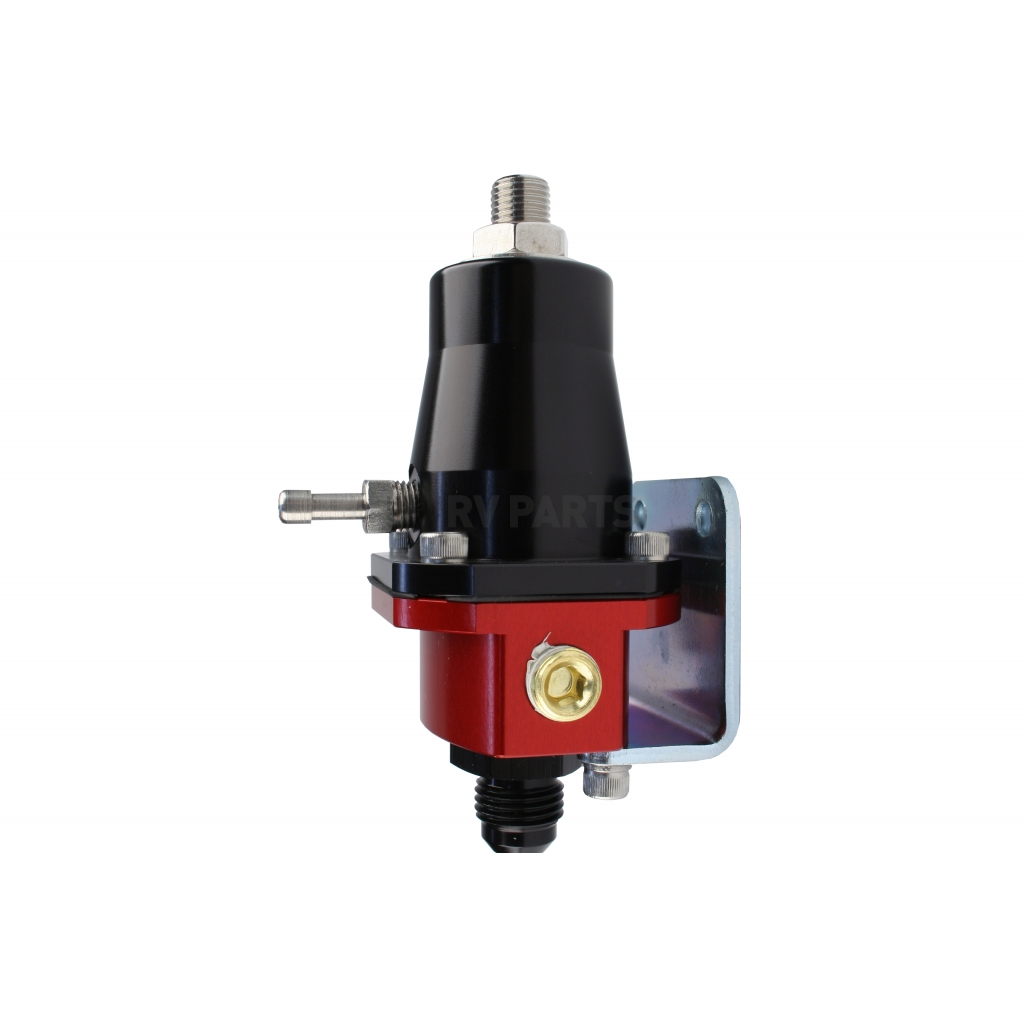

Aeromotive Fuel System Fuel Pressure Regulator
Fuel Pressure Regulator; 30 PSI To 70 PSI
MPN: 13105
Big performance in a small package. The compact electronic fuel injection regulator is designed for applications producing up to 1,000 Horsepower where space is at a premium. Ideal for electronic fuel injection fuel delivery systems that are limited to one regulator inlet port.
Fuel Type: Gasoline
Pressure Range (PSI): 30 To 70 Pounds Per Square Inch
Regulator Location: Inline
Regulator Type: Return
Gauge Port: Yes
Inlet Attachment: Male Threads
Inlet Quantity: Single
Inlet Size: 3/8 Inch (-6 AN)
Outlet Attachment: Male Threads
Outlet Quantity: Single
Outlet Size: 3/8 Inch (-6 AN)
Includes Fittings: No
Includes Mounting Brackets: Yes
Finish: Anodized
Color: Black Top And Red Base
Material: Aluminum
Features
- Adjustable Base Pressure From 30 To 70 PSI
- Equipped With Removable AN-6 Male Fittings For Inlet And Outlet Ports, Eliminates The Need To Buy Additional Fittings And O-Rings
- Dedicated 1/8 Inch NPT Gauge Port Located Opposite The Side Inlet
- Fuel Pressure Rises On A 1:1 Ratio When Referencing Boost
- Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Pressure Regulator - 13105 | |
Color | Black Top And Red Base |
Finish | Anodized |
Fuel Type | Gasoline |
Gauge Port | Yes |
Includes Fittings | No |
Includes Mounting Brackets | Yes |
Inlet Attachment | Male Threads |
Inlet Quantity | Single |
Inlet Size | 3/8 Inch (-6 AN) |
Material | Aluminum |
Outlet Attachment | Male Threads |
Outlet Quantity | Single |
Outlet Size | 3/8 Inch (-6 AN) |
Pressure Range (PSI) | 30 To 70 Pounds Per Square Inch |
Regulator Location | Inline |
Regulator Type | Return |
