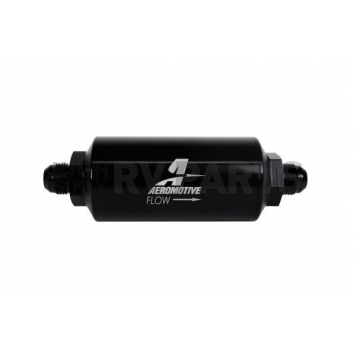

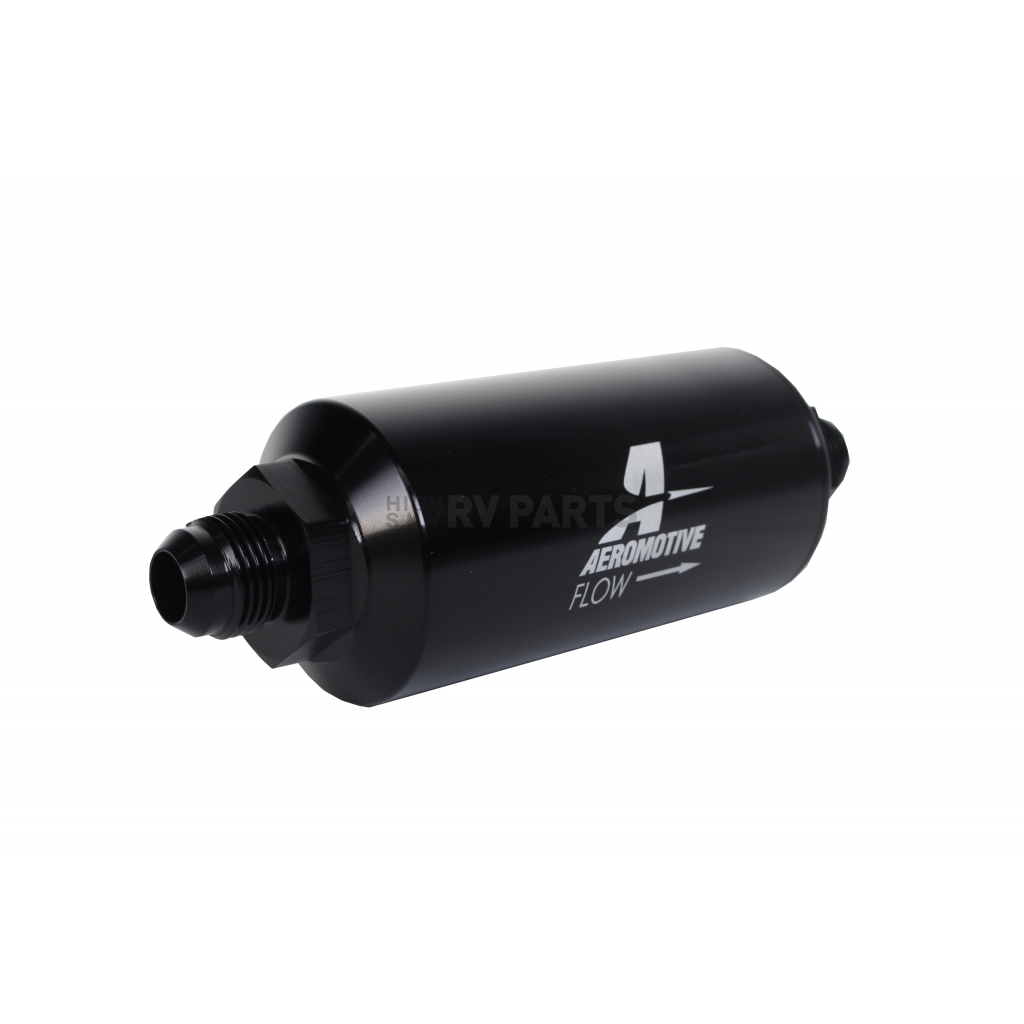

Aeromotive Fuel System Fuel Filter - 12377
Color
Black
Diameter (IN)
2 Inch
Element Material
Cellulose
Estimated Install Time (Hours)
0.5
Finish
Anodized
Inlet Connection Size
1/2 Inch (-8 AN)
Inlet Connection Type
Male Threads
Length (IN)
Not Applicable
Location
In-Line
Material
Aluminum
Micron Rating
10 Micron
Share this page
Aeromotive Fuel System Fuel Filter
Fuel Filter; Male AN-08 Cellulose 10 Micron In-Line Fuel Filter; Male AN-08 Ports; 2 Inch Outside Diameter; High-Flow 10 Micron Cellulose Replaceable Filter; Black Anodized Finish; Billet Aluminum; Single
MPN: 12377
AN-08, 10 micron cellulose element, black anodize finish An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 to 3,000 plus Horsepower applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you’ve come to expect from all Aeromotive components.
Type: Element
Location: In-Line
Inlet Connection Size: 1/2 Inch (-8 AN)
Inlet Connection Type: Male Threads
Outlet Connection Size: 1/2 Inch (-8 AN)
Outlet Connection Type: Male Threads
Diameter (IN): 2 Inch
Length (IN): Not Applicable
Width (IN): Not Applicable
Micron Rating: 10 Micron
Element Material: Cellulose
Finish: Anodized
Color: Black
Material: Aluminum
With Gasket: No
With Hose: No
With Mounting Hardware: No
Estimated Install Time (Hours): 0.5
Features
- CNC-Machined From 6061-T6 Aircraft Aluminum
- Bright Dip Black Anodized Finish For A Corrosion Resistant, Show Car Quality Appearance
- High-Flow, 10-Micron Cellulose Replaceable Element
- Flows 2,000 Pounds/ Hour With A Pressure Drop Of Less Than 1 PSI
- Feature An O-Ring For Positive Sealing In High Pressure Applications
- Offer Unmatched Flow, Ease Of Installation And Maintenance
- Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Filter - 12377 | |
Color | Black |
Diameter (IN) | 2 Inch |
Element Material | Cellulose |
Estimated Install Time (Hours) | 0.5 |
Finish | Anodized |
Inlet Connection Size | 1/2 Inch (-8 AN) |
Inlet Connection Type | Male Threads |
Length (IN) | Not Applicable |
Location | In-Line |
Material | Aluminum |
Micron Rating | 10 Micron |
Outlet Connection Size | 1/2 Inch (-8 AN) |
Outlet Connection Type | Male Threads |
Type | Element |
Width (IN) | Not Applicable |
With Gasket | No |
With Hose | No |
With Mounting Hardware | No |
