Aeromotive Fuel System Fuel Filter - 12335
Color
Red
Diameter (IN)
2 Inch
Element Material
Stainless Steel
Estimated Install Time (Hours)
0.5
Finish
Anodized
Fuel Type
Gasoline/ Ethanol/ Methanol
Height (IN)
5-1/2 Inch
Inlet Connection Size
5/8 Inch (-10 AN)
Inlet Connection Type
Female Threads
Length (IN)
Not Applicable
Location
In-Line
Share this page

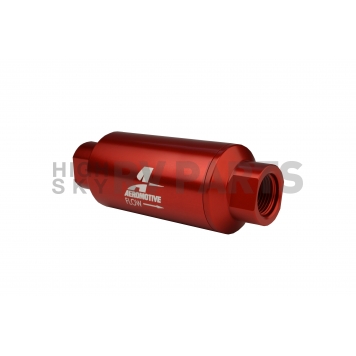

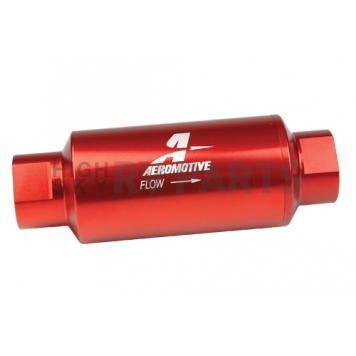

Aeromotive Fuel System Fuel Filter
Fuel Filter; In-line Filter; 10AN; 40 Micron
MPN: 12335
An inexpensive insurance policy to protect your investment. Proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 to 3,000 plus Horsepower applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you’ve come to expect from all Aeromotive components.
Type: Complete Assembly
Location: In-Line
Fuel Type: Gasoline/ Ethanol/ Methanol
Inlet Connection Size: 5/8 Inch (-10 AN)
Inlet Connection Type: Female Threads
Outlet Connection Size: 5/8 Inch (-10 AN)
Outlet Connection Type: Female Threads

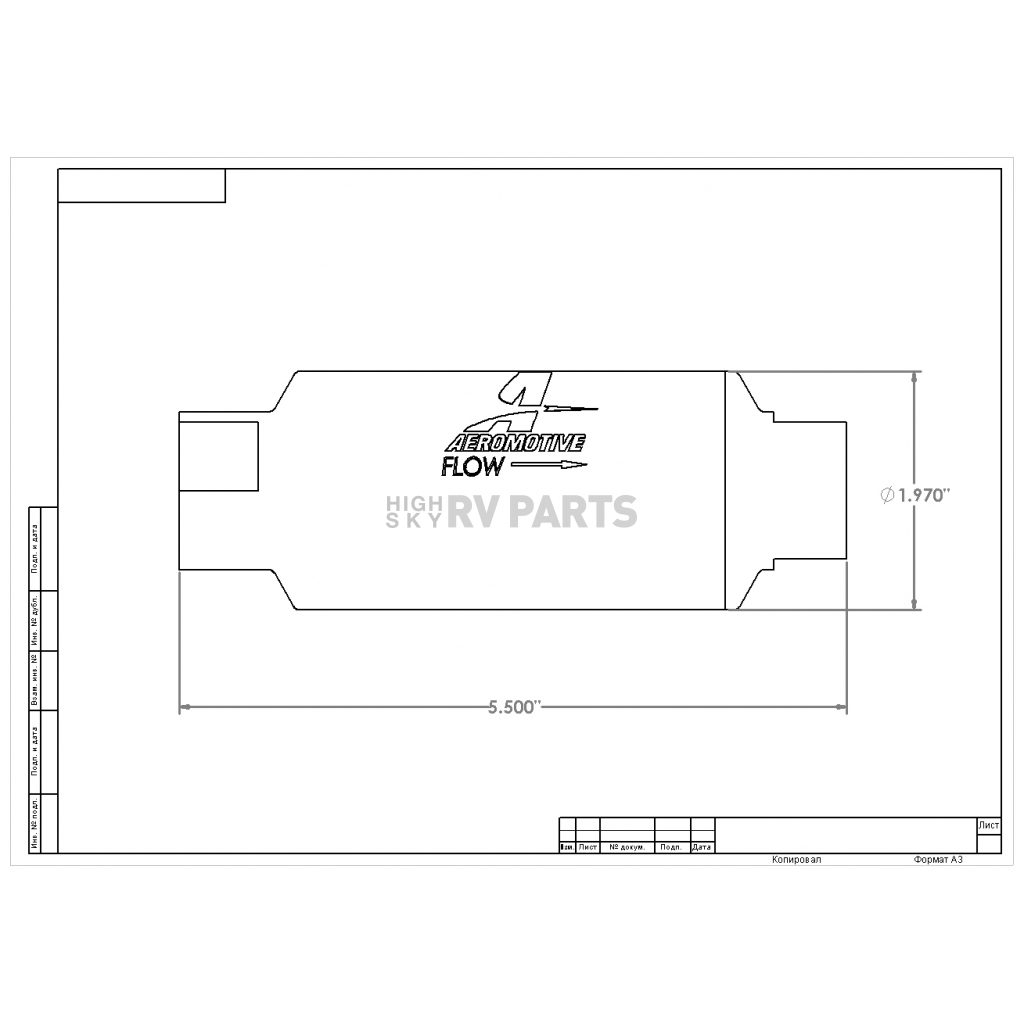

Diameter (IN): 2 Inch
Length (IN): Not Applicable
Width (IN): Not Applicable
Height (IN): 5-1/2 Inch
Micron Rating: 40 Micron
Element Material: Stainless Steel
Finish: Anodized
Color: Red
Material: Aluminum
With Gasket: No
With Hose: No
With Mounting Hardware: No
Estimated Install Time (Hours): 0.5
Features
- Designed To Stand Up To The Destructive Properties Of Alcohol Based Fuels, Including Ethanol And Methanol

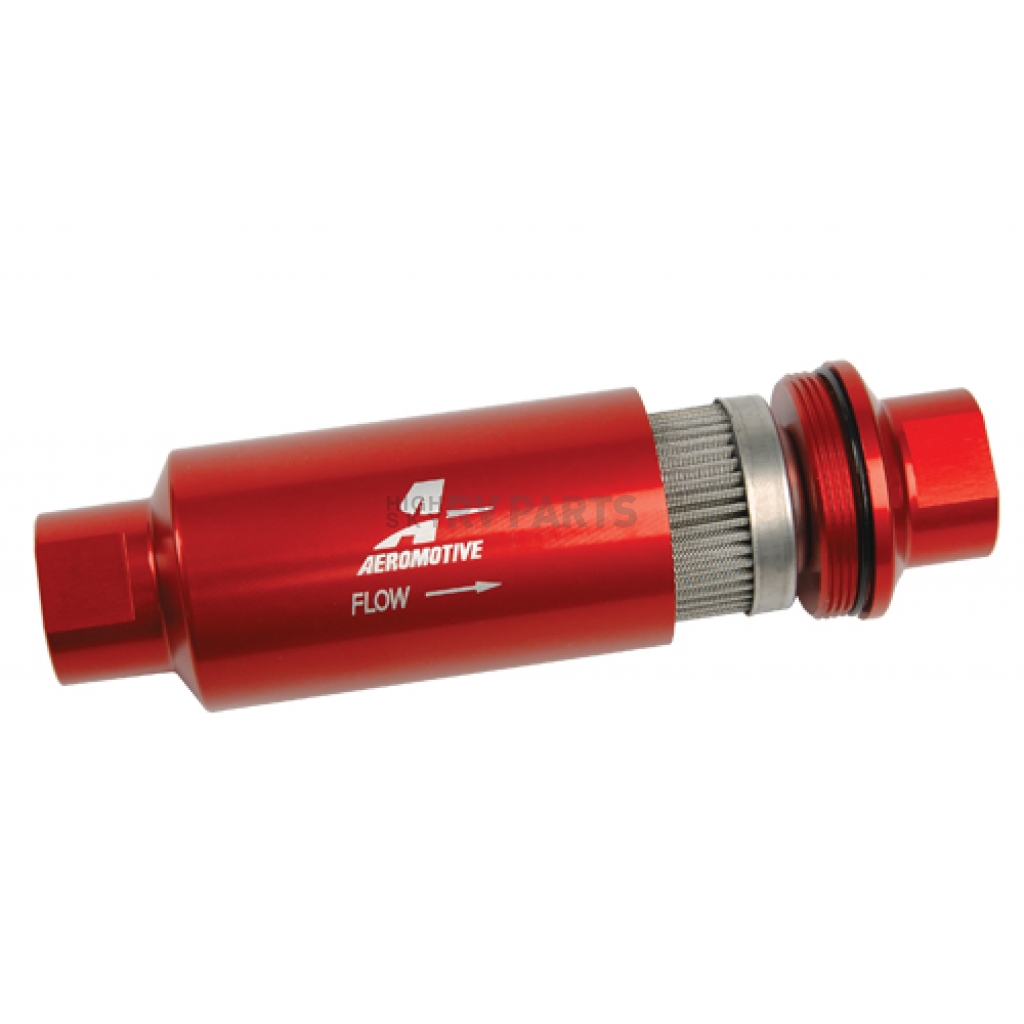

- High Flow, 40 Micron Stainless Steel, Cleanable Element
- O-Ring Boss-10 Ports
- Fittings Available To Adapt These Filters To AN -10, -08 And -06 Line Sizes
- Features An Anodized Bright Dip Red Finish For A Corrosion Resistant, Show Car Quality Appearance
- Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Filter - 12335 | |
Color | Red |
Diameter (IN) | 2 Inch |
Element Material | Stainless Steel |
Estimated Install Time (Hours) | 0.5 |
Finish | Anodized |
Fuel Type | Gasoline/ Ethanol/ Methanol |
Height (IN) | 5-1/2 Inch |
Inlet Connection Size | 5/8 Inch (-10 AN) |
Inlet Connection Type | Female Threads |
Length (IN) | Not Applicable |
Location | In-Line |
Material | Aluminum |
Micron Rating | 40 Micron |
Outlet Connection Size | 5/8 Inch (-10 AN) |
Outlet Connection Type | Female Threads |
Type | Complete Assembly |
Width (IN) | Not Applicable |
With Gasket | No |
With Hose | No |
With Mounting Hardware | No |
