Aeromotive Fuel System Fuel Filter - 12324

Brand: Aeromotive Fuel Aeromotive Fuel
0 reviews
  • Have a product question? Ask us
  • Part Number: 12324
  • Part Location: U.S.
  • Availability: 1 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by May 27
Retail: $225.74
Price: $214.99
You Save: $10.75
Color
Black
Diameter (IN)
2 Inch
Element Material
Stainless Steel
Estimated Install Time (Hours)
0.5
Finish
Anodized
Height (IN)
5-1/2 Inch
Inlet Connection Size
5/8 Inch (-10 AN)
Inlet Connection Type
Female Threads
Length (IN)
Not Applicable
Location
In-Line
Material
Aluminum
Share this page

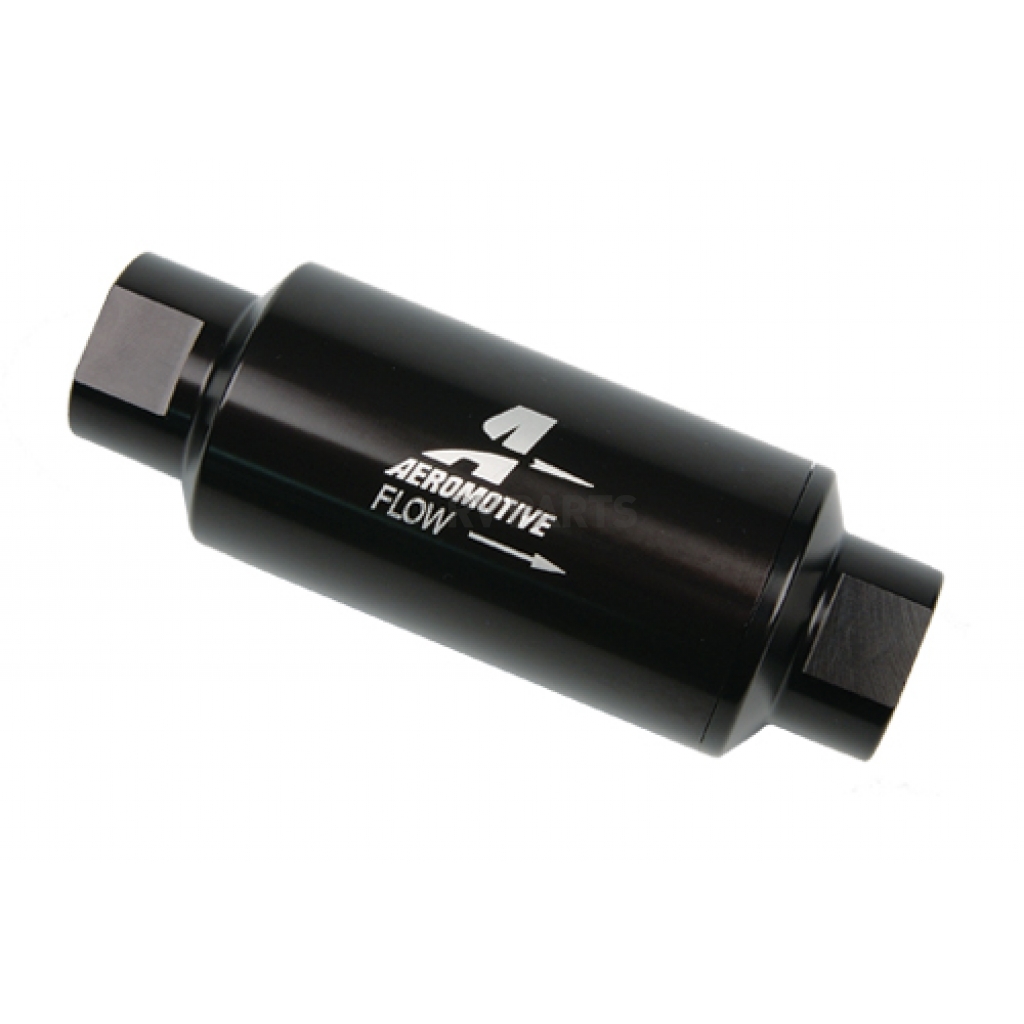

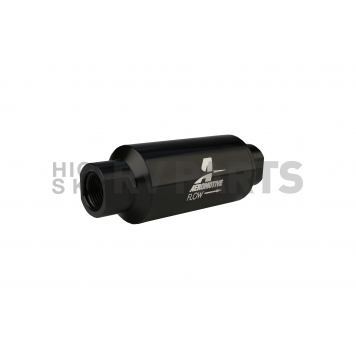

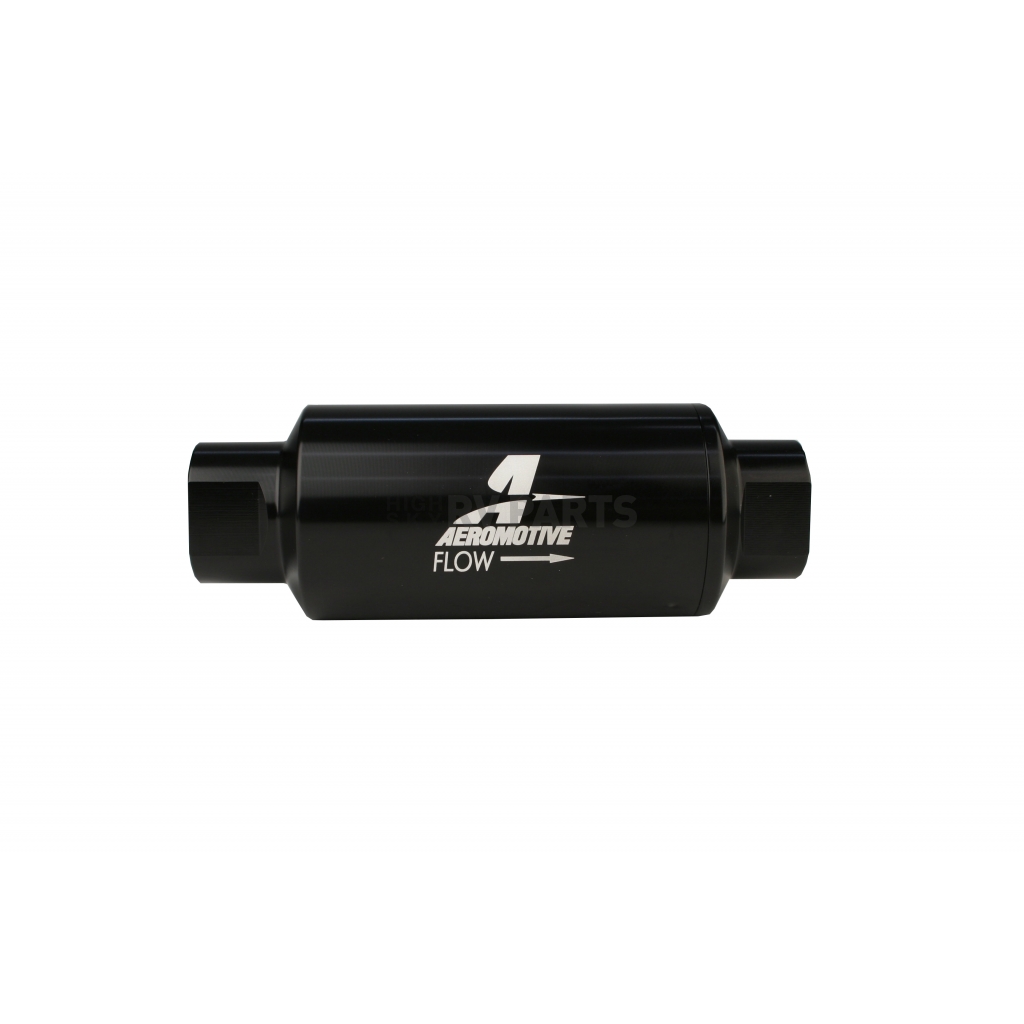

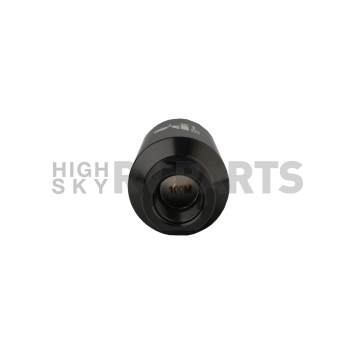

Aeromotive Fuel System Fuel Filter

Fuel Filter; In-line Filter; 10AN; 100 Micron

MPN: 12324

An inexpensive insurance policy to protect your investment. Proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 to 3,000 plus Horsepower applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you’ve come to expect from all Aeromotive components.
Type: Complete Assembly
Location: In-Line
Inlet Connection Size: 5/8 Inch (-10 AN)
Inlet Connection Type: Female Threads
Outlet Connection Size: 5/8 Inch (-10 AN)
Outlet Connection Type: Female Threads
Diameter (IN): 2 Inch
Length (IN): Not Applicable
Width (IN): Not Applicable
Height (IN): 5-1/2 Inch
Micron Rating: 100 Micron
Element Material: Stainless Steel
Finish: Anodized
Color: Black
Material: Aluminum
With Gasket: Yes
With Hose: No
With Mounting Hardware: No
Estimated Install Time (Hours): 0.5

Features

  • High Flow, 100 Micron Stainless Steel (Coarse) Cleanable Element
  • Flows 2,000 Pounds Per Hour With A Pressure Drop Of Less Than 1 PSI
  • O-Ring Boss-10 Ports
  • Fittings Available To Adapt These Filters To AN -10, -08 And -06 Line Sizes
  • All Filter Assemblies Feature An O-Ring For Positive Sealing In High Pressure Applications
  • CNC Machined From 6061-T6 Aircraft Aluminum
  • Bright Dip Black Anodized Finish For A Corrosion Resistant, Show Car Quality Appearance
  • Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Filter - 12324
Color Black
Diameter (IN) 2 Inch
Element Material Stainless Steel
Estimated Install Time (Hours) 0.5
Finish Anodized
Height (IN) 5-1/2 Inch
Inlet Connection Size 5/8 Inch (-10 AN)
Inlet Connection Type Female Threads
Length (IN) Not Applicable
Location In-Line
Material Aluminum
Micron Rating 100 Micron
Outlet Connection Size 5/8 Inch (-10 AN)
Outlet Connection Type Female Threads
Type Complete Assembly
Width (IN) Not Applicable
With Gasket Yes
With Hose No
With Mounting Hardware No
