Aeromotive Fuel System Fuel Filter - 12304
Color
Red
Diameter (IN)
2 Inch
Element Material
Stainless Steel
Estimated Install Time (Hours)
0.5
Finish
Anodized
Height (IN)
5-1/2 Inch
Inlet Connection Size
5/8 Inch (-10 AN)
Inlet Connection Type
Female Threads
Length (IN)
Not Applicable
Location
In-Line
Material
Aluminum
Share this page

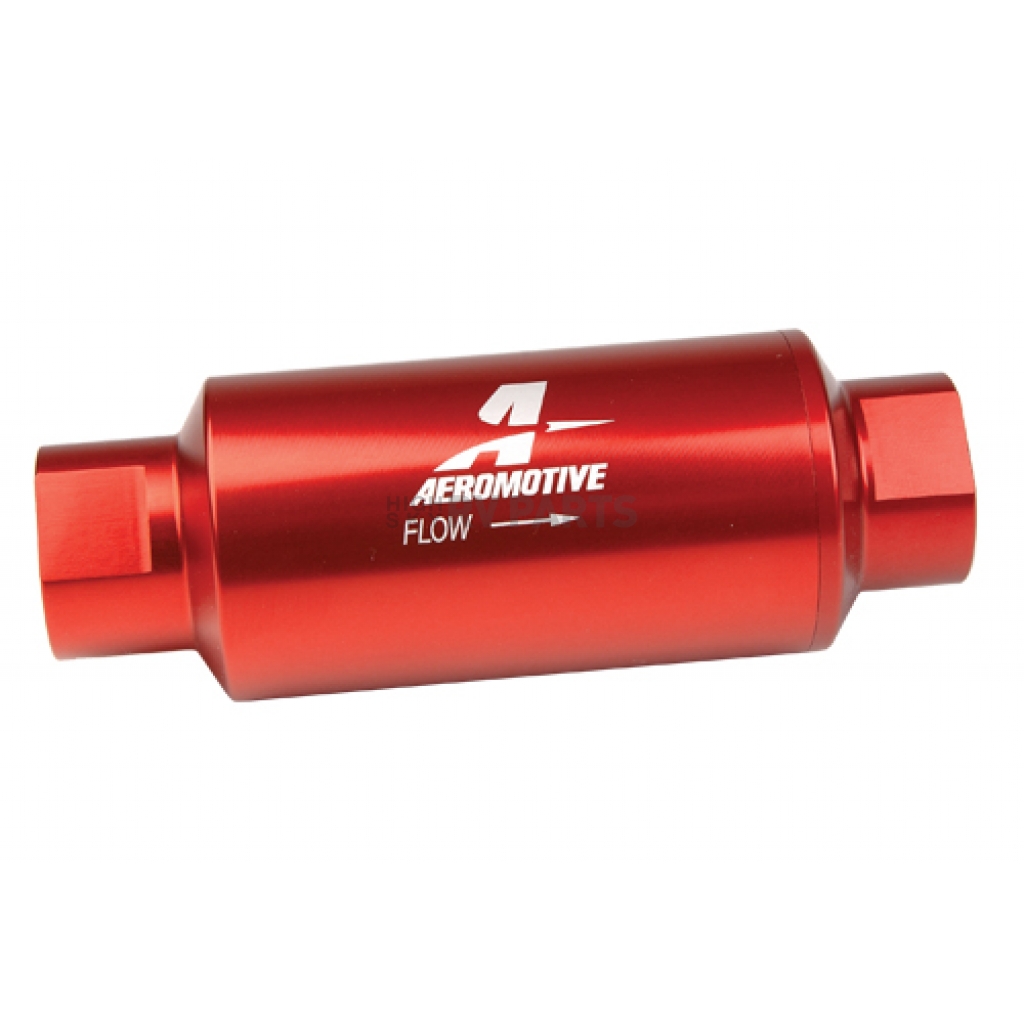

Aeromotive Fuel System Fuel Filter
Fuel Filter; In-line Filter; 10AN; 100 Micron
MPN: 12304
An inexpensive insurance policy to protect your investment. Proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 to 3,000 plus Horsepower applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you’ve come to expect from all Aeromotive components.
Type: Complete Assembly
Location: In-Line
Inlet Connection Size: 5/8 Inch (-10 AN)
Inlet Connection Type: Female Threads
Outlet Connection Size: 5/8 Inch (-10 AN)
Outlet Connection Type: Female Threads

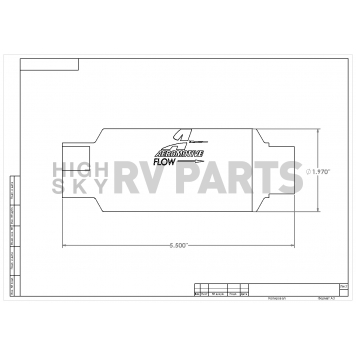

Diameter (IN): 2 Inch
Length (IN): Not Applicable
Width (IN): Not Applicable
Height (IN): 5-1/2 Inch
Micron Rating: 100 Micron
Element Material: Stainless Steel
Finish: Anodized
Color: Red
Material: Aluminum
With Gasket: Yes
With Hose: No
With Mounting Hardware: No
Estimated Install Time (Hours): 0.5
Features

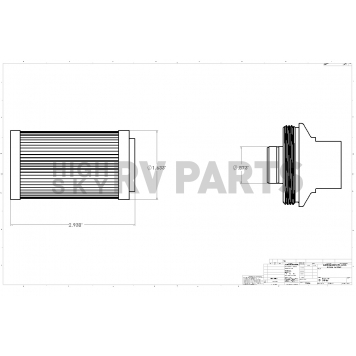

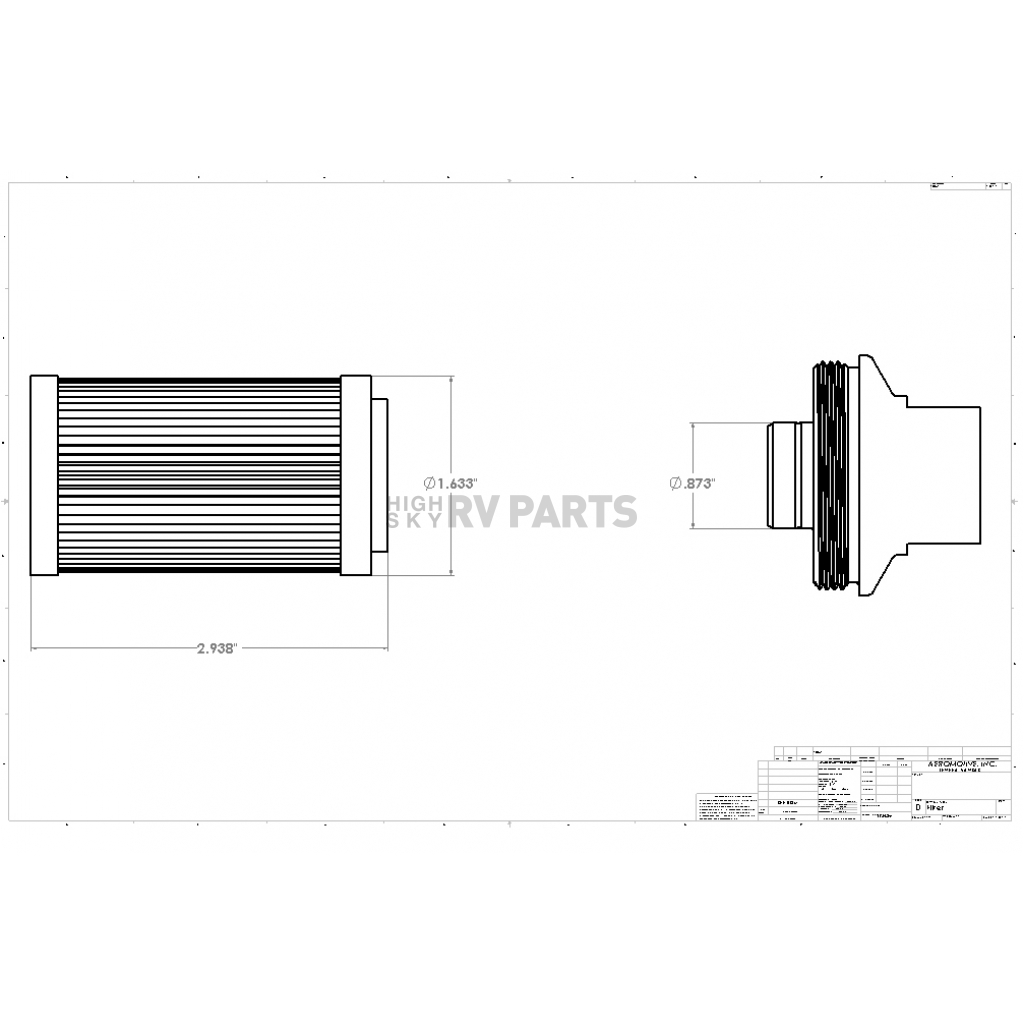

- High Flow, 100 Micron Stainless Steel (Coarse) Cleanable Element
- Flows 2,000 Pounds Per Hour With A Pressure Drop Of Less Than 1 PSI
- O-Ring Boss-10 Ports
- Fittings Available To Adapt These Filters To AN -10, -08 And -06 Line Sizes
- All Filter Assemblies Feature An O-Ring For Positive Sealing In High Pressure Applications
- CNC Machined From 6061-T6 Aircraft Aluminum
- Bright Dip Red Anodized Finish For A Corrosion Resistant, Show Car Quality Appearance
- Limited 1 Year Warranty
Specifications of Aeromotive Fuel System Fuel Filter - 12304 | |
Color | Red |
Diameter (IN) | 2 Inch |
Element Material | Stainless Steel |
Estimated Install Time (Hours) | 0.5 |
Finish | Anodized |
Height (IN) | 5-1/2 Inch |
Inlet Connection Size | 5/8 Inch (-10 AN) |
Inlet Connection Type | Female Threads |
Length (IN) | Not Applicable |
Location | In-Line |
Material | Aluminum |
Micron Rating | 100 Micron |
Outlet Connection Size | 5/8 Inch (-10 AN) |
Outlet Connection Type | Female Threads |
Type | Complete Assembly |
Width (IN) | Not Applicable |
With Gasket | Yes |
With Hose | No |
With Mounting Hardware | No |
