AEM Electronics Performance Gauge/ Monitor 305702
Clears Diagnostic Trouble Codes
Yes
Color
Black
Display Type
Digital
Emissions Legality
No
Engine Parameter Display
Displays Dozen of Engine Parameters
Includes Performance Calculator
No
Internet Upgradeable
No
Mounting Type
Dash Mount
Reads Diagnostic Trouble Codes
Yes
Share this page
AEM Electronics Performance Gauge/ Monitor

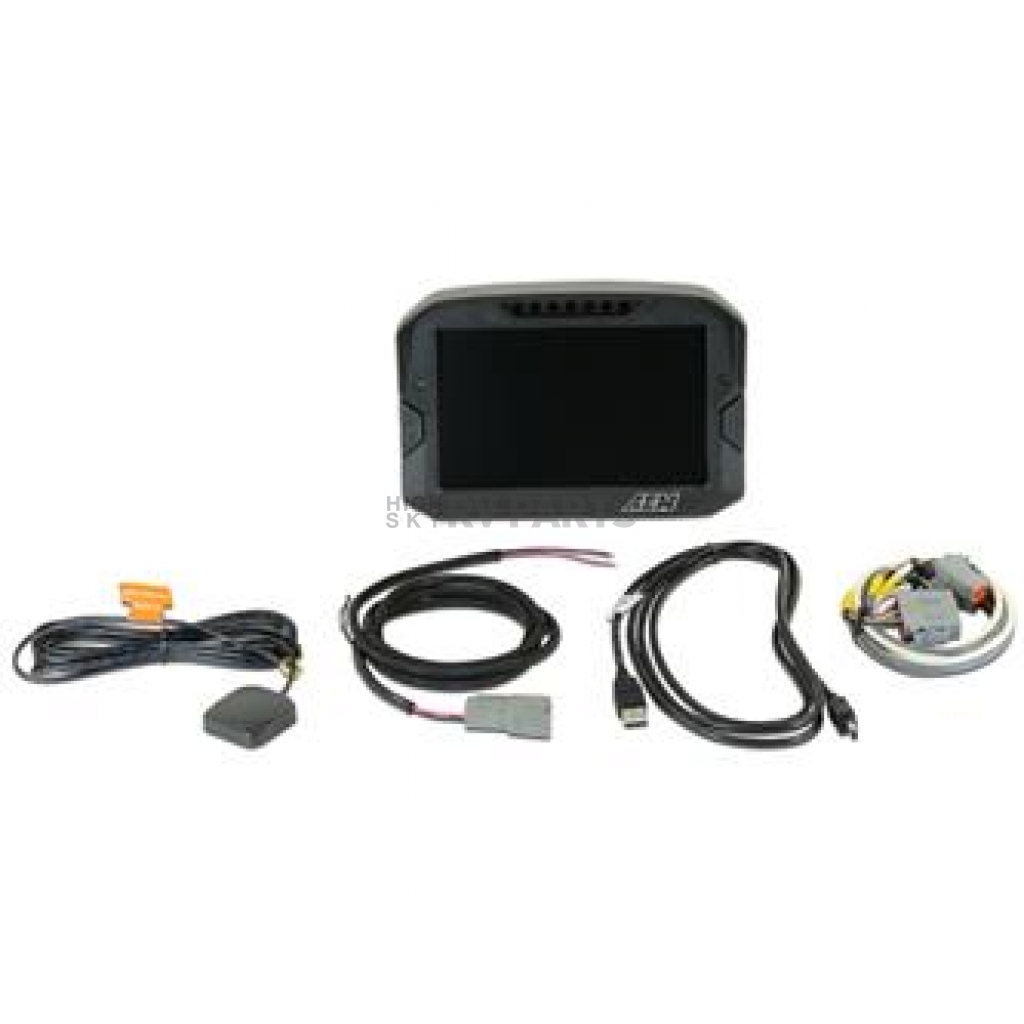

Performance Gauge/ Monitor; CD-7; Digital; Displays Dozen of Engine Parameters; CD-7G Non-Logging Display; GPS Enabled Racing Dash; CAN Input Only; With GPS Antenna/ Wiring Harness; Without Vehicle Dynamic Module
MPN: 305702
CD-7 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights.
Display Type: Digital
Reads Diagnostic Trouble Codes: Yes
Clears Diagnostic Trouble Codes: Yes
Engine Parameter Display: Displays Dozen of Engine Parameters
Internet Upgradeable: No
Emissions Legality: No
Mounting Type: Dash Mount
Includes Performance Calculator: No
Color: Black
Features
- Full Color 7 Inch Screen With 800x480 Resolution
- Direct Sunlight Readable (1000cd/M2 Brightness And Anti-Glare Filter)
- Rugged, Lightweight Flow-Molded Carbon Fiber Composite Enclosure
- IP65 Water Resistance - Open Cockpit, Marine And Motorcycle Safe
- Seven Programmable Pages Including Four Main Pages, Alarm, On-Change And Start-Up Pages
- Unique On-Change Page Can Be Used To Identify Map Switching For Boost, Traction, Lap Times, Etc
- Free DashDesign Graphics Editor Software
- Over 200 Supplied Fully Programmable SAE And Custom Warning Icons, And You Can Add Your Own
- Convert CAN Bus Channel Values To User-Defined Text In Multiple Languages
- Limited 12 Month Warranty
Specifications of AEM Electronics Performance Gauge/ Monitor 305702 | |
Clears Diagnostic Trouble Codes | Yes |
Color | Black |
Display Type | Digital |
Emissions Legality | No |
Engine Parameter Display | Displays Dozen of Engine Parameters |
Includes Performance Calculator | No |
Internet Upgradeable | No |
Mounting Type | Dash Mount |
Reads Diagnostic Trouble Codes | Yes |
