AEM Electronics Fuel Pressure Regulator - 25-305BK

Brand: AEM Electronics
0 reviews
  • Have a product question? Ask us
  • Part Number: 25-305BK
  • Part Location: U.S.
  • Availability: 11 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $192.17
Price: $183.02
You Save: $9.15
Color
Black
Finish
Anodized
Fuel Type
Gasoline
Gauge Port
Yes
Includes Fittings
No
Includes Mounting Brackets
Yes
Inlet Attachment
Female O-Ring
Inlet Quantity
Single
Inlet Size
3/8 Inch (-6 AN)
Material
Aluminum
Outlet Attachment
Female O-Ring
Share this page

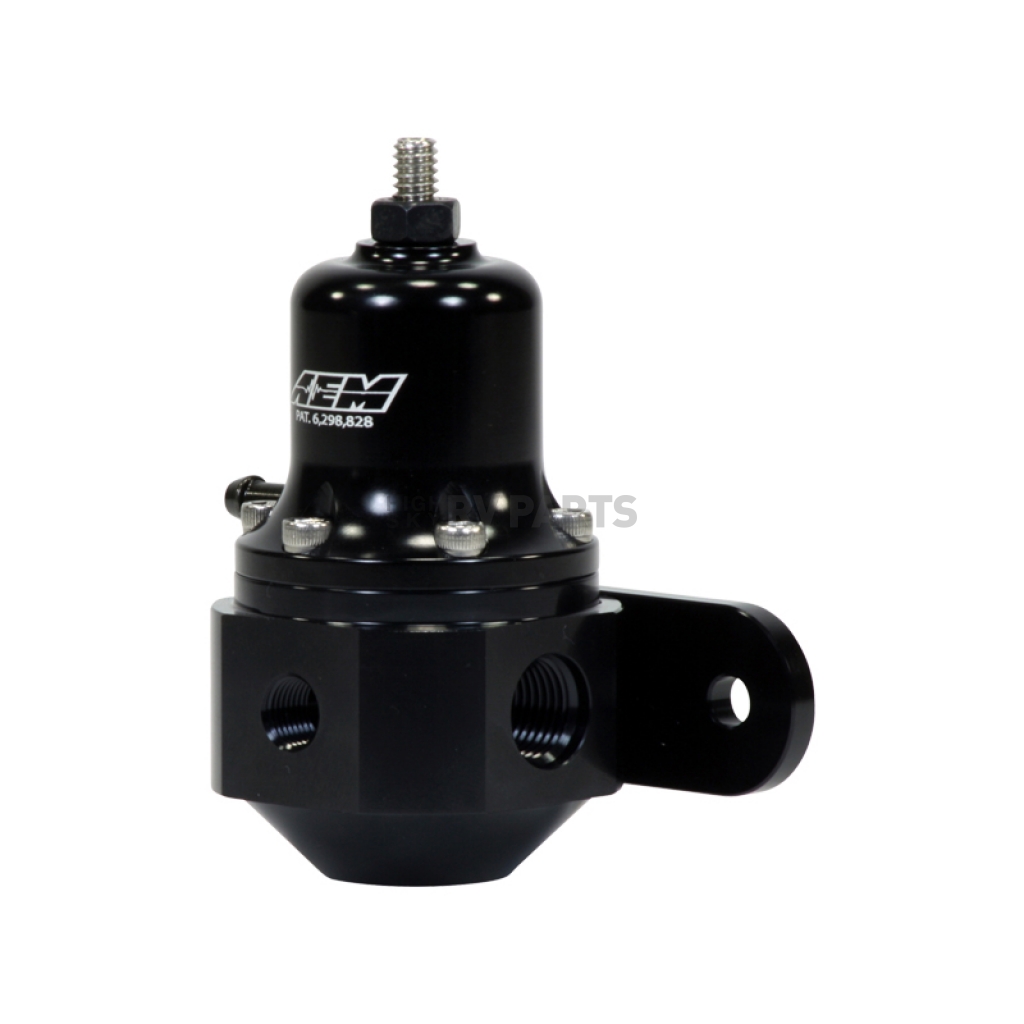

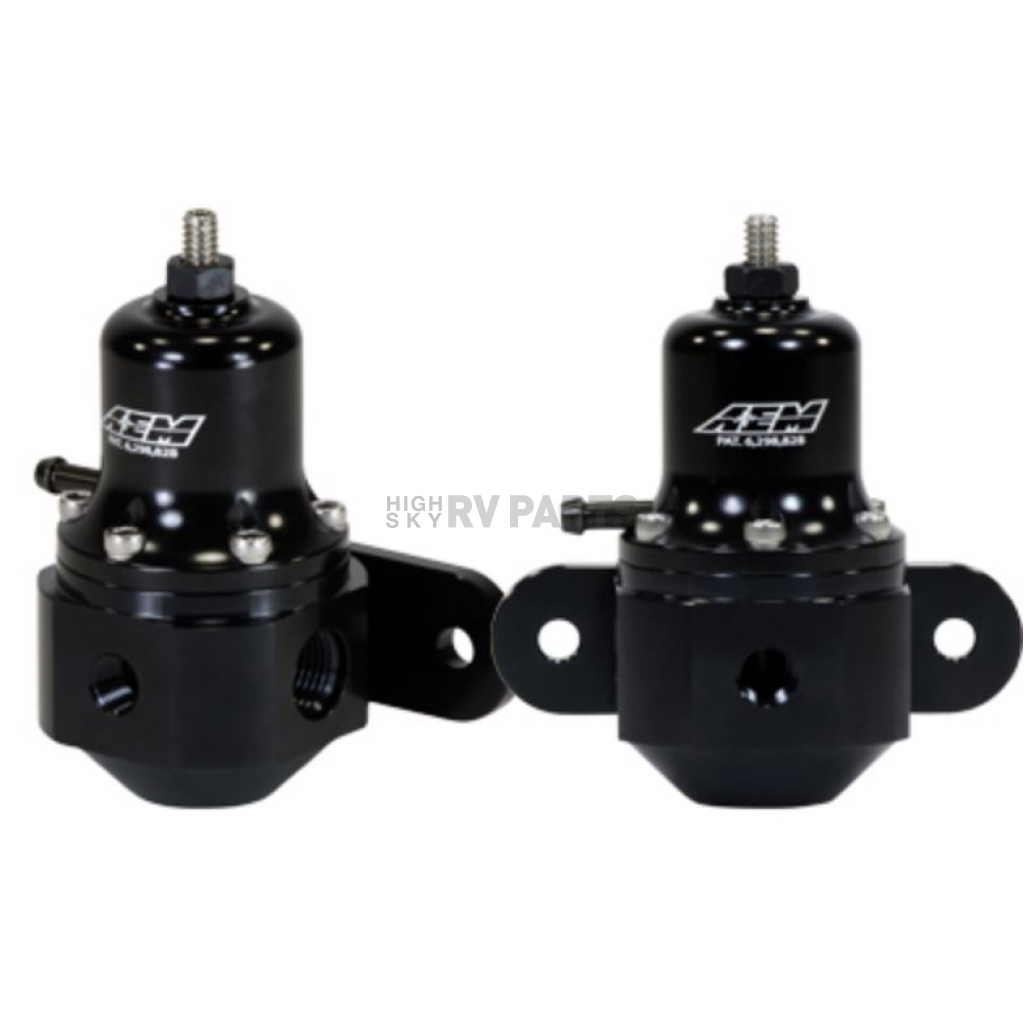

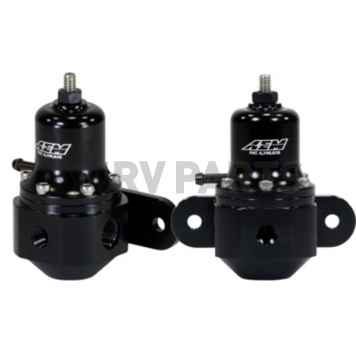

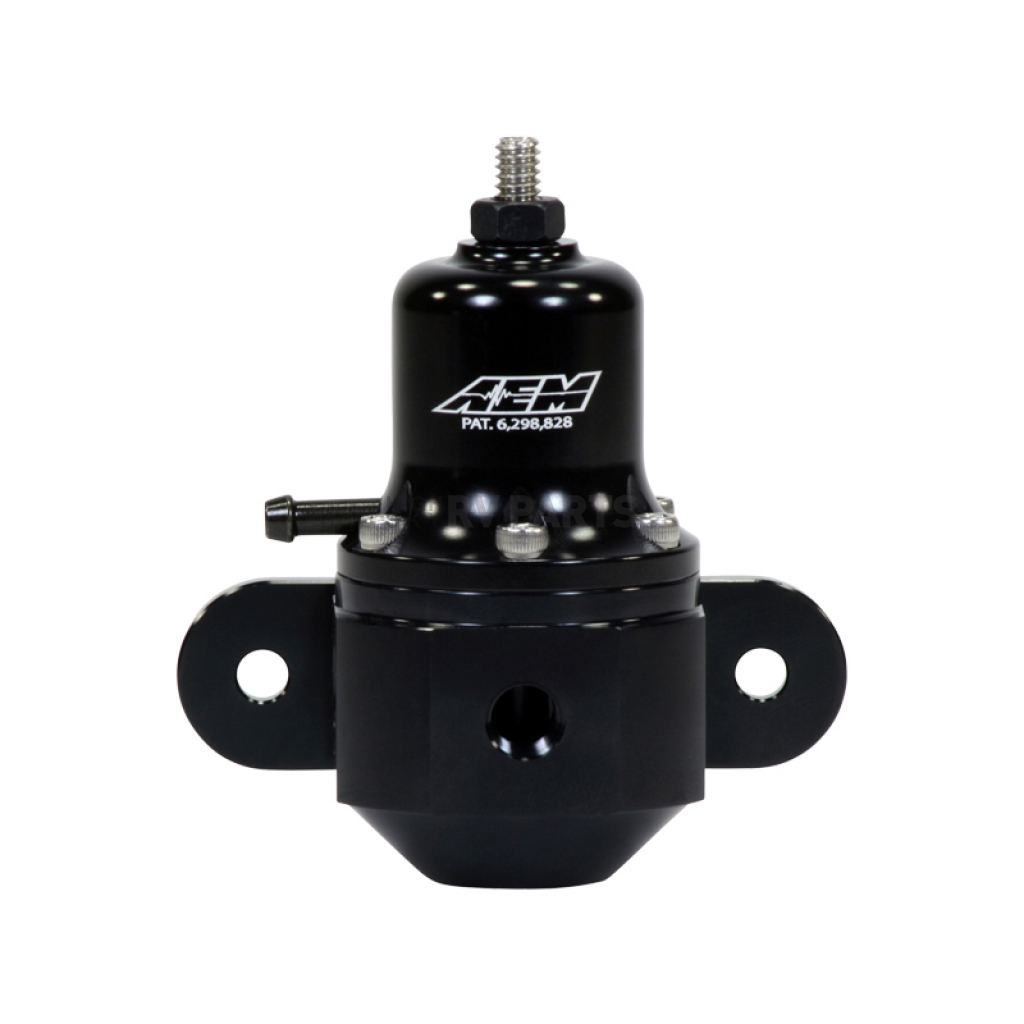

AEM Electronics Fuel Pressure Regulator

Fuel Pressure Regulator; 40-130 PSI; -6 AN Inlet/Stock Outlet; Gasoline; Billet; Aluminum

MPN: 25305BK

AEM's High Cap Universal Adjustable Fuel Pressure Regulator is the perfect solution for racers who need reliable fuel pressure in high-boost vehicles and racecars that require a large volume of fuel delivery. A longer spring provides for a wider range of adjustment (from 40 to 130 PSI). An easy-to-adjust set screw stands up to repeated adjustments. A single large return orifice is designed to handle high rate flow pumps. The regulator has a 1:1 rising pressure rate for boosted applications, and it is alcohol fuel and race fuel compatible. The High Cap Universal FPR is tapped to accept a 9/16 Inch-18 O-Ring sealed fittings for inlet and return, and includes a 1/8 NPT port for a fuel pressure gauge or pressure sensor pick up.
Fuel Type: Gasoline
Pressure Range (PSI): 40 To 130 Pounds Per Square Inch
Regulator Location: Inline
Regulator Type: Return
Gauge Port: Yes
Inlet Attachment: Female O-Ring
Inlet Quantity: Single
Inlet Size: 3/8 Inch (-6 AN)
Outlet Attachment: Female O-Ring
Outlet Quantity: Stock
Outlet Size: Stock
Shape: Oval
Includes Fittings: No
Includes Mounting Brackets: Yes
Finish: Anodized
Color: Black
Material: Aluminum

Features

  • Universal Fuel Pressure Regulator Adapts To Virtually Any Vehicle
  • Longer Spring For Wider Range Of Adjustment (40 To 130 PSI)
  • Single Large Return Orifice Accommodates Very High Flow Rate Pumps
  • Boost Dependent Rising Fuel Pressure Rate (1:1)
  • Three 9/16 Inch-18 ORB O-Ring Style Inlet Ports (2 Inlet, 1 Return)
  • Easy To Use Adjustment Screw
  • Integrated 1/8 Inch NPT Gauge Port
  • Alcohol Fuel And Race Gas Compatible
  • CNC-Machined From 6061-T6 Billet Aluminum
  • Limited 12 Month Warranty
Specifications of AEM Electronics Fuel Pressure Regulator - 25-305BK
Color Black
Finish Anodized
Fuel Type Gasoline
Gauge Port Yes
Includes Fittings No
Includes Mounting Brackets Yes
Inlet Attachment Female O-Ring
Inlet Quantity Single
Inlet Size 3/8 Inch (-6 AN)
Material Aluminum
Outlet Attachment Female O-Ring
Outlet Quantity Stock
Outlet Size Stock
Pressure Range (PSI) 40 To 130 Pounds Per Square Inch
Regulator Location Inline
Regulator Type Return
Shape Oval
