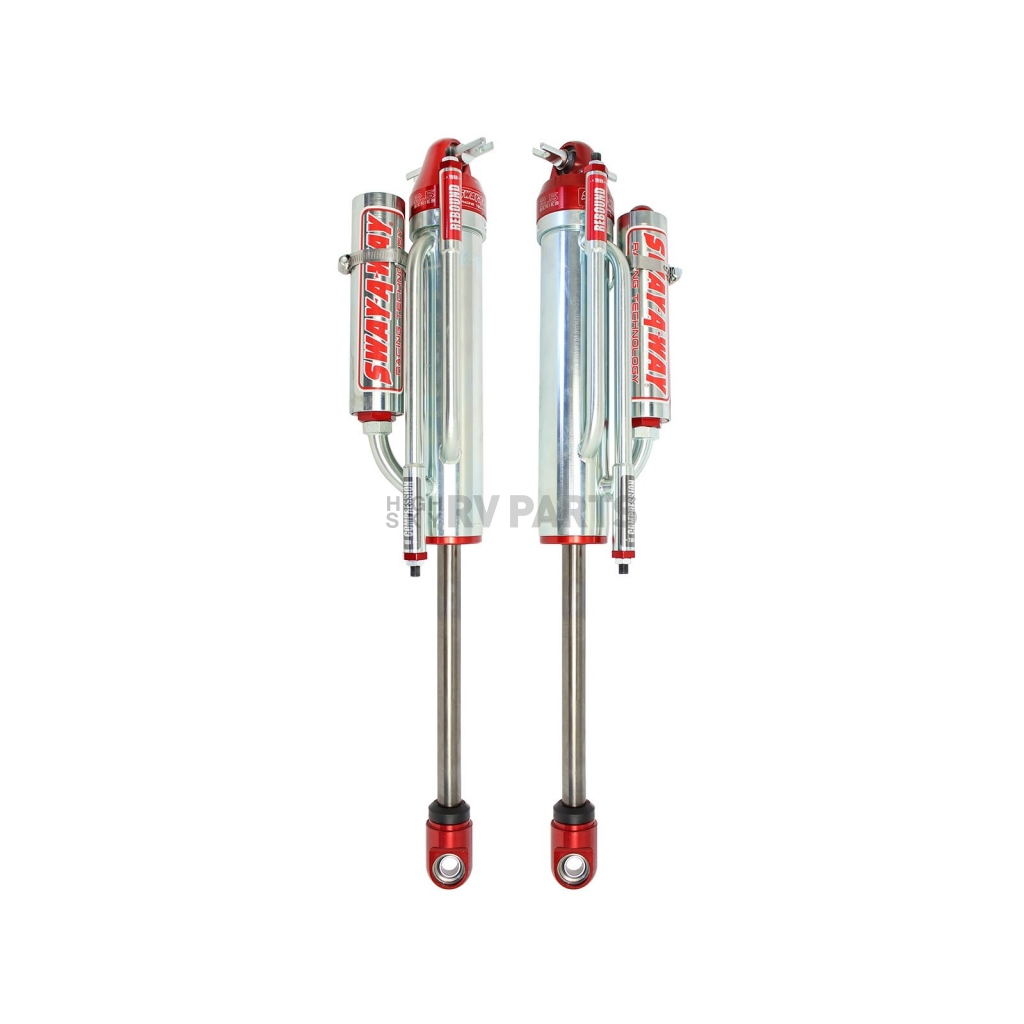

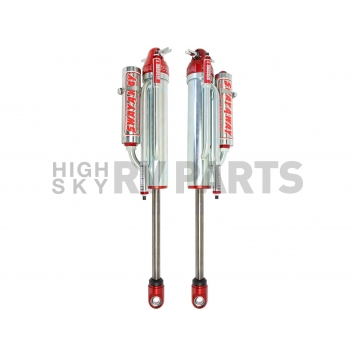

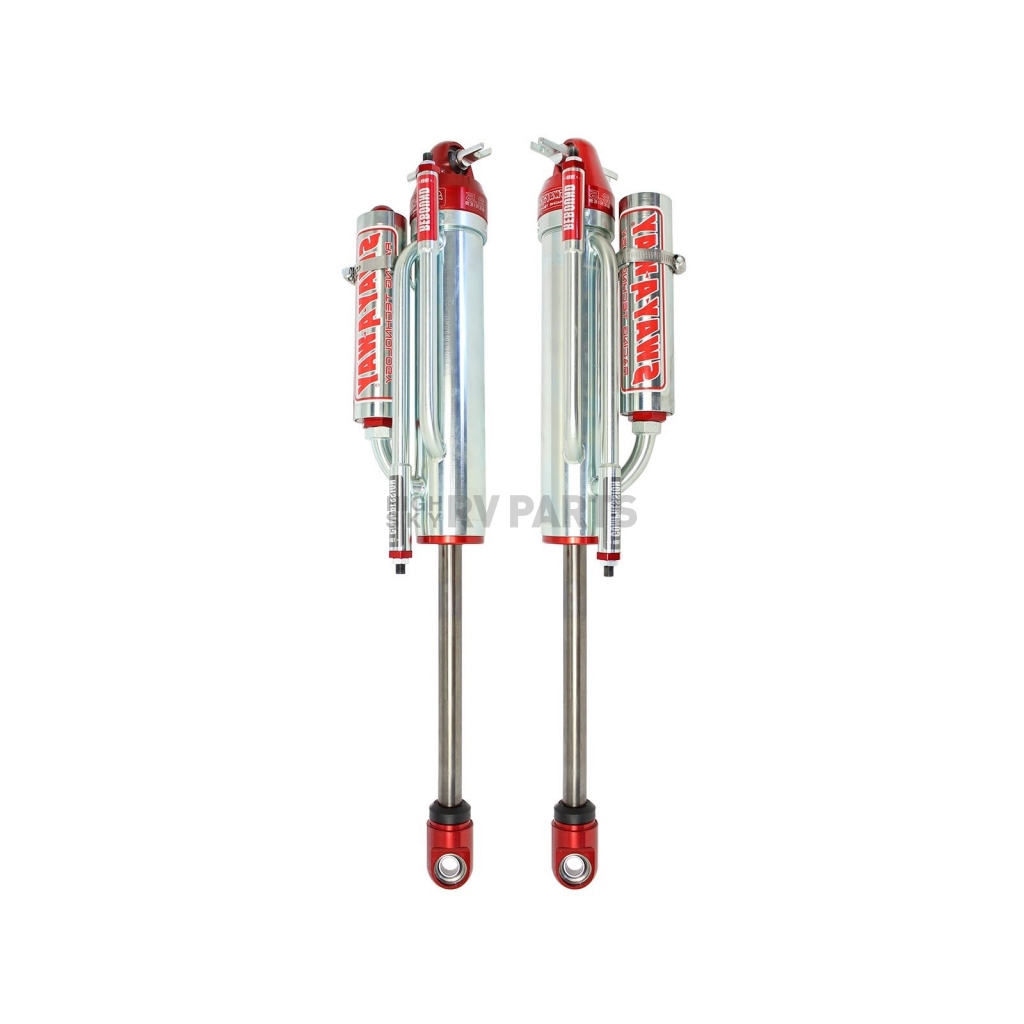

Advanced FLOW Engineering Shock Absorber - 402-0056-13

Authorized Dealer
Brand: Advanced FLOW Advanced FLOW
0 reviews
  • Have a product question? Ask us
  • Part Number: 402-0056-13
  • Part Location: U.S.
  • Availability: Out Of Stock
Retail: $1,345.04
Price: $1,280.99
You Save: $64.05
Adjustable Valving
 Yes
Body Color
 Silver
Body Material
 Steel
Compressed Length (IN)
 16-1/2 Inch
Estimated Install Time (Hours)
 1
Extended Length (IN)
 27 Inch
Includes Boot
 Yes
Includes Dust Shield
 No
Includes Hardware
 No
Internal Design
 Monotube
Lower Mounting Style
 Eyelet
Share this page

Shock Absorber; Sway-A-way; Hydraulic; By-Pass Style; 2-1/2 Inch Diameter; With Reservoir; Simultaneous Rebound and Compression Valving; Without Shock Boots; Silver and Red; Set of 2

MPN: 402-0056-13

aFe Control is proud to introduce the recently acquired Sway-A-Way line of High Performance replacement bypass shock absorbers for the 2007 to 2016 Jeep Wrangler (JK). These 2.5 Inch diameter double bypass shocks are designed to fit with most 4 to 5 Inch lift kits and feature all the same race winning engineering and components that have 20+ years of testing into a specifically designed kit that will bolt directly into your daily driven vehicle. These rear shocks are 100 Percent designed and built in the USA that feature bright zinc plated steel cylinder bodies and CNC machined aluminum components.

Type: Hydraulic
With Coil Spring: No
Internal Design: Monotube
Adjustable Valving: Yes
Extended Length (IN): 27 Inch
Compressed Length (IN): 16-1/2 Inch
Upper Mounting Style: Cross Pin
Lower Mounting Style: Eyelet
Body Color: Silver
Quantity: Set Of 2
Rod Diameter (IN): 7/8 Inch
Valving Type: Simultaneous Compression And Rebound Valving
Rod Material: Steel
Body Material: Steel
With Reservoir: Yes
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: Yes
Estimated Install Time (Hours): 1

Features

  • CNC Machined Components Are Made To The Strictest Tolerances
  • 7/8 Inch Polished Nitro Steel Shafts For Strength And Durability
  • 2.5 Inch Diameter Double Bypass For Position Sensitive Damping
  • Multi-Seal Carrier To Ensure Zero Leakage
  • Externally Adjustable Bypass Technology
  • Completely Adjustable And Rebuildable Using Simple Tools
  • Piggyback Reservoirs For Easy Installation
  • Limited 1 Year Warranty
Specifications of Advanced FLOW Engineering Shock Absorber - 402-0056-13
Adjustable Valving  Yes
Body Color  Silver
Body Material  Steel
Compressed Length (IN)  16-1/2 Inch
Estimated Install Time (Hours)  1
Extended Length (IN)  27 Inch
Includes Boot  Yes
Includes Dust Shield  No
Includes Hardware  No
Internal Design  Monotube
Lower Mounting Style  Eyelet
Quantity  Set Of 2
Rod Diameter (IN)  7/8 Inch
Rod Material  Steel
Type  Hydraulic
Upper Mounting Style  Cross Pin
Valving Type  Simultaneous Compression And Rebound Valving
With Coil Spring  No
With Reservoir  Yes

2007 Jeep Wrangler JK
2008 Jeep Wrangler JK
2009 Jeep Wrangler JK
2010 Jeep Wrangler JK
2011 Jeep Wrangler JK
2012 Jeep Wrangler JK
2013 Jeep Wrangler JK
2014 Jeep Wrangler JK
2015 Jeep Wrangler JK
2016 Jeep Wrangler JK
2017 Jeep Wrangler JK
2018 Jeep Wrangler JK
