Advanced FLOW Engineering Air Filter - 7290101

Authorized Dealer
Brand: Advanced FLOW Advanced FLOW
0 reviews
  • Have a product question? Ask us
  • Part Number: 72-90101
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $99.74
Price: $94.99
You Save: $4.75
Base Dimensions (IN)
8 Inch Length X 6-1/2 Inch Width
Cap Color
Black
Cap Material
Polyurethane
Element Color
Yellow
Element Material
Cotton Gauze
Estimated Install Time (Hours)
0.5
Flange Angle (DEG)
0 Degree
Flange Inside Diameter (IN)
4 Inch
Flange Offset (IN)
0 Inch
Height (IN)
7-1/2 Inch
Includes Gasket
No
Share this page

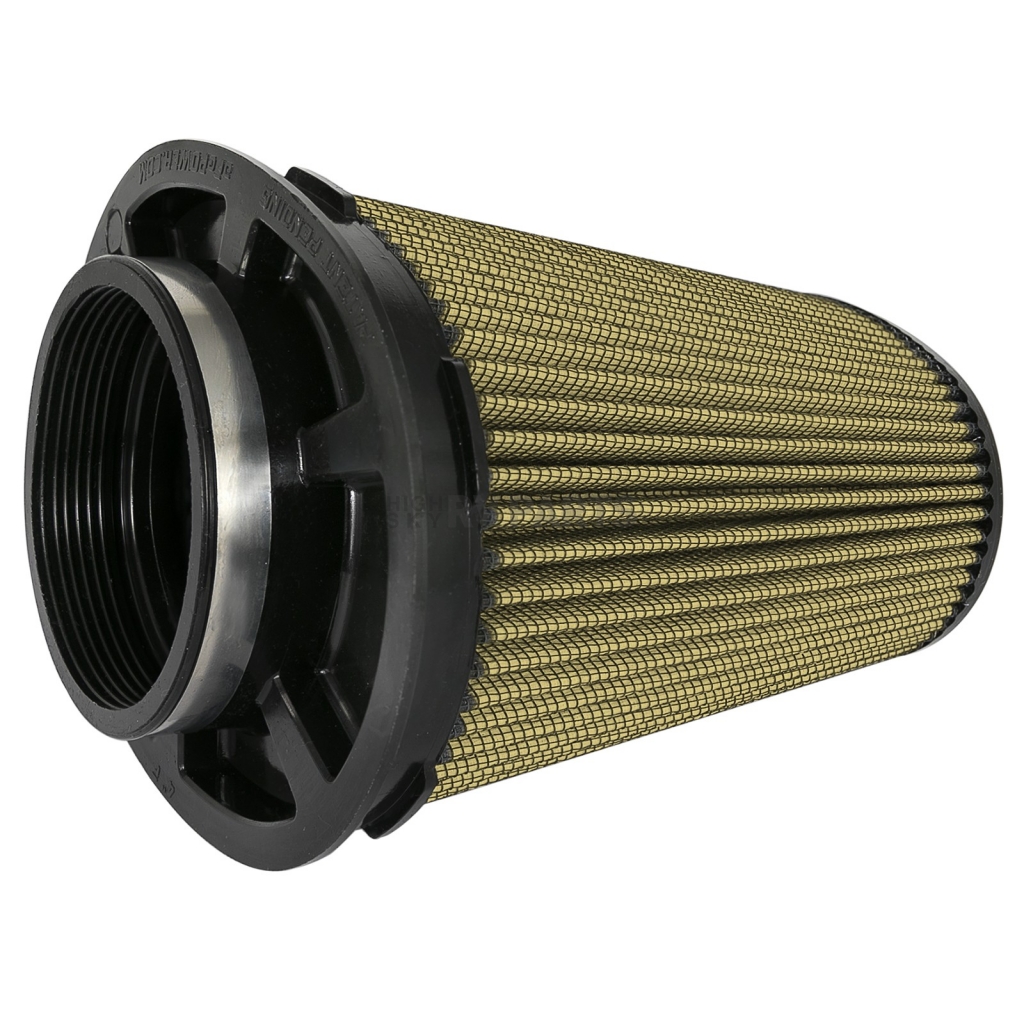

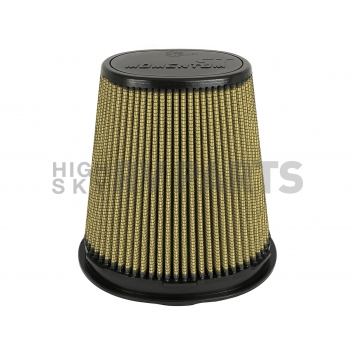

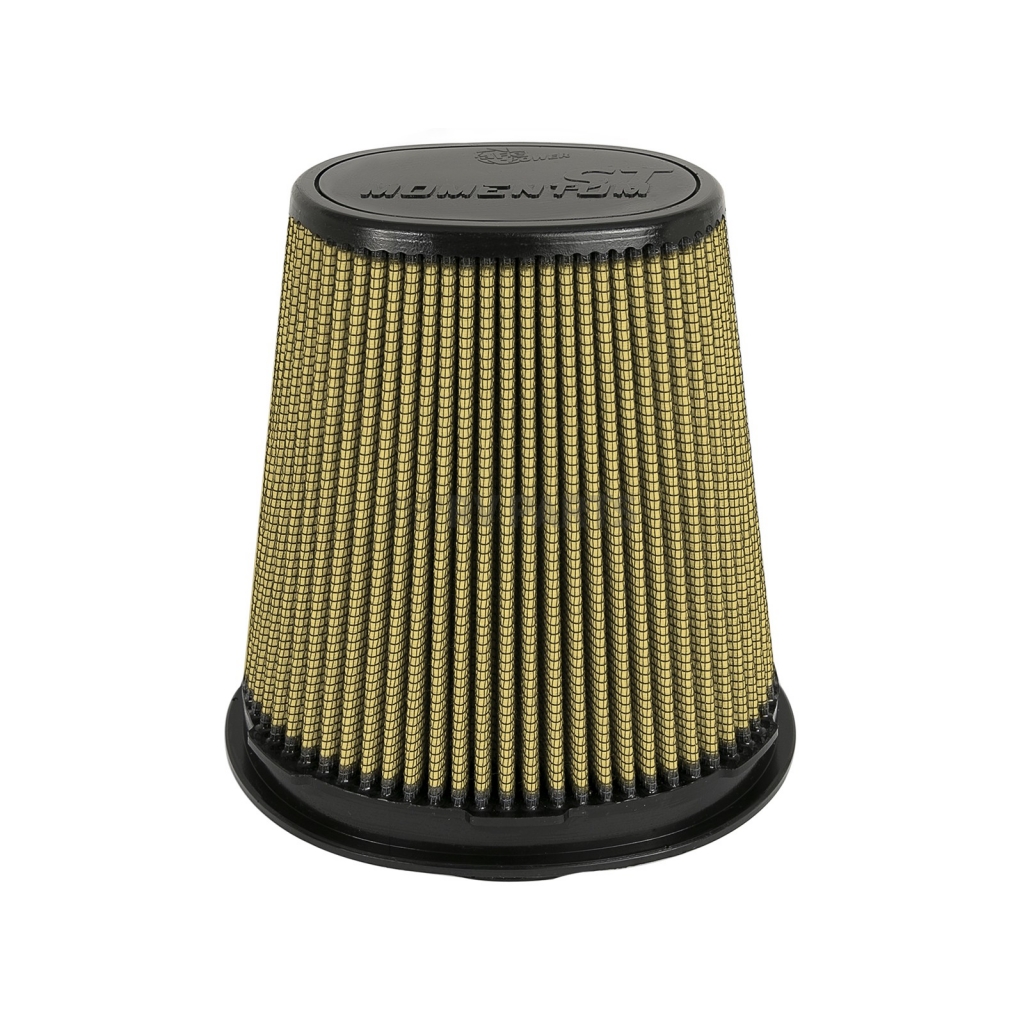

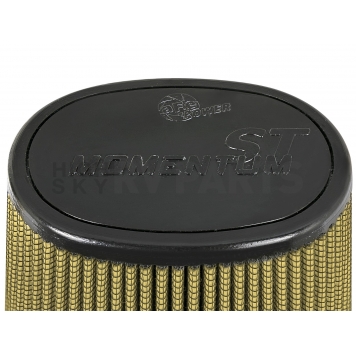

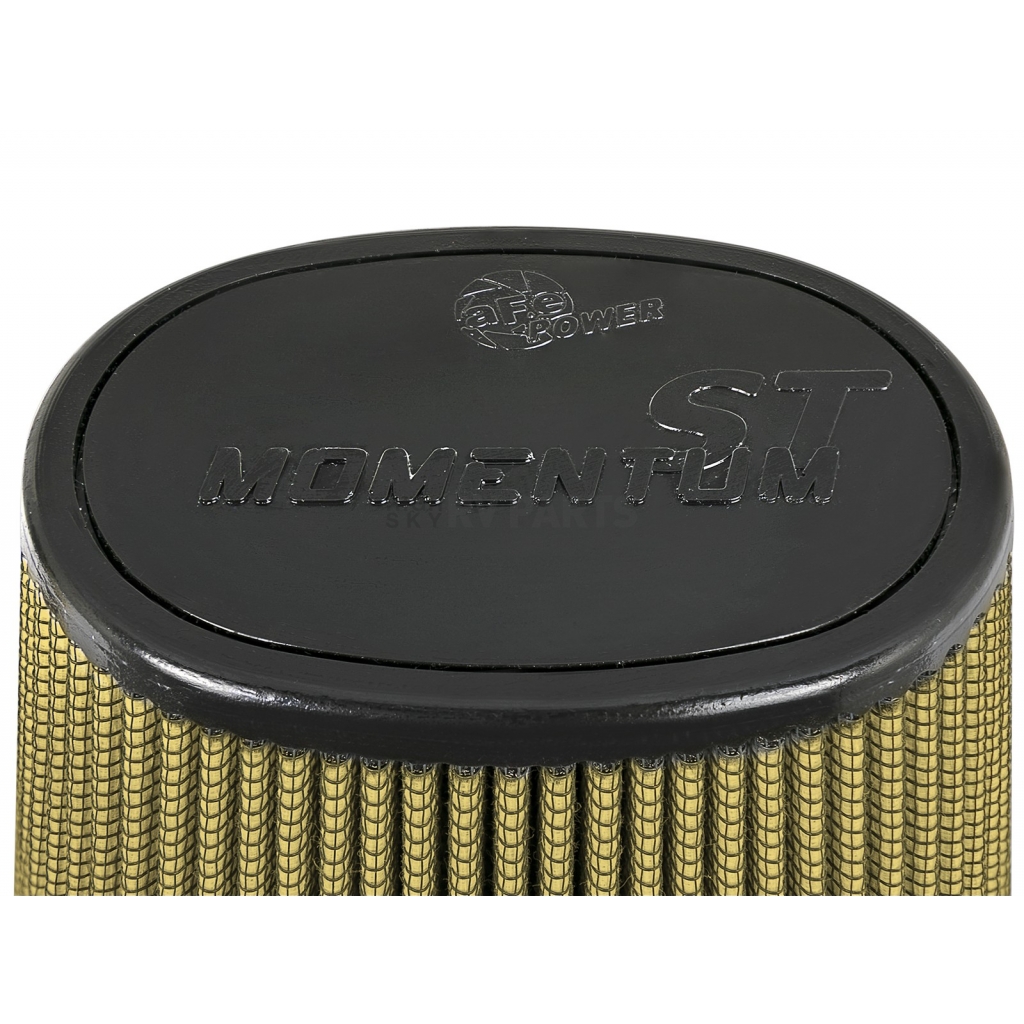

Advanced FLOW Engineering Air Filter

Air Filter; Magnum FLOW PRO GUARD 7; Washable; Yellow; Cotton Gauze;Oval Tapered; 8 Inch x 6-1/2 Inch Base Diameter x 5-1/4 Inch x 3-3/4 Inch Top Diameter; 7-1/2 Inch Height; Single Flange; 4 Inch Flange Diameter; Polyurethane Top

MPN: 7290101

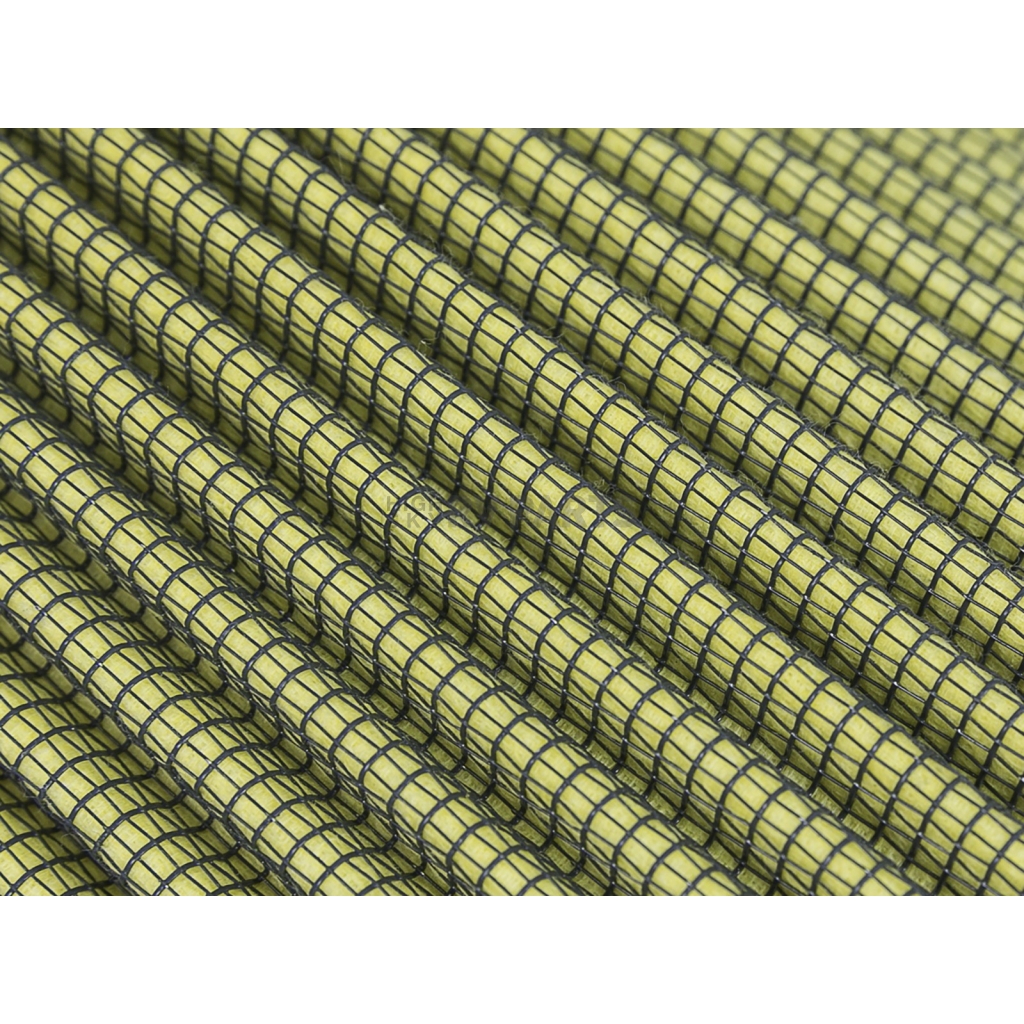

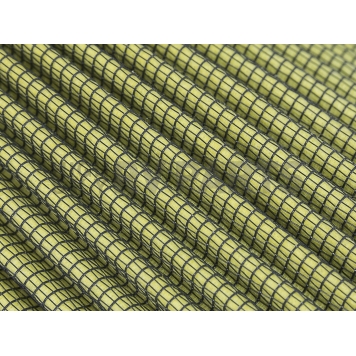

With five layers of progressively finer mesh cotton gauze media and two layers of synthetic media and a 100 Percent polyurethane top and base, this high flow "oiled" inverted conical performance filter provides excellent airflow for maximum horsepower and torque. Washable and reusable for multiple cleanings, the tall, open, evenly spaced pleats provide excellent dust holding capacity for longer service cycles between cleanings. The pliable polyurethane flange with integrated bumps insures a tight, no leak seal over the life of the filter.
Shape: Oval Tapered
Type: Washable
Element Color: Yellow
Element Material: Cotton Gauze
Height (IN): 7-1/2 Inch
Length (IN): Not Applicable
Width (IN): Not Applicable
Base Dimensions (IN): 8 Inch Length X 6-1/2 Inch Width
Top Dimensions (IN): 5-1/4 Inch Length X 3-3/4 Inch Width
Flange Inside Diameter (IN): 4 Inch
Flange Angle (DEG): 0 Degree
Flange Offset (IN): 0 Inch
Cap Color: Black
Includes Gasket: No
Oiled: Yes
Cap Material: Polyurethane
Estimated Install Time (Hours): 0.5

Features

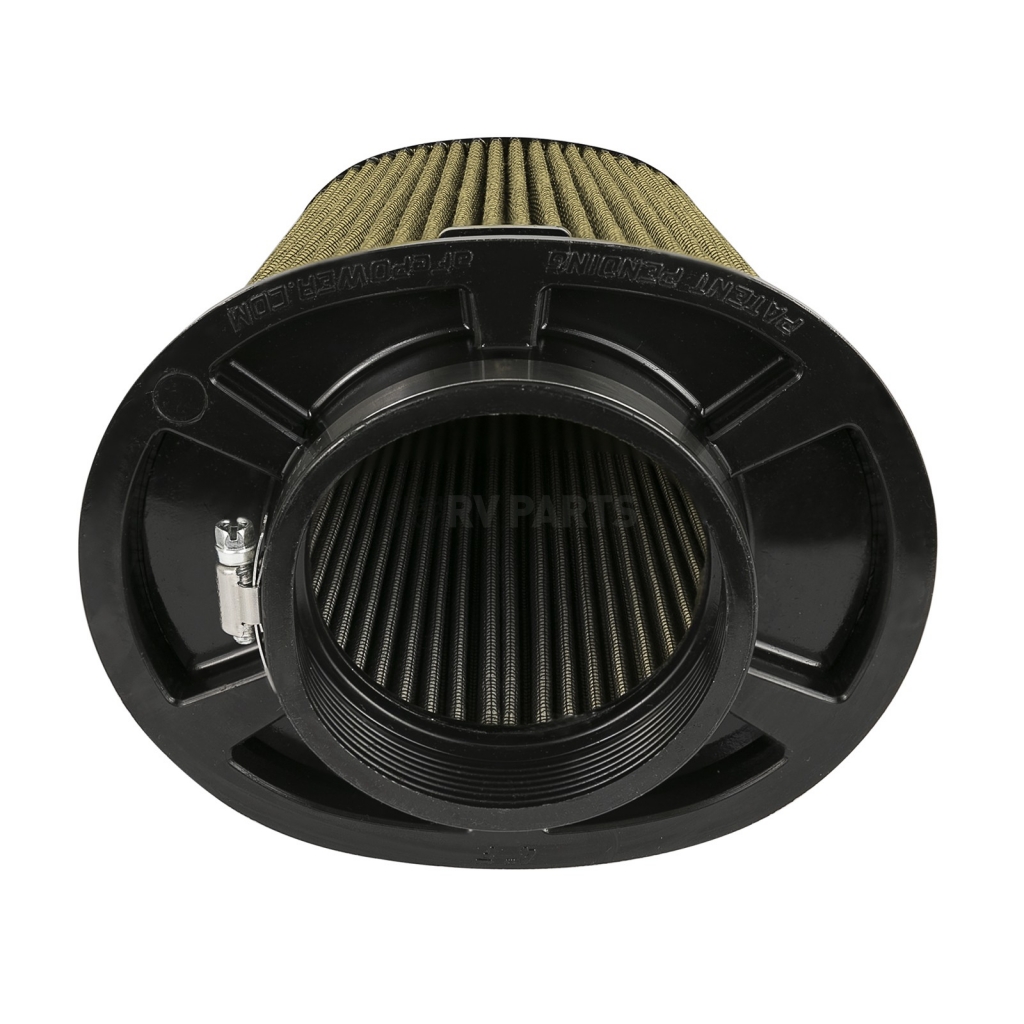

  • Pliable Polyurethane Flange With Integrated Bumps Insures Tight, No Leak Seal Over The Life Of The Filter
  • Washable And Reusable For Multiple Cleanings, The Tall, Open, Evenly Spaced Pleats Provide Excellent Dust Holding Capacity For Longer Service Cycles Between Cleanings
  • The Tall, Open, Evenly Spaced Pleats Provide Excellent Dust Holding Capacity For Longer Service Cycle Between Cleanings
  • High Flow Oiled Conical Performance Filter Provides Excellent Airflow For Maximum Horsepower And Torque
  • Five Layers Of Progressively Finer Mesh Cotton Gauze Media Between 100 Percent Polyurethane Top And Base
  • Limited 2 Year Warranty
Specifications of Advanced FLOW Engineering Air Filter - 7290101
Base Dimensions (IN) 8 Inch Length X 6-1/2 Inch Width
Cap Color Black
Cap Material Polyurethane
Element Color Yellow
Element Material Cotton Gauze
Estimated Install Time (Hours) 0.5
Flange Angle (DEG) 0 Degree
Flange Inside Diameter (IN) 4 Inch
Flange Offset (IN) 0 Inch
Height (IN) 7-1/2 Inch
Includes Gasket No
Length (IN) Not Applicable
Oiled Yes
Shape Oval Tapered
Top Dimensions (IN) 5-1/4 Inch Length X 3-3/4 Inch Width
Type Washable
Width (IN) Not Applicable
