Advanced FLOW Engineering Air Filter - 2491103
Base Dimensions (IN)
5 Inch Diameter
Cap Color
Black
Cap Finish
Matte
Cap Material
Polyurethane
Element Color
Blue
Element Material
Cotton Gauze
Estimated Install Time (Hours)
0.5
Flange Angle (DEG)
0 Degree
Flange Inside Diameter (IN)
3-1/2 Inch
Flange Length (IN)
3/4 Inch
Flange Offset (IN)
0 Inch
Share this page

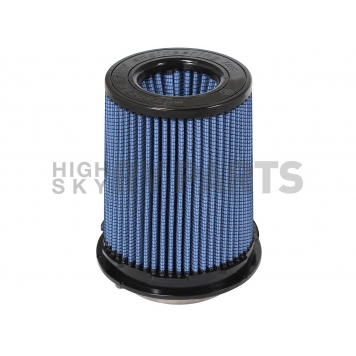

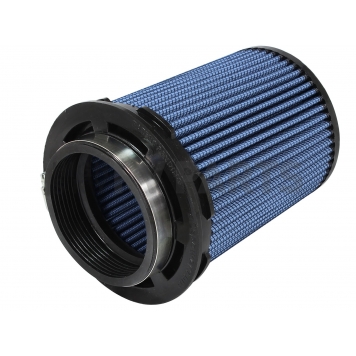

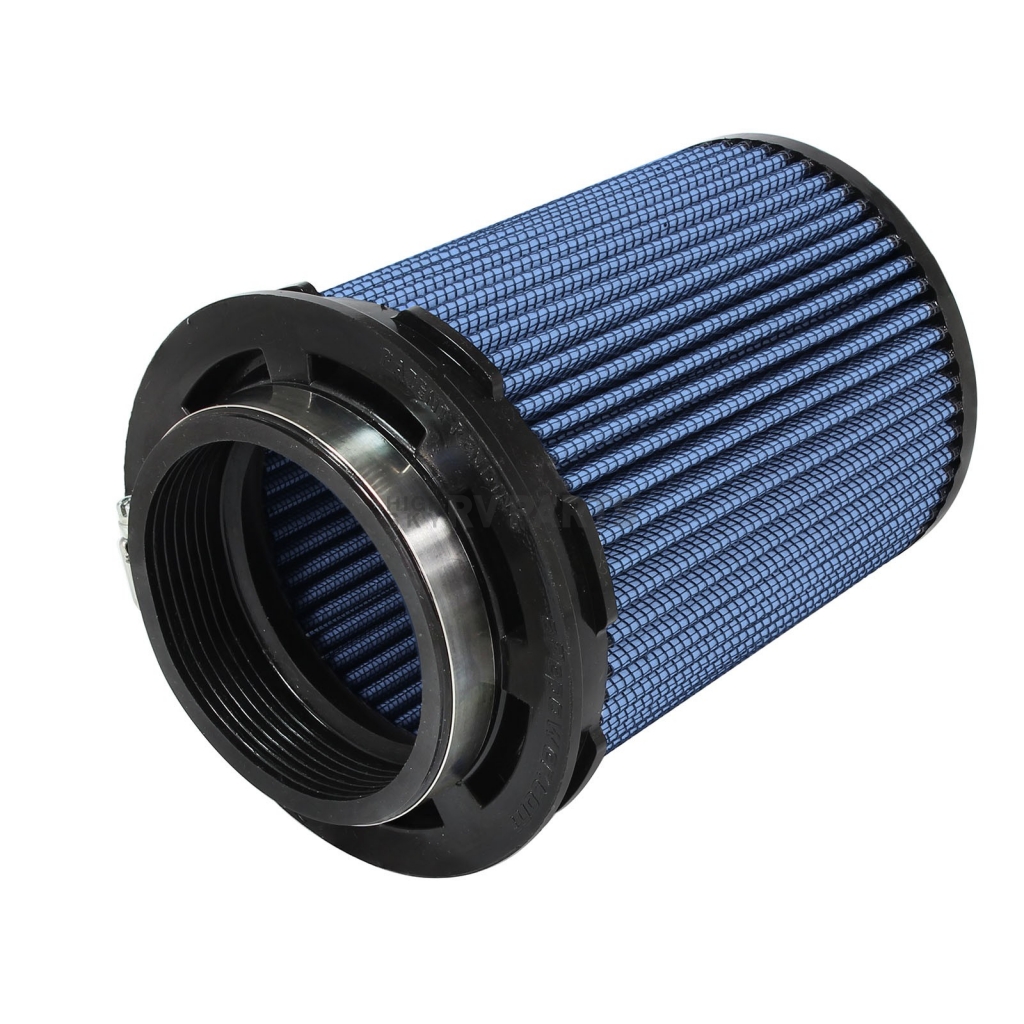

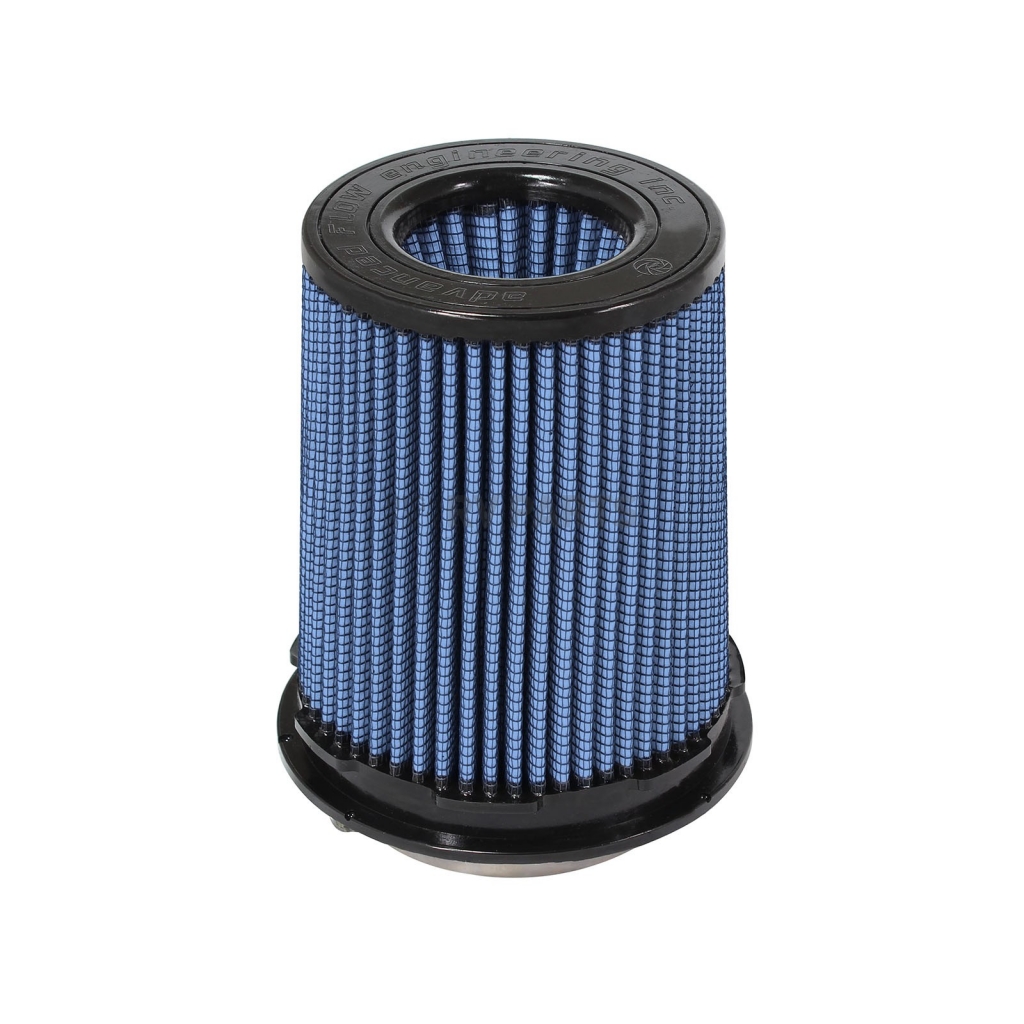

Advanced FLOW Engineering Air Filter
Air Filter; Pro 5 R; Washable; Blue; Cotton Gauze; Round Tapered; 5 Inch Base Diameter x 4-1/2 Inch Top Diameter x 7-1/2 Inch Height; Single Center Flange; 3-1/2 Inch Flange Diameter; Open Inverted Top
MPN: 2491103

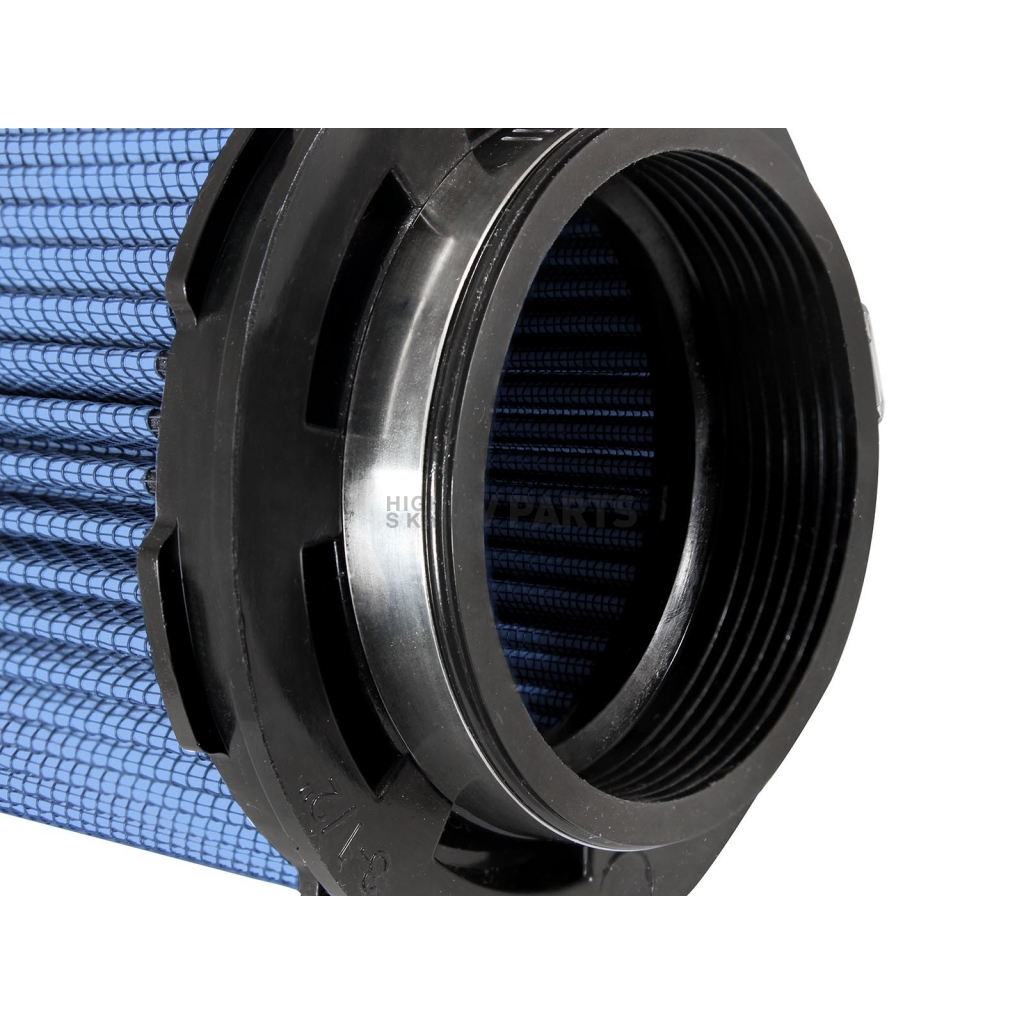

With five layers of progressively finer mesh cotton gauze media between 100 Percent polyurethane top and base, this high flow "oiled" inverted conical performance filter provides excellent airflow for maximum Horsepower and Torque. Washable and reusable for multiple cleanings, the tall, open, evenly spaced pleats provide excellent dust holding capacity for longer service cycle between cleanings. Pliable polyurethane flange with integrated bumps insures tight, no leak seal over the life of the filter.
Shape: Round Tapered
Type: Washable
Element Color: Blue
Element Material: Cotton Gauze
Height (IN): 7-1/2 Inch
Length (IN): Not Applicable
Width (IN): Not Applicable
Base Dimensions (IN): 5 Inch Diameter
Top Dimensions (IN): 4-1/2 Inch Diameter
Flange Inside Diameter (IN): 3-1/2 Inch
Flange Angle (DEG): 0 Degree
Flange Offset (IN): 0 Inch
Cap Color: Black
Includes Gasket: No
Oiled: Yes
Flange Length (IN): 3/4 Inch
Cap Finish: Matte
Cap Material: Polyurethane
Estimated Install Time (Hours): 0.5
Features
- Constructed With 100 Percent Polyurethane On Top And Bottom
- Medical Grade Cotton Gauze Filter Media Reduces Air Restriction And Increases Engine Output
- Surface Area Optimized To Reduce Pressure Differential Across The Element Resulting In Reduced Back Pressure And Increased Torque
- Precision Pleat Geometry Optimizes Airflow Through The Intake System
- Engineered To Control Maximum Filter Face Air Velocity With Deep Precision Pleats
- Multi-Layer Oiled Cotton Gauze Attracts And Traps Contaminants Without Sacrificing Air Flow
- Sturdy Epoxy Coated Wire Mesh Construction Protects Filter And Engine From Large Debris
- Unique Progressive Seal Design Ensures A True Factory Seal And Prevents Filter Seal Bypass
- Cleanable And Reusable, Urethane Seal Outlasts Conventional Materials
- Limited Lifetime Warranty
| Specifications of Advanced FLOW Engineering Air Filter - 2491103 | |
| Base Dimensions (IN) | 5 Inch Diameter |
| Cap Color | Black |
| Cap Finish | Matte |
| Cap Material | Polyurethane |
| Element Color | Blue |
| Element Material | Cotton Gauze |
| Estimated Install Time (Hours) | 0.5 |
| Flange Angle (DEG) | 0 Degree |
| Flange Inside Diameter (IN) | 3-1/2 Inch |
| Flange Length (IN) | 3/4 Inch |
| Flange Offset (IN) | 0 Inch |
| Height (IN) | 7-1/2 Inch |
| Includes Gasket | No |
| Length (IN) | Not Applicable |
| Oiled | Yes |
| Shape | Round Tapered |
| Top Dimensions (IN) | 4-1/2 Inch Diameter |
| Type | Washable |
| Width (IN) | Not Applicable |
