Advanced Clutch Set Diaphragm Sprung Full Face - ZX6-XTSS
Disc Diameter
9.4 Inch
Disc Friction Face Design
Full Face
Disc Friction Material
Organic
Disc Hub Design
Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
1 Inch X 23 Spline
Share this page

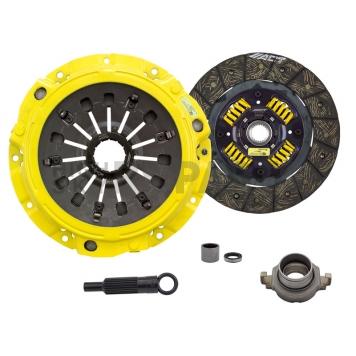

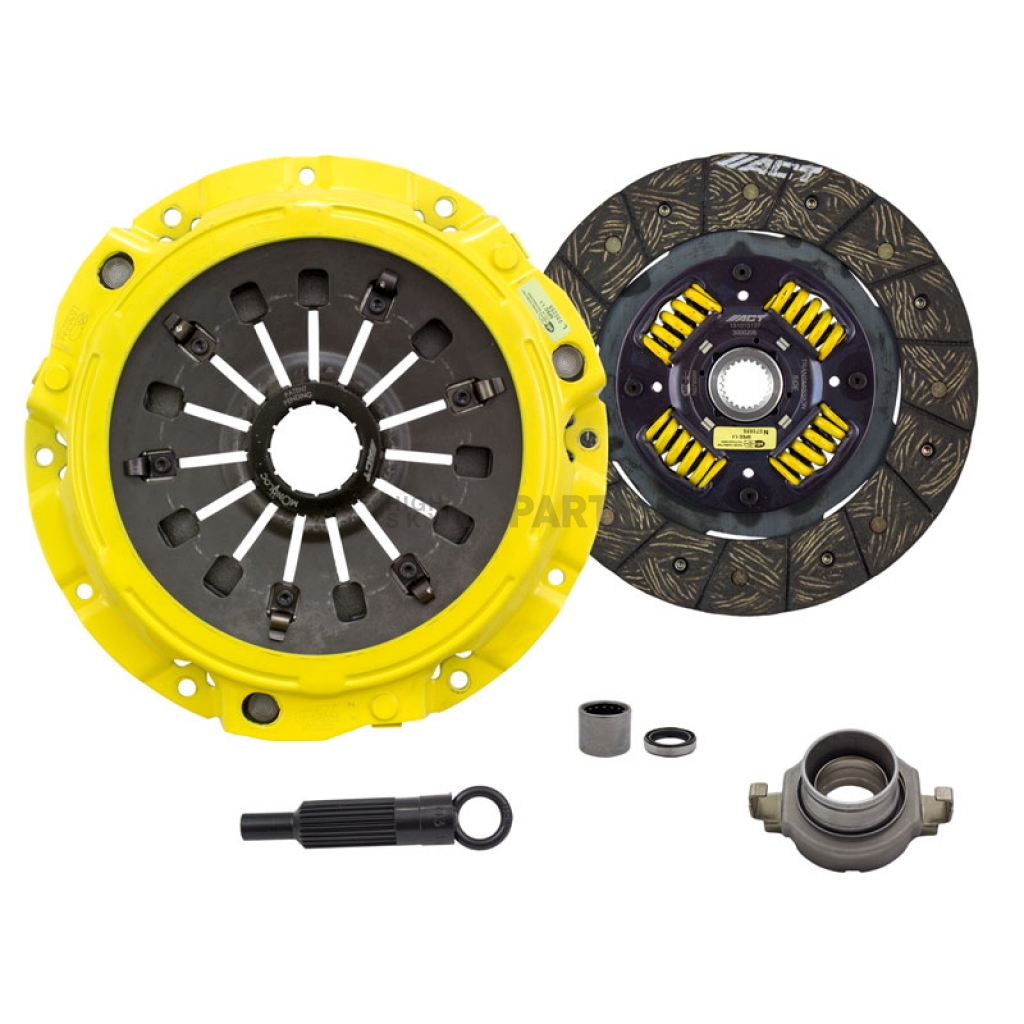

Clutch Set; Xtreme-Monoloc/ Performance Street; 9.4 Inch Clutch Diameter; 1 Inch x 23 Spline Input Shaft; Diaphragm; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing/ Pilot Bearing
MPN: ZX6-XTSS
An Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. Monoloc's hardened chrome-moly steel construction will provide years of service.Pressure Plate Design: Diaphragm
Input Shaft Size: 1 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 9.4 Inch
Disc Hub Design: Sprung
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: Full Face
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 450 Feet/Pound
Includes Alignment Tool: Yes
Features
- Pressure Plates Have Precision Cover Stampings To Provide Rigidity And Consistency
- Features Premium Organic Materials With High Copper Content For Better Heat Transfer And Steel-Backed Lining For Greater Burst Strength And Durability
- Features A Reduced Marcel For Faster Shift Action
- Quiet Operation With Increased Strength And Reliability
- Feel: Like Moderate To Heavy Pedal Effort, Smooth Positive Engagement, Increased Gear Rattle, Confidence During Hard Shifts
- Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade, Major Improvement In Release Mechanism
- Recommended For Street And Race Use
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Diaphragm Sprung Full Face - ZX6-XTSS | |
| Disc Diameter | 9.4 Inch |
| Disc Friction Face Design | Full Face |
| Disc Friction Material | Organic |
| Disc Hub Design | Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1 Inch X 23 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Design | Diaphragm |
| Torque Holding Capacity | 450 Feet/Pound |
1993 Mazda RX-7
1994 Mazda RX-7
1995 Mazda RX-7
1994 Mazda RX-7
1995 Mazda RX-7
