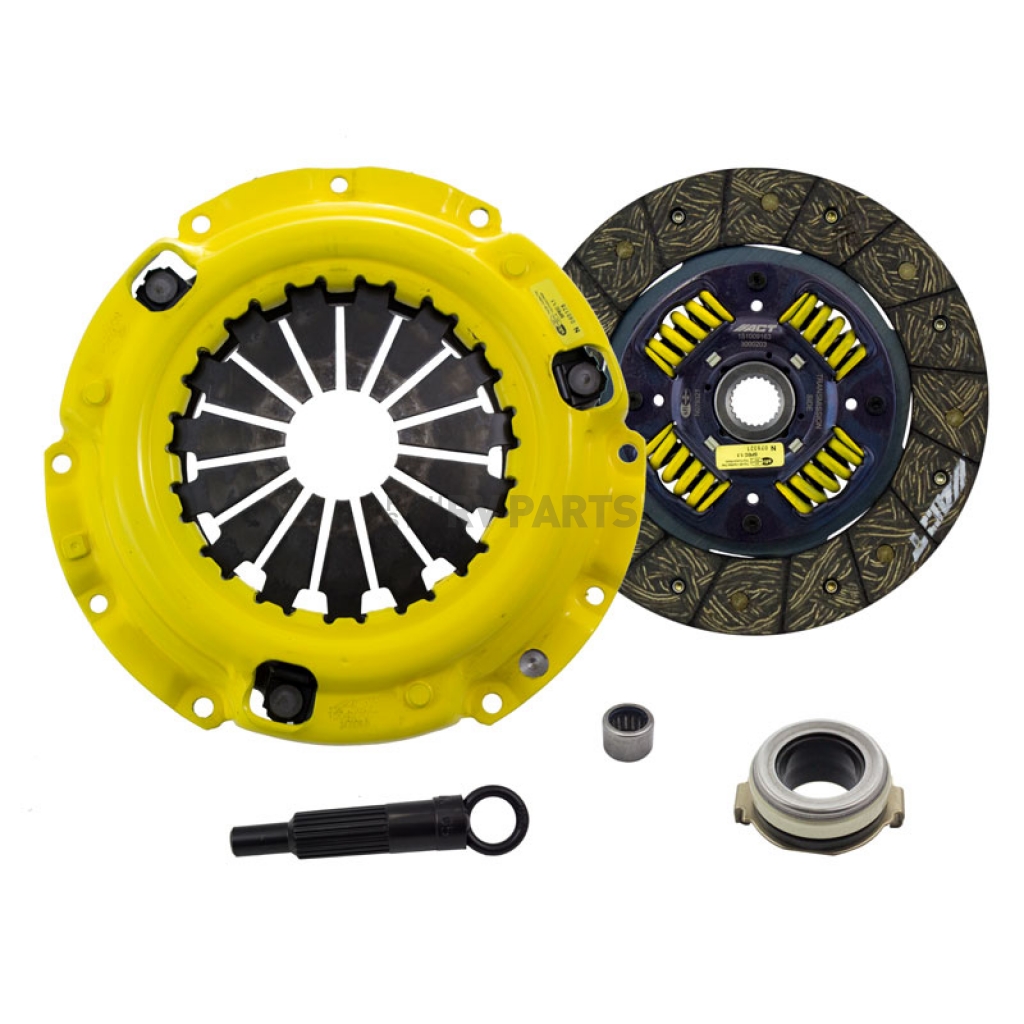

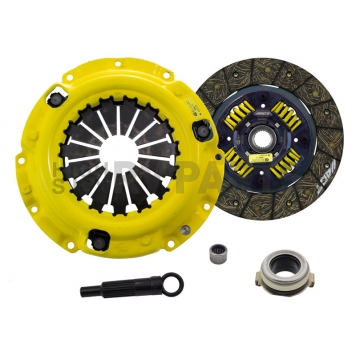

Advanced Clutch Set Diaphragm Medium Sprung Full Face - ZM5-HDSS
Disc Diameter
8.8 Inch
Disc Friction Face Design
Full Face
Disc Friction Material
Organic
Disc Hub Design
Medium Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
15/16 Inch X 22 Spline
Share this page
Clutch Set; Street; 8.8 Inch Clutch Diameter; 15/16 Inch x 22 Spline Input Shaft; Diaphragm; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Throwout Bearing/ Pilot Bearing/ Alignment Tool
MPN: ZM5-HDSS
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.Pressure Plate Design: Diaphragm
Input Shaft Size: 15/16 Inch X 22 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 8.8 Inch
Disc Hub Design: Medium Sprung
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: Full Face
Pressure Plate Clamp Load: 11.5 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 275 Feet/Pound
Includes Alignment Tool: Yes
Features
- Feel: Light To Moderate Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
- Life: Moderate Friction Life, Extended By Exclusive Diaphragm Design
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- Recommended For Race Use Only
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Limited 12 Month Warranty
| Specifications of Advanced Clutch Set Diaphragm Medium Sprung Full Face - ZM5-HDSS | |
| Disc Diameter | 8.8 Inch |
| Disc Friction Face Design | Full Face |
| Disc Friction Material | Organic |
| Disc Hub Design | Medium Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 15/16 Inch X 22 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 11.5 Pound |
| Pressure Plate Design | Diaphragm |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 275 Feet/Pound |
2006 Mazda MX-5 Miata
2007 Mazda MX-5 Miata
2008 Mazda MX-5 Miata
2009 Mazda MX-5 Miata
2010 Mazda MX-5 Miata
2007 Mazda MX-5 Miata
2008 Mazda MX-5 Miata
2009 Mazda MX-5 Miata
2010 Mazda MX-5 Miata
