Advanced Clutch Set Diaphragm Solid 4 Paddle - ZM5-HDR4
Disc Diameter
8.82 Inch
Disc Friction Face Design
4 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Solid
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
15/16 Inch X 22 Spline
Share this page

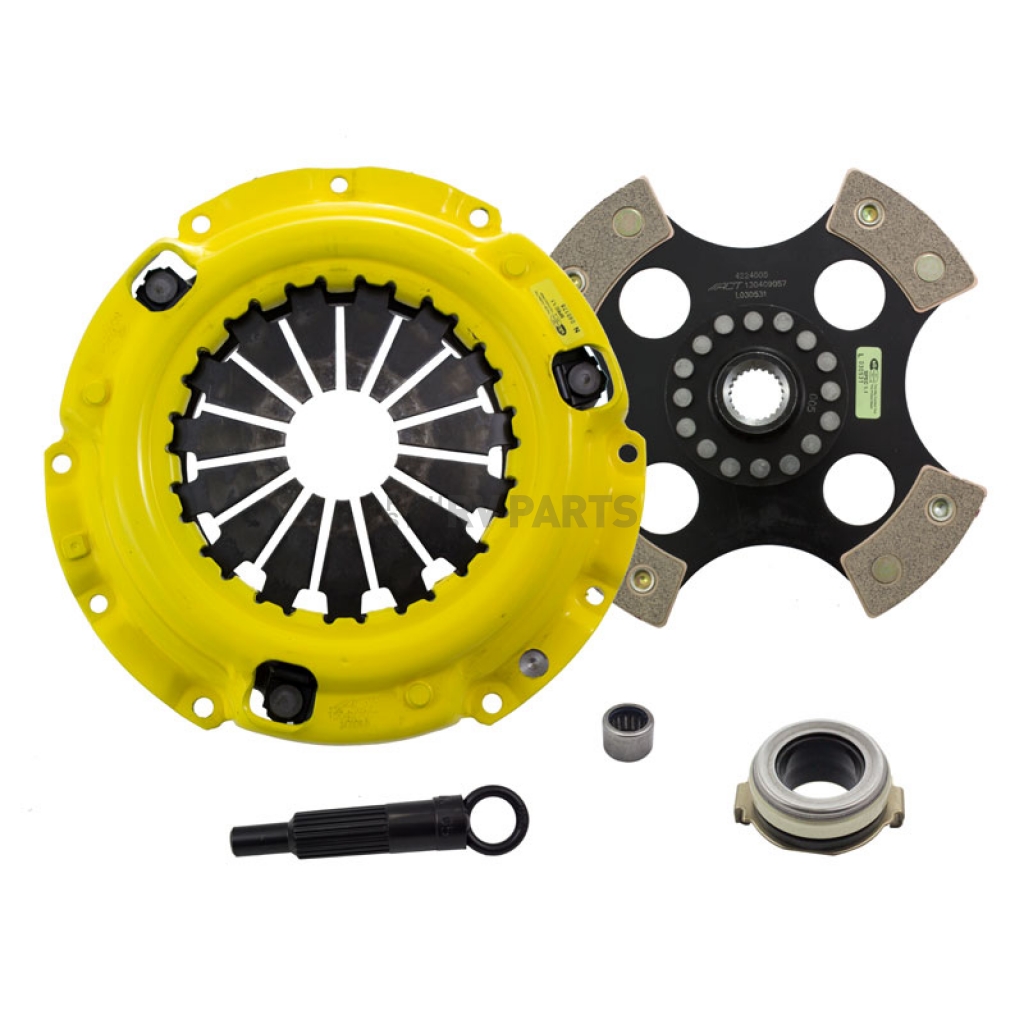

Clutch Set; Race; 8.82 Inch Clutch Diameter; 15/16 Inch x 22 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Solid Hub; With Throwout Bearing/ Pilot Bearing/ Alignment Tool
MPN: ZM5-HDR4
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.Pressure Plate Design: Diaphragm
Input Shaft Size: 15/16 Inch X 22 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 8.82 Inch
Disc Hub Design: Solid
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 4 Paddle
Pressure Plate Clamp Load: 11.5 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 355 Feet/Pound
Includes Alignment Tool: Yes
Features
- Feel: Light To Moderate Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
- Life: Moderate Friction Life, Extended By Exclusive Diaphragm Design
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- Recommended For Race Use Only
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Limited 12 Month Warranty
| Specifications of Advanced Clutch Set Diaphragm Solid 4 Paddle - ZM5-HDR4 | |
| Disc Diameter | 8.82 Inch |
| Disc Friction Face Design | 4 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Solid |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 15/16 Inch X 22 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 11.5 Pound |
| Pressure Plate Design | Diaphragm |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 355 Feet/Pound |
2006 Mazda MX-5 Miata
2007 Mazda MX-5 Miata
2008 Mazda MX-5 Miata
2009 Mazda MX-5 Miata
2010 Mazda MX-5 Miata
2011 Mazda MX-5 Miata
2012 Mazda MX-5 Miata
2013 Mazda MX-5 Miata
2014 Mazda MX-5 Miata
2015 Mazda MX-5 Miata
2007 Mazda MX-5 Miata
2008 Mazda MX-5 Miata
2009 Mazda MX-5 Miata
2010 Mazda MX-5 Miata
2011 Mazda MX-5 Miata
2012 Mazda MX-5 Miata
2013 Mazda MX-5 Miata
2014 Mazda MX-5 Miata
2015 Mazda MX-5 Miata
