Advanced Clutch Set Heavy Duty Rigid 4 Paddle - ZM10-HDR4
Disc Diameter
8.8 Inch
Disc Friction Face Design
4 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Rigid
Flywheel Material
Chromoly Steel
Flywheel Tooth Count
112
Flywheel Weight
12.3 Pound
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
15/16 Inch X 22 Spline
Share this page

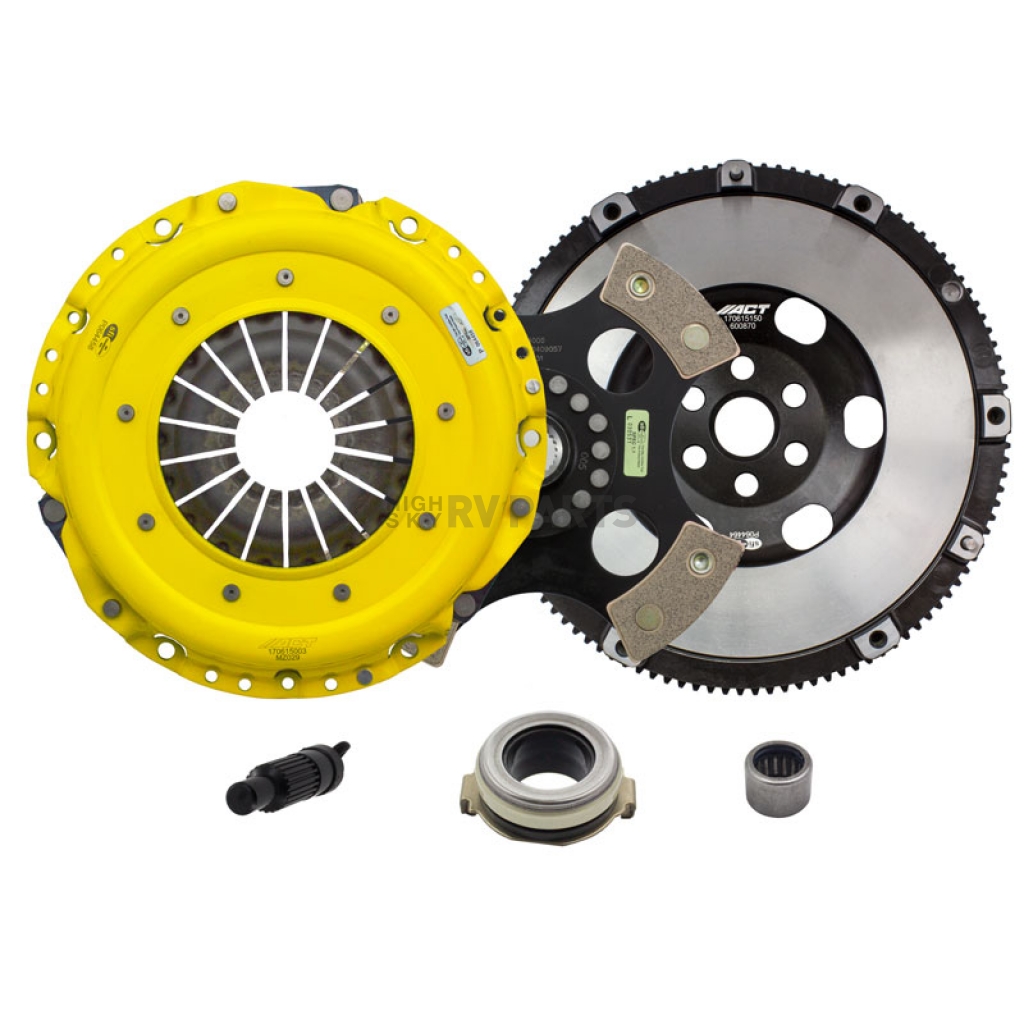

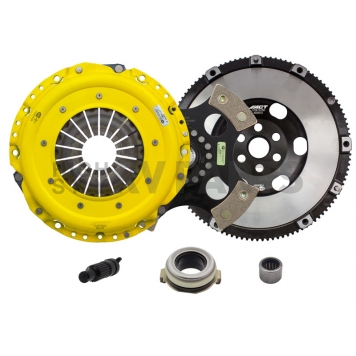

Clutch Set; Heavy Duty/ Race; 8.8 Inch Diameter; 15/16 Inch x 22 Spline Input Shaft; Ceramic Friction Material; 4 Paddle Design/ Rigid Hub; 399 Foot Pound Torque Capacity; With Flywheel/ Release Bearing/ Pilot Bushing/ Alignment Tool
MPN: ZM10-HDR4
This Kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.Pressure Plate Design: Heavy Duty
Input Shaft Size: 15/16 Inch X 22 Spline
Disc Friction Material: Ceramic
Disc Diameter: 8.8 Inch
Disc Hub Design: Rigid
Pressure Plate Material: Steel
Flywheel Weight: 12.3 Pound
Flywheel Tooth Count: 112
Flywheel Material: Chromoly Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 4 Paddle
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 399 Feet/Pound
Includes Alignment Tool: Yes
Features
- Feel: Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
- Life: Longer Friction Life, Extended By ACT's Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- Recommended For Race Use
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Heavy Duty Rigid 4 Paddle - ZM10-HDR4 | |
| Disc Diameter | 8.8 Inch |
| Disc Friction Face Design | 4 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Rigid |
| Flywheel Material | Chromoly Steel |
| Flywheel Tooth Count | 112 |
| Flywheel Weight | 12.3 Pound |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 15/16 Inch X 22 Spline |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Design | Heavy Duty |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 399 Feet/Pound |
2016 Mazda MX-5 Miata
2017 Mazda MX-5 Miata
2018 Mazda MX-5 Miata
2017 Mazda MX-5 Miata
2018 Mazda MX-5 Miata
