Advanced Clutch Set Heavy Duty Sprung 4 Paddle - ZM10-HDG4

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: ZM10-HDG4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $1,216.94
Price: $1,158.99
You Save: $57.95
Disc Diameter
 8.8 Inch
Disc Friction Face Design
 4 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Sprung
Flywheel Tooth Count
 112
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 Yes
Input Shaft Size
 15/16 Inch X 22 Spline
Pressure Plate Design
 Heavy Duty
Torque Holding Capacity
 399 Feet/Pound
Share this page

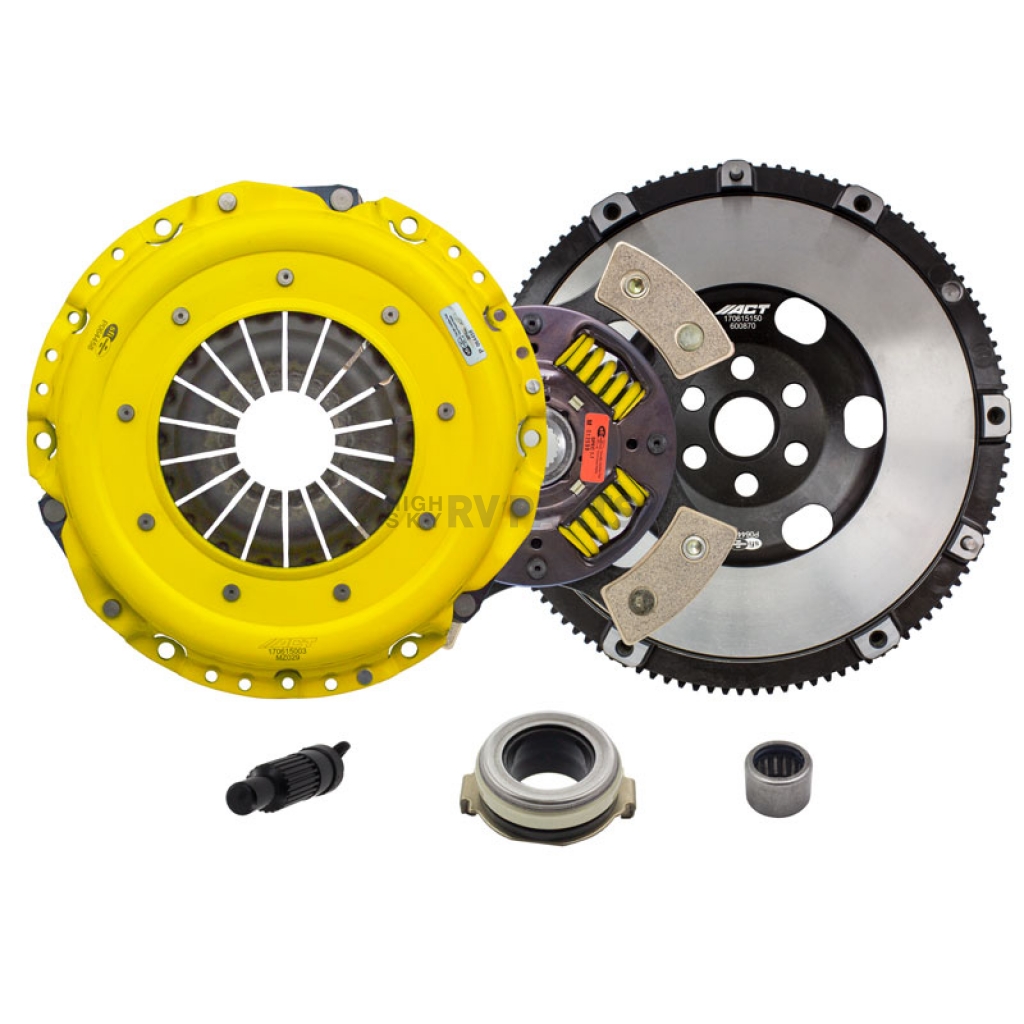

Clutch Set; Heavy Duty/ Race; 8.8 Inch Diameter; 15/16 Inch x 22 Spline Input Shaft; Ceramic Friction Material; 4 Paddle Design/ Sprung Hub; 399 Foot Pound Torque Capacity; With Flywheel/ Release Bearing/ Pilot Bushing/ Alignment Tool

MPN: ZM10-HDG4

This Kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 15/16 Inch X 22 Spline
Disc Friction Material: Ceramic
Disc Diameter: 8.8 Inch
Disc Hub Design: Sprung
Flywheel Tooth Count: 112
Includes Pilot Bearing: Yes
Disc Friction Face Design: 4 Paddle
Torque Holding Capacity: 399 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Feel: Light To Moderate Pedal Effort, Smooth Positive Engagement, OE To Mild Gear Rattle
  • Life: Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design
  • Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • Recommended For Street And Race Use
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Sprung 4 Paddle - ZM10-HDG4
Disc Diameter  8.8 Inch
Disc Friction Face Design  4 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Sprung
Flywheel Tooth Count  112
Includes Alignment Tool  Yes
Includes Pilot Bearing  Yes
Input Shaft Size  15/16 Inch X 22 Spline
Pressure Plate Design  Heavy Duty
Torque Holding Capacity  399 Feet/Pound

2016 Mazda MX-5 Miata
2017 Mazda MX-5 Miata
2018 Mazda MX-5 Miata
