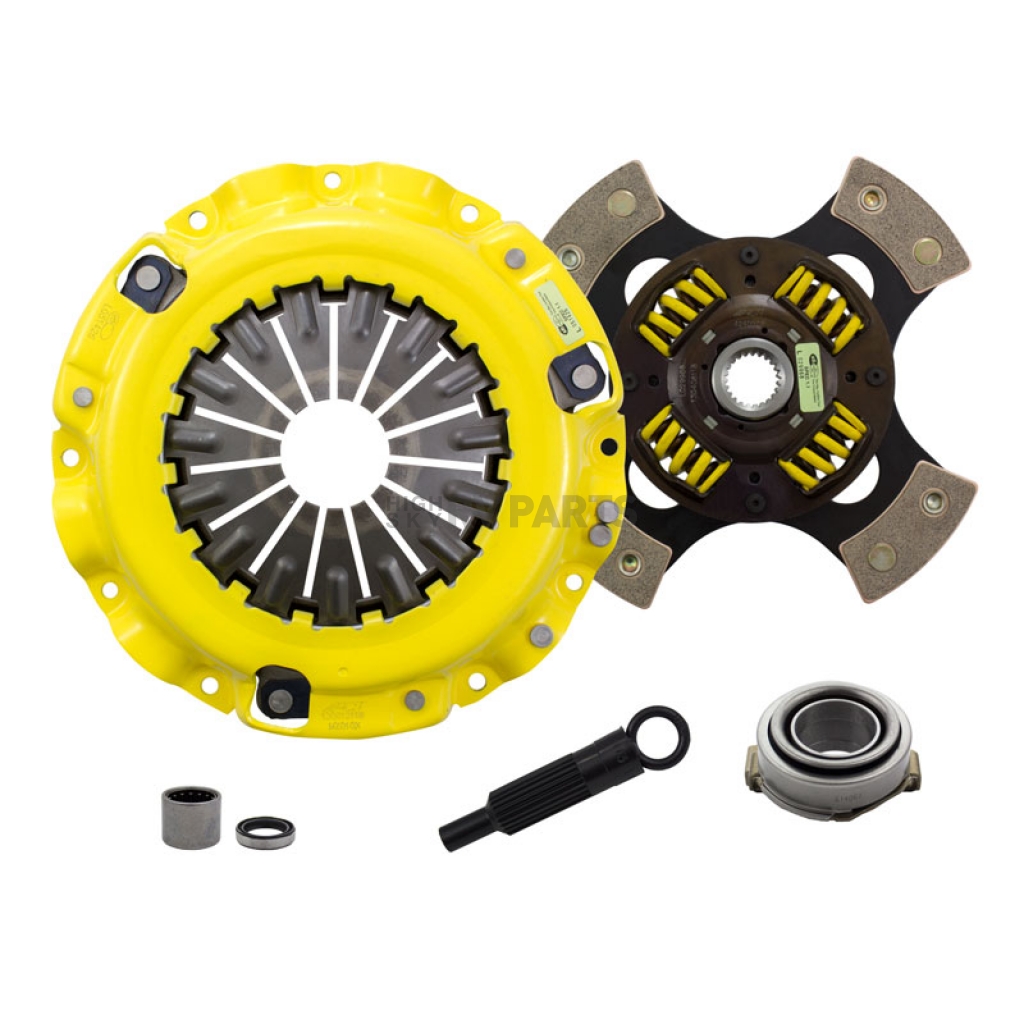

Advanced Clutch Set Diaphragm Medium Sprung 4 Paddle - Z65-XTG4
Disc Diameter
9.45 Inch
Disc Friction Face Design
4 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Medium Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
No
Includes Throwout Bearing
Yes
Input Shaft Size
1 Inch X 23 Spline
Share this page
Clutch Set; Xtreme/ Race; 9.45 Inch Clutch Diameter; 1 Inch x 23 Spline Input Shaft; Diaphragm; 560 Foot Pound Torque Capacity; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Sprung Hub; With Throwout Bearing And Alignment Tool
MPN: Z65-XTG4
ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.Pressure Plate Design: Diaphragm
Input Shaft Size: 1 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.45 Inch
Disc Hub Design: Medium Sprung
Pressure Plate Material: Iron
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: 4 Paddle
Pressure Plate Clamp Load: 2700 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 560 Feet/Pound
Includes Alignment Tool: Yes
Features
- Moderate To Heavy Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
- Moderate Friction Life, Extended By Exclusive Diaphragm Design
- Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Recommended For High Horsepower Street Or Race Use
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Diaphragm Medium Sprung 4 Paddle - Z65-XTG4 | |
| Disc Diameter | 9.45 Inch |
| Disc Friction Face Design | 4 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Medium Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | No |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1 Inch X 23 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 2700 Pound |
| Pressure Plate Design | Diaphragm |
| Pressure Plate Material | Iron |
| Torque Holding Capacity | 560 Feet/Pound |
1987 Mazda RX-7
1988 Mazda RX-7
1989 Mazda RX-7
1990 Mazda RX-7
1991 Mazda RX-7
1988 Mazda RX-7
1989 Mazda RX-7
1990 Mazda RX-7
1991 Mazda RX-7
