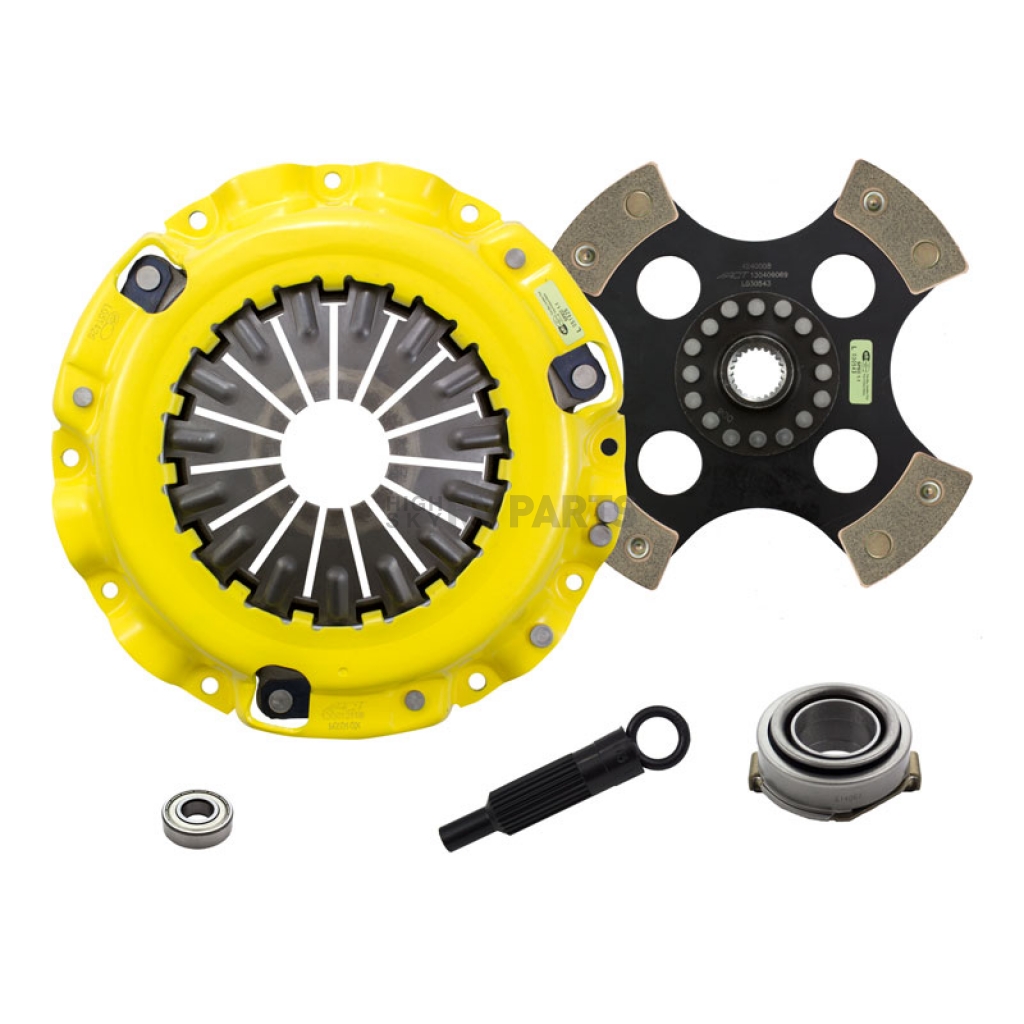

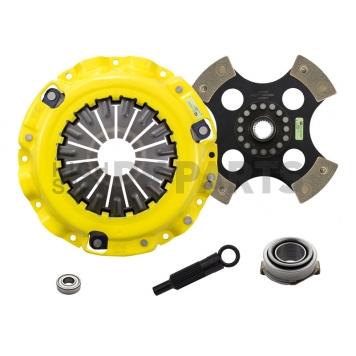

Advanced Clutch Set Diaphragm Solid 4 Paddle - Z64-XTR4
Disc Diameter
9.45 Inch
Disc Friction Face Design
4 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Solid
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
No
Includes Throwout Bearing
Yes
Input Shaft Size
1 Inch X 23 Spline
Share this page
Clutch Set; Xtreme/ Race; 9.45 Inch Clutch Diameter; 1 Inch x 23 Spline Input Shaft; Diaphragm; 560 Foot Pound Torque Capacity; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Solid Hub; With Throwout Bearing And Alignment Tool
MPN: Z64-XTR4
ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.Pressure Plate Design: Diaphragm
Input Shaft Size: 1 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.45 Inch
Disc Hub Design: Solid
Pressure Plate Material: Iron
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: 4 Paddle
Pressure Plate Clamp Load: 2700 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 560 Feet/Pound
Includes Alignment Tool: Yes
Features
- Moderate To Heavy Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
- Moderate Friction Life, Extended By Exclusive Diaphragm Design
- Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Recommended For Race Use
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Diaphragm Solid 4 Paddle - Z64-XTR4 | |
| Disc Diameter | 9.45 Inch |
| Disc Friction Face Design | 4 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Solid |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | No |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 1 Inch X 23 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Centrifugal Assist | No Centrifugal Assist |
| Pressure Plate Clamp Load | 2700 Pound |
| Pressure Plate Design | Diaphragm |
| Pressure Plate Material | Iron |
| Torque Holding Capacity | 560 Feet/Pound |
1989 Ford Probe
1990 Ford Probe
1991 Ford Probe
1992 Ford Probe
1990 Ford Probe
1991 Ford Probe
1992 Ford Probe
1988 Mazda 626
1989 Mazda 626
1990 Mazda 626
1991 Mazda 626
1989 Mazda 626
1990 Mazda 626
1991 Mazda 626
1988 Mazda 929
1989 Mazda 929
1990 Mazda 929
1991 Mazda 929
1989 Mazda 929
1990 Mazda 929
1991 Mazda 929
1988 Mazda MX-6
1989 Mazda MX-6
1990 Mazda MX-6
1991 Mazda MX-6
1992 Mazda MX-6
1989 Mazda MX-6
1990 Mazda MX-6
1991 Mazda MX-6
1992 Mazda MX-6
