Advanced Clutch Set Heavy Duty Medium Sprung 4 Paddle - Z62-HDG4

Name: Advanced Clutch Set Heavy Duty Medium Sprung 4 Paddle - Z62-HDG4
Brand: Advanced Clutch
SKU: Z62-HDG4
Price: 606.99 USD
Availability: InStock

Authorized Dealer

Brand:

Advanced Clutch

0 reviews

Have a product question? Ask us
Part Number: Z62-HDG4
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 18

Retail: $637.34

Price: $606.99

You Save: $30.35

Disc Diameter

8.82 Inch

Disc Friction Face Design

4 Paddle

Disc Friction Material

Ceramic

Disc Hub Design

Medium Sprung

Flywheel Material

No Flywheel

Flywheel Tooth Count

No Flywheel

Flywheel Weight

No Flywheel

Includes Alignment Tool

Yes

Includes Pilot Bearing

Yes

Includes Throwout Bearing

Yes

Input Shaft Size

15/16 Inch X 22 Spline

Share this page

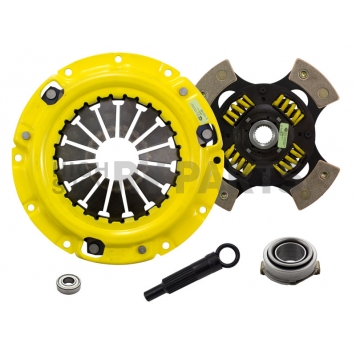

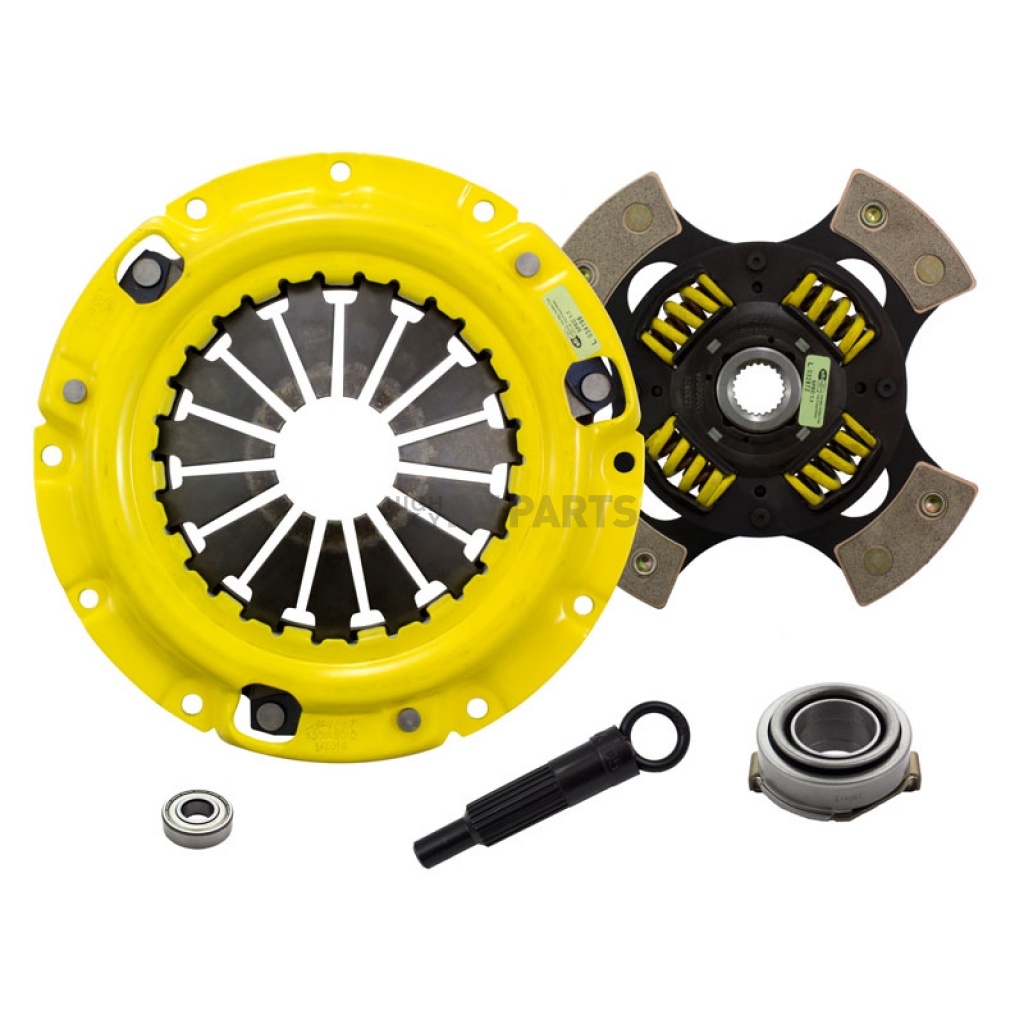

Clutch Set; Heavy Duty/ Race; 8.82 Inch Clutch Diameter; 15/16 Inch x 22 Spline Input Shaft; Diaphragm; 360 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Sprung Hub; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool

MPN: Z62-HDG4

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Pressure Plate Design: Heavy Duty

Input Shaft Size: 15/16 Inch X 22 Spline

Number Of Friction Discs: 1 Disc

Disc Friction Material: Ceramic

Disc Diameter: 8.82 Inch

Disc Hub Design: Medium Sprung

Pressure Plate Material: Steel

Flywheel Weight: No Flywheel

Flywheel Tooth Count: No Flywheel

Flywheel Material: No Flywheel

Includes Throwout Bearing: Yes

Includes Pilot Bearing: Yes

Disc Friction Face Design: 4 Paddle

Pressure Plate Clamp Load: 10.5 Pound

Pressure Plate Centrifugal Assist: No Centrifugal Assist

Torque Holding Capacity: 360 Feet/Pound

Includes Alignment Tool: Yes

Features

Light To Moderate Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design
Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
Recommended For High Horsepower Street Or Race Use
Limited 1 Year Warranty

Specifications of Advanced Clutch Set Heavy Duty Medium Sprung 4 Paddle - Z62-HDG4
Disc Diameter	8.82 Inch
Disc Friction Face Design	4 Paddle
Disc Friction Material	Ceramic
Disc Hub Design	Medium Sprung
Flywheel Material	No Flywheel
Flywheel Tooth Count	No Flywheel
Flywheel Weight	No Flywheel
Includes Alignment Tool	Yes
Includes Pilot Bearing	Yes
Includes Throwout Bearing	Yes
Input Shaft Size	15/16 Inch X 22 Spline
Number Of Friction Discs	1 Disc
Pressure Plate Centrifugal Assist	No Centrifugal Assist
Pressure Plate Clamp Load	10.5 Pound
Pressure Plate Design	Heavy Duty
Pressure Plate Material	Steel
Torque Holding Capacity	360 Feet/Pound
