Advanced Clutch Set Heavy Duty Sprung 6 Paddle - VW9-HDG6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: VW9-HDG6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $2,084.24
Price: $1,984.99
You Save: $99.25
Disc Diameter
 9.4 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Sprung
Includes Alignment Tool
 Yes
Input Shaft Size
 15/16 Inch X 23 Spline
Number Of Friction Discs
 1 Disc
Pressure Plate Design
 Heavy Duty
Torque Holding Capacity
 640 Feet/Pound
Share this page

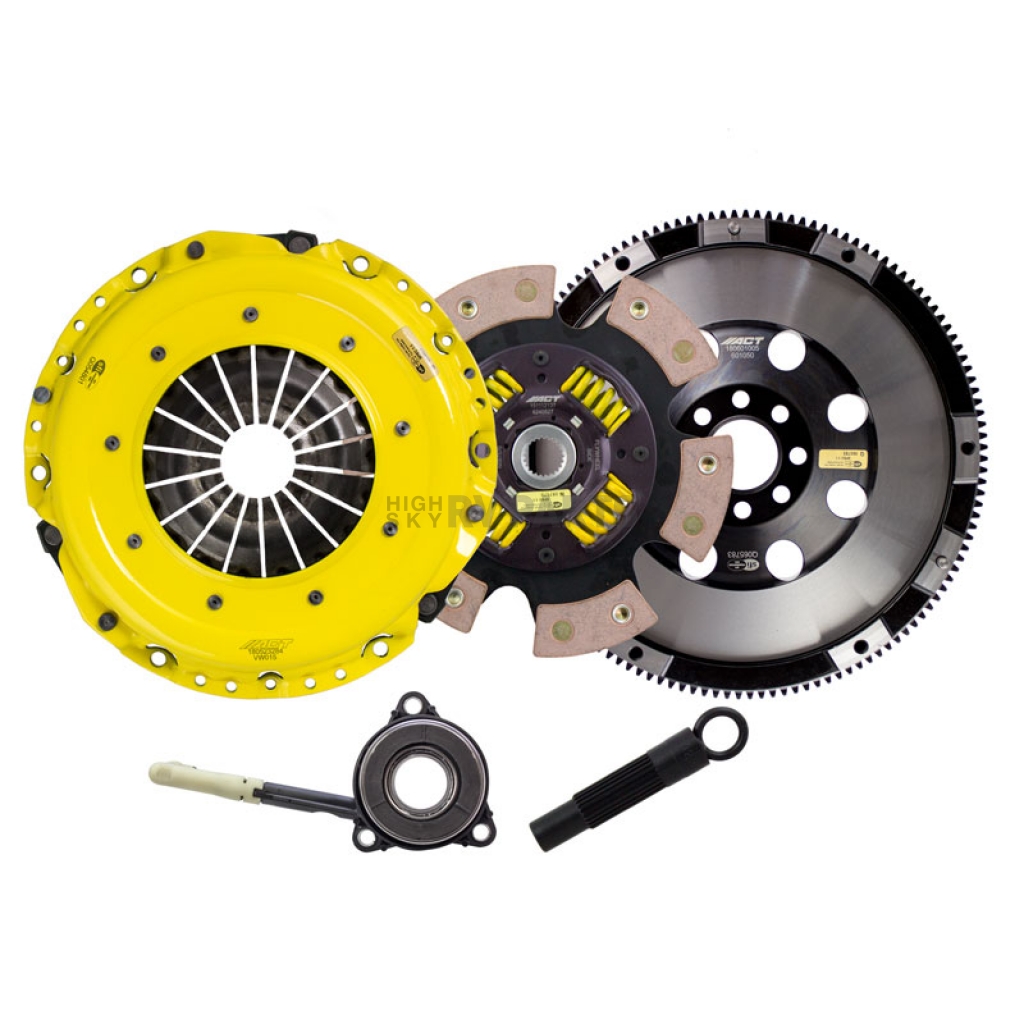

Clutch Set; Heavy Duty/ Race; 9.4 Inch Clutch Diameter; 15/16 Inch x 23 Spline Input Shaft; Diaphragm; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Sprung Hub; With Flywheel/ Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing

MPN: VW9-HDG6

Cutch kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 15/16 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.4 Inch
Disc Hub Design: Sprung
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 640 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Feel: Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
  • Life: Moderate Friction Life, Extended By Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
  • Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • Recommended For Race Use
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 12 Month Warranty
Specifications of Advanced Clutch Set Heavy Duty Sprung 6 Paddle - VW9-HDG6
Disc Diameter  9.4 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Sprung
Includes Alignment Tool  Yes
Input Shaft Size  15/16 Inch X 23 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Heavy Duty
Torque Holding Capacity  640 Feet/Pound

2015 Volkswagen Golf R
2016 Volkswagen Golf R
2017 Volkswagen Golf R
2018 Volkswagen Golf R
2019 Volkswagen Golf R

2015 Volkswagen GTI
2016 Volkswagen GTI
2017 Volkswagen GTI
