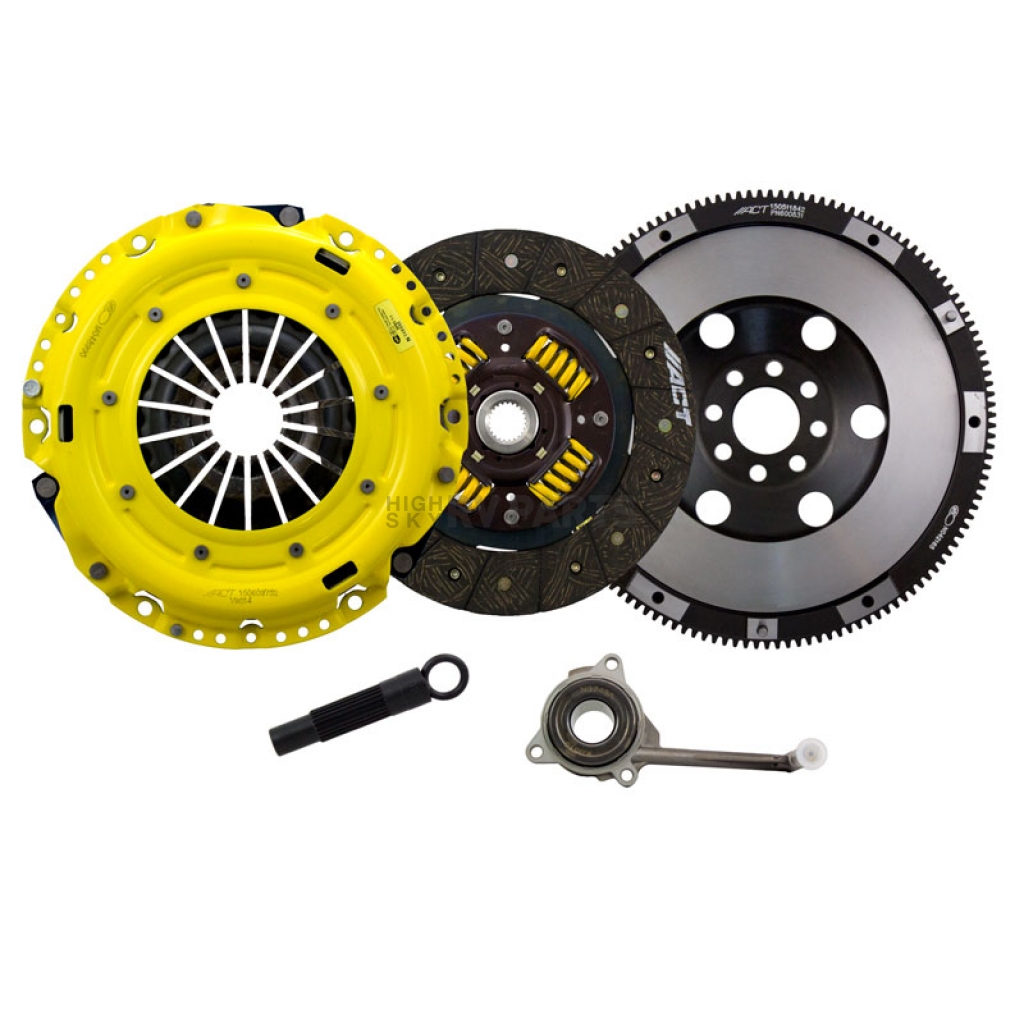

Advanced Clutch Set Diaphragm Sprung Full Face - VW8-HDSS

Brand: Advanced Clutch Advanced Clutch
  • Have a product question? Ask us
  • Part Number: VW8-HDSS
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $1,823.84
Price: $1,736.99
You Save: $86.85
Disc Diameter
 9.4 Inch
Disc Friction Face Design
 Full Face
Disc Friction Material
 Organic
Disc Hub Design
 Sprung
Flywheel Tooth Count
 135
Flywheel Weight
 15.7 Pound
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 Yes
Input Shaft Size
 15/16 Inch X 23 Spline
Number Of Friction Discs
 1 Disc
Share this page

Clutch Set; Street; 9.4 Inch Clutch Diameter; 15/16 Inch x 23 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Flywheel/ Clutch Disc/ Pressure Plate/ Alignment Tool

MPN: VW8-HDSS

Kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Pressure Plate Design: Diaphragm
Input Shaft Size: 15/16 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 9.4 Inch
Disc Hub Design: Sprung
Pressure Plate Material: Steel
Flywheel Weight: 15.7 Pound
Flywheel Tooth Count: 135
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: Full Face
Torque Holding Capacity: 395 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Heavy Duty Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
  • All Diaphragms Endure A Four-Stage, Heat-Treating Process For Unparalleled Performance
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Pressure Plates Have Precision Cover Stampings To Provide Rigidity And Consistency
  • Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
  • Street Discs Features Premium Organic Materials With High Copper Content For Better Heat Transfer And Steel-Backed Lining For Greater Burst Strength And Durability
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Sprung Full Face - VW8-HDSS
Disc Diameter  9.4 Inch
Disc Friction Face Design  Full Face
Disc Friction Material  Organic
Disc Hub Design  Sprung
Flywheel Tooth Count  135
Flywheel Weight  15.7 Pound
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  Yes
Input Shaft Size  15/16 Inch X 23 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Diaphragm
Pressure Plate Material  Steel
Torque Holding Capacity  395 Feet/Pound

2008 Audi A3
2009 Audi A3
2010 Audi A3
2011 Audi A3
2012 Audi A3
2013 Audi A3

2009 Volkswagen CC
2010 Volkswagen CC
2011 Volkswagen CC
2012 Volkswagen CC

2009 Volkswagen Eos
2010 Volkswagen Eos
2011 Volkswagen Eos
2012 Volkswagen Eos
2013 Volkswagen Eos
2014 Volkswagen Eos
2015 Volkswagen Eos
2016 Volkswagen Eos

2008 Volkswagen GTI
2009 Volkswagen GTI
2010 Volkswagen GTI
2011 Volkswagen GTI
2012 Volkswagen GTI
2013 Volkswagen GTI
2014 Volkswagen GTI
2015 Volkswagen GTI
2016 Volkswagen GTI
2017 Volkswagen GTI

2009 Volkswagen Jetta
2010 Volkswagen Jetta

2012 Volkswagen Jetta
2013 Volkswagen Jetta
2014 Volkswagen Jetta
2015 Volkswagen Jetta
2016 Volkswagen Jetta
2017 Volkswagen Jetta

2008 Volkswagen Passat
