Advanced Clutch Set Heavy Duty Sprung Single 6 Paddle - VW8-HDG6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: VW8-HDG6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $1,888.94
Price: $1,798.99
You Save: $89.95
Disc Diameter
 9.4 Inch
Disc Friction Face Design
 Single 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Sprung
Flywheel Tooth Count
 135
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 Yes
Input Shaft Size
 15/16 Inch X 23 Spline
Number Of Friction Discs
 1 Disc
Pressure Plate Design
 Heavy Duty
Share this page

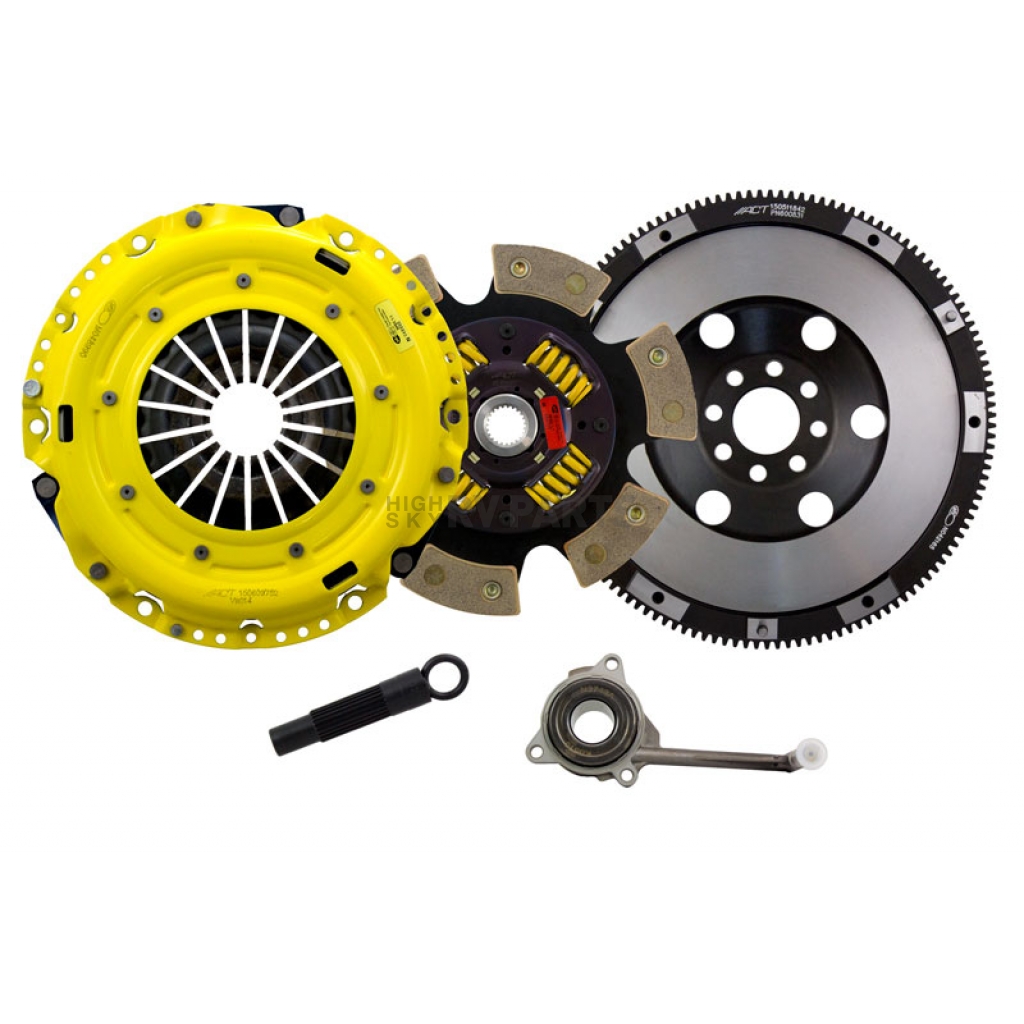

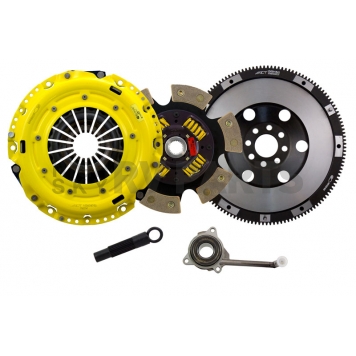

Clutch Set; Heavy Duty/ Race; 9.4 Inch Clutch Diameter; 15/16 Inch x 23 Spline Input Shaft; Diaphragm; 505 Foot Pound Torque Capacity; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Sprung Hub; 15.7 Pound 135 Tooth Flywheel; With Flywheel/ Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing

MPN: VW8-HDG6

Features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 15/16 Inch X 23 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9.4 Inch
Disc Hub Design: Sprung
Flywheel Tooth Count: 135
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: Single 6 Paddle
Torque Holding Capacity: 505 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Light To Moderate Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
  • Moderate Friction Life, Extended By Exclusive Diaphragm Design
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • Recommended For High Horsepower Street Or Race Use
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Sprung Single 6 Paddle - VW8-HDG6
Disc Diameter  9.4 Inch
Disc Friction Face Design  Single 6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Sprung
Flywheel Tooth Count  135
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  Yes
Input Shaft Size  15/16 Inch X 23 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Heavy Duty
Torque Holding Capacity  505 Feet/Pound

2008 Audi A3
2009 Audi A3
2010 Audi A3
2011 Audi A3
2012 Audi A3
2013 Audi A3

2009 Volkswagen CC
2010 Volkswagen CC
2011 Volkswagen CC
2012 Volkswagen CC

2009 Volkswagen Eos
2010 Volkswagen Eos
2011 Volkswagen Eos
2012 Volkswagen Eos
2013 Volkswagen Eos
2014 Volkswagen Eos
2015 Volkswagen Eos
2016 Volkswagen Eos

2008 Volkswagen GTI
2009 Volkswagen GTI
2010 Volkswagen GTI
2011 Volkswagen GTI
2012 Volkswagen GTI
2013 Volkswagen GTI
2014 Volkswagen GTI
2015 Volkswagen GTI
2016 Volkswagen GTI
2017 Volkswagen GTI

2009 Volkswagen Jetta
2010 Volkswagen Jetta

2012 Volkswagen Jetta
2013 Volkswagen Jetta
2014 Volkswagen Jetta
2015 Volkswagen Jetta
2016 Volkswagen Jetta
2017 Volkswagen Jetta

2008 Volkswagen Passat
