Advanced Clutch Set Diaphragm Sprung Full Face - VW6-HDSS

Name: Advanced Clutch Set Diaphragm Sprung Full Face - VW6-HDSS
Brand: Advanced Clutch
SKU: VW6-HDSS
Price: 1736.99 USD
Availability: InStock

Authorized Dealer

Brand:

Advanced Clutch

0 reviews

Have a product question? Ask us
Part Number: VW6-HDSS
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 18

Retail: $1,823.84

Price: $1,736.99

You Save: $86.85

Disc Diameter

9.4 Inch

Disc Friction Face Design

Full Face

Disc Friction Material

Organic

Disc Hub Design

Sprung

Flywheel Tooth Count

135

Flywheel Weight

16 Pound

Includes Alignment Tool

Yes

Includes Pilot Bearing

Includes Throwout Bearing

Yes

Input Shaft Size

15/16 Inch X 24 Spline

Number Of Friction Discs

1 Disc

Share this page

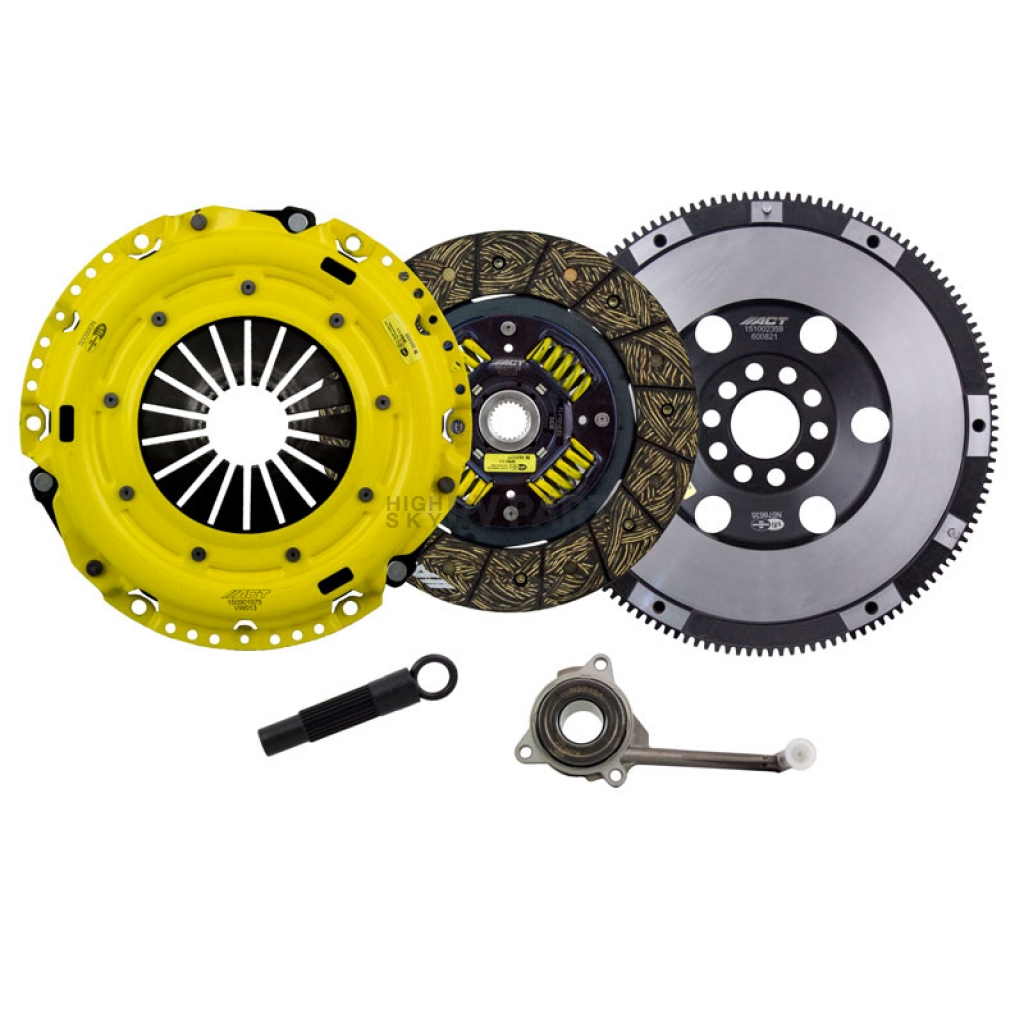

Clutch Set; Street; 9.4 Inch Clutch Diameter; 15/16 Inch x 24 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Flywheel/ Clutch Disc/ Pressure Plate/ Alignment Tool

MPN: VW6-HDSS

Kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Pressure Plate Design: Diaphragm

Input Shaft Size: 15/16 Inch X 24 Spline

Number Of Friction Discs: 1 Disc

Disc Friction Material: Organic

Disc Diameter: 9.4 Inch

Disc Hub Design: Sprung

Pressure Plate Material: Steel

Flywheel Weight: 16 Pound

Flywheel Tooth Count: 135

Includes Throwout Bearing: Yes

Includes Pilot Bearing: No

Disc Friction Face Design: Full Face

Torque Holding Capacity: 410 Feet/Pound

Includes Alignment Tool: Yes

Features

Heavy Duty Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
All Diaphragms Endure A Four-Stage, Heat-Treating Process For Unparalleled Performance
Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
Pressure Plates Have Precision Cover Stampings To Provide Rigidity And Consistency
Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
Street Discs Features Premium Organic Materials With High Copper Content For Better Heat Transfer And Steel-Backed Lining For Greater Burst Strength And Durability
Limited 1 Year Warranty

Specifications of Advanced Clutch Set Diaphragm Sprung Full Face - VW6-HDSS
Disc Diameter	9.4 Inch
Disc Friction Face Design	Full Face
Disc Friction Material	Organic
Disc Hub Design	Sprung
Flywheel Tooth Count	135
Flywheel Weight	16 Pound
Includes Alignment Tool	Yes
Includes Pilot Bearing	No
Includes Throwout Bearing	Yes
Input Shaft Size	15/16 Inch X 24 Spline
Number Of Friction Discs	1 Disc
Pressure Plate Design	Diaphragm
Pressure Plate Material	Steel
Torque Holding Capacity	410 Feet/Pound
