Advanced Clutch Set Diaphragm Sprung 6 Paddle - VW5-HDG6

Name: Advanced Clutch Set Diaphragm Sprung 6 Paddle - VW5-HDG6
Brand: Advanced Clutch
SKU: VW5-HDG6
Price: 1798.99 USD
Availability: InStock

Authorized Dealer

Brand:

Advanced Clutch

0 reviews

Have a product question? Ask us
Part Number: VW5-HDG6
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 18

Retail: $1,888.94

Price: $1,798.99

You Save: $89.95

Disc Diameter

9.4 Inch

Disc Friction Face Design

6 Paddle

Disc Friction Material

Ceramic

Disc Hub Design

Sprung

Flywheel Material

Chromoly Steel

Flywheel Tooth Count

135

Flywheel Weight

16 Pound

Includes Alignment Tool

Yes

Includes Pilot Bearing

Includes Throwout Bearing

Yes

Input Shaft Size

15/16 Inch X 23 Spline

Share this page

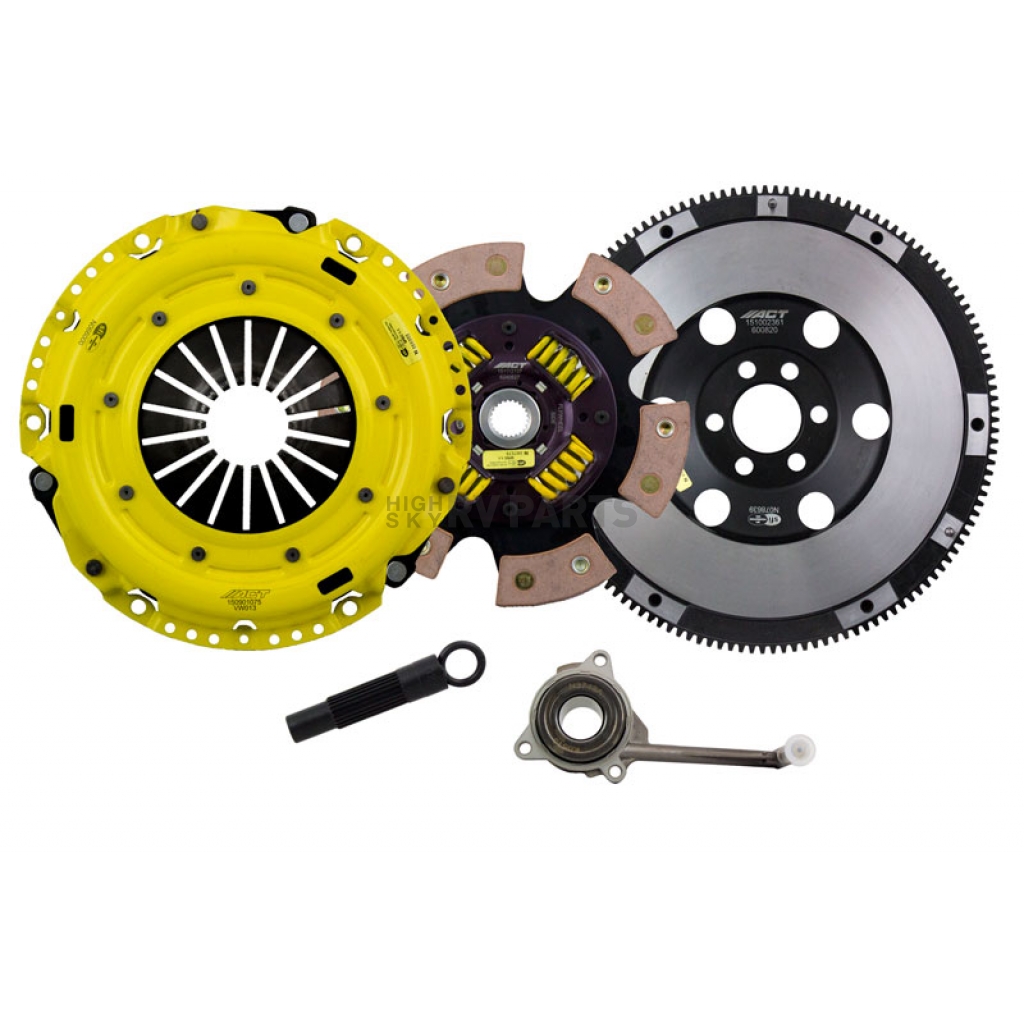

Clutch Set; Race; 9.4 Inch Clutch Diameter; 15/16 Inch x 23 Spline Input Shaft; Diaphragm; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Sprung Hub; With Flywheel/ Clutch Disc/ Pressure Plate/ Alignment Tool

MPN: VW5-HDG6

Kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-paddle, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Pressure Plate Design: Diaphragm

Input Shaft Size: 15/16 Inch X 23 Spline

Number Of Friction Discs: 1 Disc

Disc Friction Material: Ceramic

Disc Diameter: 9.4 Inch

Disc Hub Design: Sprung

Pressure Plate Material: Steel

Flywheel Weight: 16 Pound

Flywheel Tooth Count: 135

Flywheel Material: Chromoly Steel

Includes Throwout Bearing: Yes

Includes Pilot Bearing: No

Disc Friction Face Design: 6 Paddle

Pressure Plate Clamp Load: 9.5 Pound

Pressure Plate Centrifugal Assist: No Centrifugal Assist

Torque Holding Capacity: 525 Feet/Pound

Includes Alignment Tool: Yes

Features

Heavy Duty Pressure Plates Use Exclusive Diaphragm Design To Increase Clamp Load, Reduce Deflection And Maximize Clutch Life
All Diaphragms Endure A Four-Stage, Heat-Treating Process For Unparalleled Performance
Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
Spring-Centered Race Disc Features A Spring-Center To Properly Damp Torsional Vibrations And Resist Failure Under Harsh Conditions
Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design
Limited 1 Year Warranty

Specifications of Advanced Clutch Set Diaphragm Sprung 6 Paddle - VW5-HDG6
Disc Diameter	9.4 Inch
Disc Friction Face Design	6 Paddle
Disc Friction Material	Ceramic
Disc Hub Design	Sprung
Flywheel Material	Chromoly Steel
Flywheel Tooth Count	135
Flywheel Weight	16 Pound
Includes Alignment Tool	Yes
Includes Pilot Bearing	No
Includes Throwout Bearing	Yes
Input Shaft Size	15/16 Inch X 23 Spline
Number Of Friction Discs	1 Disc
Pressure Plate Centrifugal Assist	No Centrifugal Assist
Pressure Plate Clamp Load	9.5 Pound
Pressure Plate Design	Diaphragm
Pressure Plate Material	Steel
Torque Holding Capacity	525 Feet/Pound
