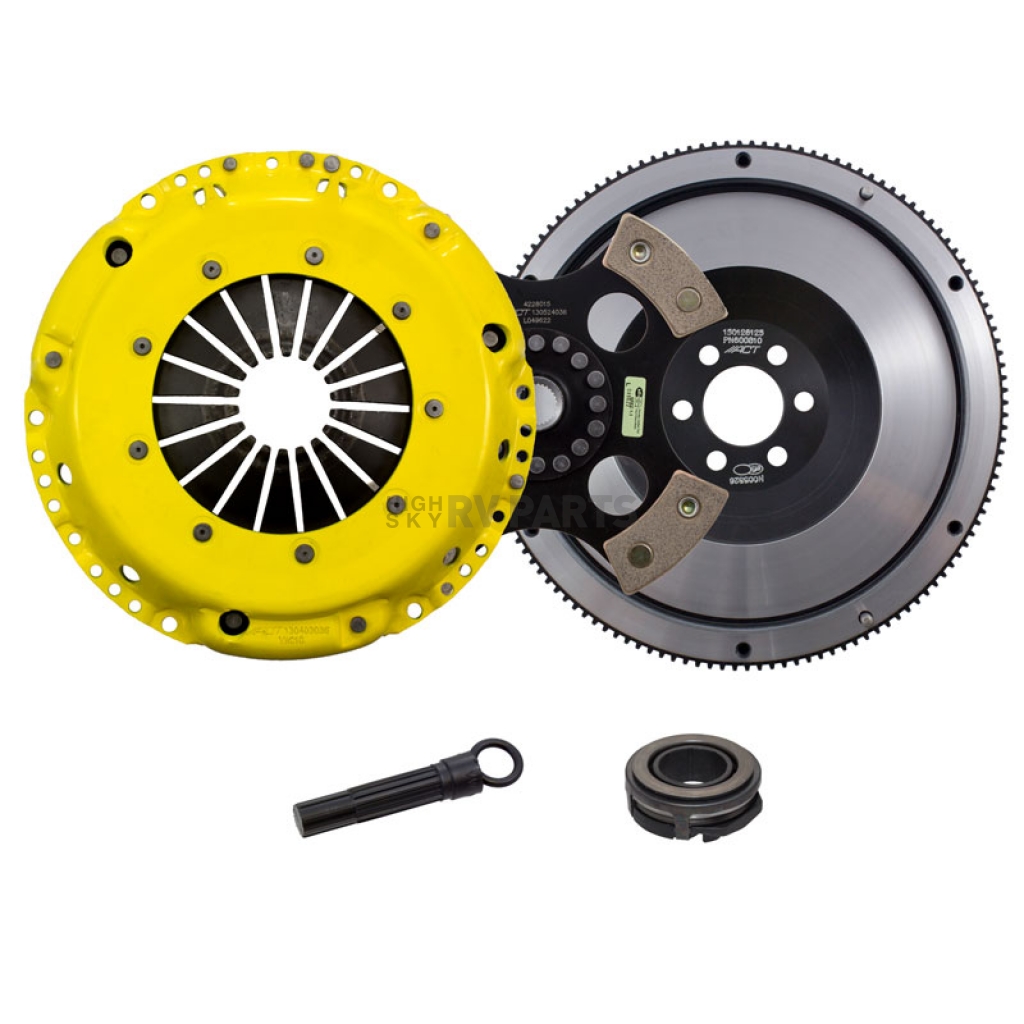

Advanced Clutch Set Heavy Duty Solid 4 Paddle - VR2-HDR4
Disc Diameter
9 Inch
Disc Friction Face Design
4 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Solid
Flywheel Tooth Count
132
Includes Alignment Tool
Yes
Includes Pilot Bearing
No
Includes Throwout Bearing
Yes
Input Shaft Size
7/8 Inch X 28 Spline
Number Of Friction Discs
1 Disc
Pressure Plate Design
Heavy Duty
Share this page
Clutch Set; Heavy Duty Race; 9 Inch Clutch Diameter; 7/8 Inch x 28 Spline Input Shaft; Diaphragm; 450 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Solid Hub; 132 Tooth Flywheel; With Throwout Bearing And Alignment Tool
MPN: VR2-HDR4
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.Pressure Plate Design: Heavy Duty
Input Shaft Size: 7/8 Inch X 28 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9 Inch
Disc Hub Design: Solid
Pressure Plate Material: Steel
Flywheel Tooth Count: 132
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: 4 Paddle
Torque Holding Capacity: 450 Feet/Pound
Includes Alignment Tool: Yes
Features
- A Low To Moderate Pedal Feel. Aggressive Engagement With Stock To Low To Moderate Gear Rattle
- Longer Clutch Life Achieved Through ACT's Exclusive Diaphragm Design
- Premium Ceramic Friction Materials Provide Low Wear Rates And High Heat Tolerance
- Dynamically Computer Balanced For Smooth Operation At High RPM
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Heavy Duty Solid 4 Paddle - VR2-HDR4 | |
| Disc Diameter | 9 Inch |
| Disc Friction Face Design | 4 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Solid |
| Flywheel Tooth Count | 132 |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | No |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 7/8 Inch X 28 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Heavy Duty |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 450 Feet/Pound |
2001 Audi TT Quattro
2002 Audi TT Quattro
2002 Audi TT Quattro
1998 Volkswagen Beetle
1999 Volkswagen Beetle
2000 Volkswagen Beetle
2001 Volkswagen Beetle
2002 Volkswagen Beetle
2003 Volkswagen Beetle
2004 Volkswagen Beetle
2005 Volkswagen Beetle
1999 Volkswagen Beetle
2000 Volkswagen Beetle
2001 Volkswagen Beetle
2002 Volkswagen Beetle
2003 Volkswagen Beetle
2004 Volkswagen Beetle
2005 Volkswagen Beetle
1999 Volkswagen Golf
2000 Volkswagen Golf
2001 Volkswagen Golf
2002 Volkswagen Golf
2003 Volkswagen Golf
2004 Volkswagen Golf
2005 Volkswagen Golf
2006 Volkswagen Golf
2000 Volkswagen Golf
2001 Volkswagen Golf
2002 Volkswagen Golf
2003 Volkswagen Golf
2004 Volkswagen Golf
2005 Volkswagen Golf
2006 Volkswagen Golf
2006 Volkswagen GTI
1998 Volkswagen Jetta
1999 Volkswagen Jetta
2000 Volkswagen Jetta
2001 Volkswagen Jetta
2002 Volkswagen Jetta
2003 Volkswagen Jetta
2004 Volkswagen Jetta
2005 Volkswagen Jetta
2006 Volkswagen Jetta
1999 Volkswagen Jetta
2000 Volkswagen Jetta
2001 Volkswagen Jetta
2002 Volkswagen Jetta
2003 Volkswagen Jetta
2004 Volkswagen Jetta
2005 Volkswagen Jetta
2006 Volkswagen Jetta
