Advanced Clutch Set Heavy Duty Sprung 6 Paddle - VR2-HDG6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: VR2-HDG6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $1,117.19
Price: $1,063.99
You Save: $53.20
Disc Diameter
 9 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Sprung
Flywheel Material
 Chromoly Steel
Flywheel Tooth Count
 132
Flywheel Weight
 16 Pound
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 Yes
Input Shaft Size
 7/8 Inch X 28 Spline
Share this page

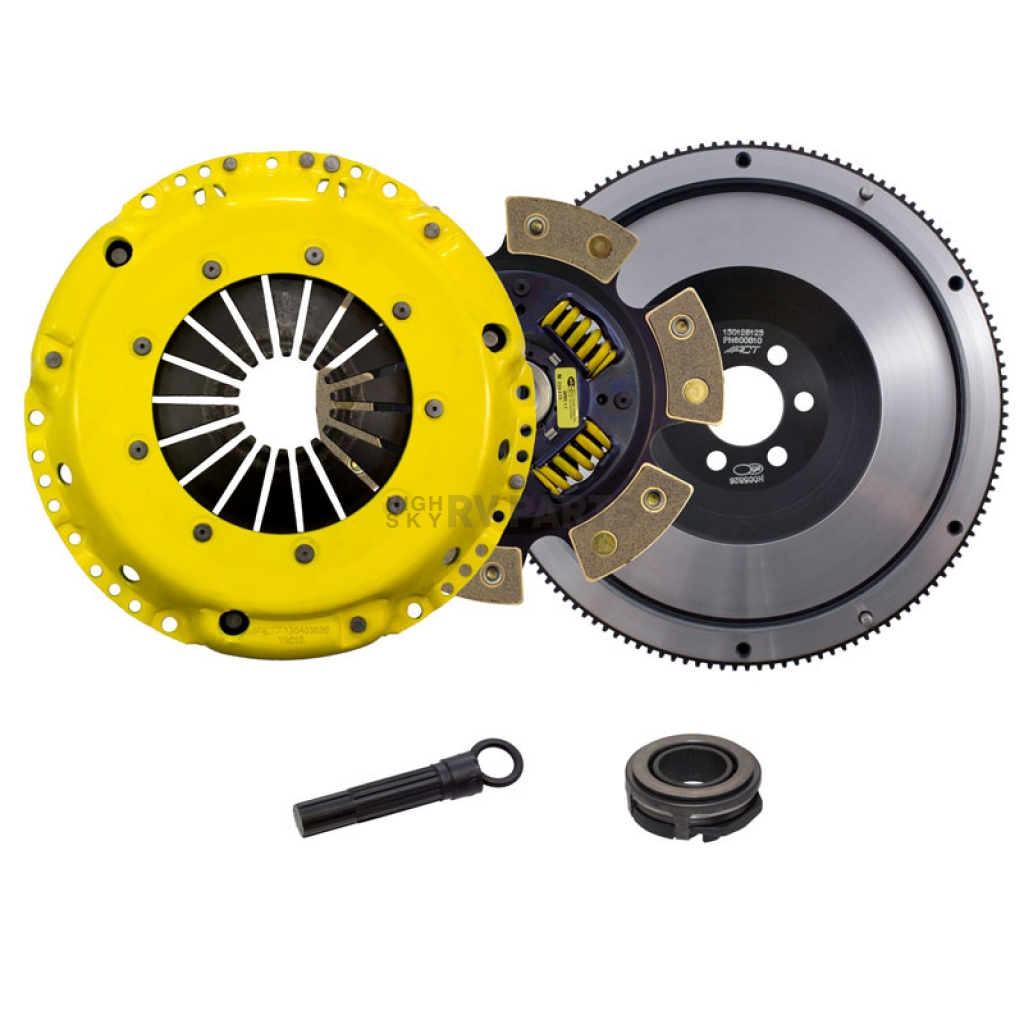

Clutch Set; Heavy Duty Race; 9 Inch Clutch Diameter; 7/8 Inch x 28 Spline Input Shaft; Diaphragm; 450 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Sprung Hub; 132 Tooth Flywheel; With Throwout Bearing And Alignment Tool

MPN: VR2-HDG6

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 7/8 Inch X 28 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 9 Inch
Disc Hub Design: Sprung
Pressure Plate Material: Steel
Flywheel Weight: 16 Pound
Flywheel Tooth Count: 132
Flywheel Material: Chromoly Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: 6 Paddle
Pressure Plate Clamp Load: 10.1 Pound
Pressure Plate Centrifugal Assist: No Centrifugal Assist
Torque Holding Capacity: 450 Feet/Pound
Includes Alignment Tool: Yes

Features

  • A Low To Moderate Pedal Feel. Aggressive Engagement With Stock To Low To Moderate Gear Rattle
  • Longer Clutch Life Achieved Through ACT's Exclusive Diaphragm Design
  • Premium Ceramic Friction Materials Provide Low Wear Rates And High Heat Tolerance
  • Dynamically Computer Balanced For Smooth Operation At High RPM
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Sprung 6 Paddle - VR2-HDG6
Disc Diameter  9 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Sprung
Flywheel Material  Chromoly Steel
Flywheel Tooth Count  132
Flywheel Weight  16 Pound
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  Yes
Input Shaft Size  7/8 Inch X 28 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Centrifugal Assist  No Centrifugal Assist
Pressure Plate Clamp Load  10.1 Pound
Pressure Plate Design  Heavy Duty
Pressure Plate Material  Steel
Torque Holding Capacity  450 Feet/Pound

2001 Audi TT Quattro
2002 Audi TT Quattro

1998 Volkswagen Beetle
1999 Volkswagen Beetle
2000 Volkswagen Beetle
2001 Volkswagen Beetle
2002 Volkswagen Beetle
2003 Volkswagen Beetle
2004 Volkswagen Beetle
2005 Volkswagen Beetle

1999 Volkswagen Golf
2000 Volkswagen Golf
2001 Volkswagen Golf
2002 Volkswagen Golf
2003 Volkswagen Golf
2004 Volkswagen Golf
2005 Volkswagen Golf
2006 Volkswagen Golf

2006 Volkswagen GTI

1998 Volkswagen Jetta
1999 Volkswagen Jetta
2000 Volkswagen Jetta
2001 Volkswagen Jetta
2002 Volkswagen Jetta
2003 Volkswagen Jetta
2004 Volkswagen Jetta
2005 Volkswagen Jetta
2006 Volkswagen Jetta
