Advanced Clutch Set Heavy Duty Solid 4 Paddle - VR1-HDR4

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: VR1-HDR4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $633.14
Price: $602.99
You Save: $30.15
Disc Diameter
 8.98 Inch
Disc Friction Face Design
 4 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Solid
Flywheel Material
 No Flywheel
Flywheel Tooth Count
 No Flywheel
Flywheel Weight
 No Flywheel
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 Yes
Input Shaft Size
 7/8 Inch X 28 Spline
Share this page

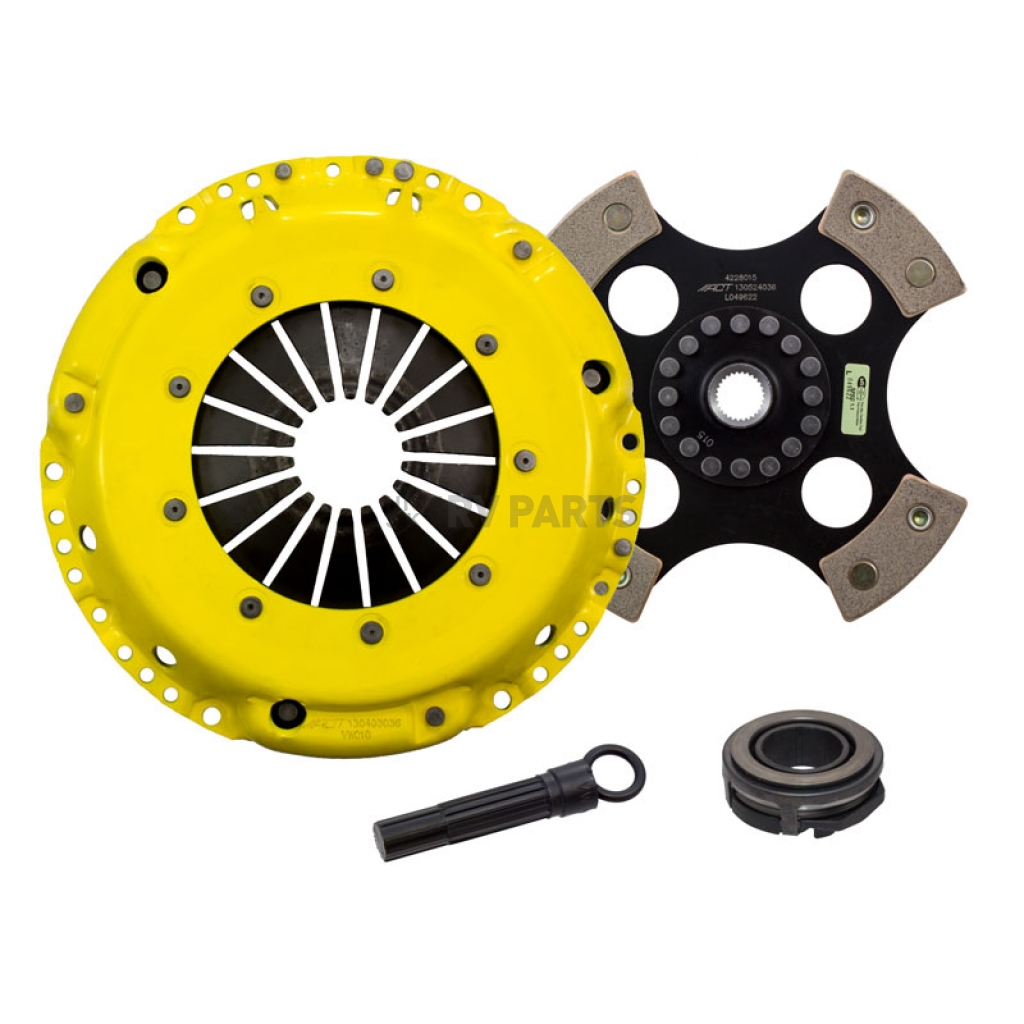

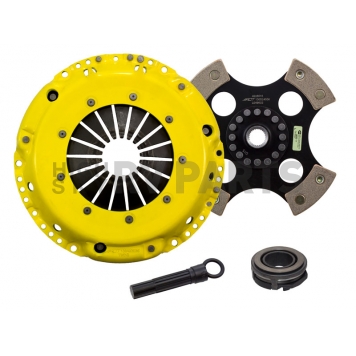

Clutch Set; Heavy Duty/ Race; 8.98 Inch Clutch Diameter; 7/8 Inch x 28 Spline Input Shaft; Diaphragm; 440 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Solid Hub; With Throwout Bearing And Alignment Tool

MPN: VR1-HDR4

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 7/8 Inch X 28 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 8.98 Inch
Disc Hub Design: Solid
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: 4 Paddle
Torque Holding Capacity: 440 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
  • Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Recommended For Race Use
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Solid 4 Paddle - VR1-HDR4
Disc Diameter  8.98 Inch
Disc Friction Face Design  4 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Solid
Flywheel Material  No Flywheel
Flywheel Tooth Count  No Flywheel
Flywheel Weight  No Flywheel
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  Yes
Input Shaft Size  7/8 Inch X 28 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Heavy Duty
Pressure Plate Material  Steel
Torque Holding Capacity  440 Feet/Pound

2000 Audi TT
2001 Audi TT
2002 Audi TT
2003 Audi TT
2004 Audi TT
2005 Audi TT
2006 Audi TT

1999 Volkswagen Beetle
2000 Volkswagen Beetle
2001 Volkswagen Beetle
2002 Volkswagen Beetle
2003 Volkswagen Beetle
2004 Volkswagen Beetle

1990 Volkswagen Corrado
1991 Volkswagen Corrado
1992 Volkswagen Corrado
1993 Volkswagen Corrado
1994 Volkswagen Corrado

1993 Volkswagen EuroVan

1995 Volkswagen Golf
1996 Volkswagen Golf
1997 Volkswagen Golf
1998 Volkswagen Golf
1999 Volkswagen Golf
2000 Volkswagen Golf
2001 Volkswagen Golf
2002 Volkswagen Golf
2003 Volkswagen Golf
2004 Volkswagen Golf
2005 Volkswagen Golf

1995 Volkswagen Jetta
1996 Volkswagen Jetta
1997 Volkswagen Jetta
1998 Volkswagen Jetta
1999 Volkswagen Jetta
2000 Volkswagen Jetta
2001 Volkswagen Jetta
2002 Volkswagen Jetta
2003 Volkswagen Jetta
2004 Volkswagen Jetta
2005 Volkswagen Jetta

1990 Volkswagen Passat
1991 Volkswagen Passat
1992 Volkswagen Passat
1993 Volkswagen Passat
1994 Volkswagen Passat
1995 Volkswagen Passat
1996 Volkswagen Passat
1997 Volkswagen Passat
