Advanced Clutch Set Heavy Duty Large Sprung Full Face - TS6-HDSS

Name: Advanced Clutch Set Heavy Duty Large Sprung Full Face - TS6-HDSS
Brand: Advanced Clutch
SKU: TS6-HDSS
Price: 553.99 USD
Availability: InStock

Authorized Dealer

Brand:

Advanced Clutch

0 reviews

Have a product question? Ask us
Part Number: TS6-HDSS
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 18

Retail: $581.69

Price: $553.99

You Save: $27.70

Disc Diameter

8.35 Inch

Disc Friction Face Design

Full Face

Disc Friction Material

Organic

Disc Hub Design

Large Sprung

Flywheel Material

No Flywheel

Flywheel Tooth Count

No Flywheel

Flywheel Weight

No Flywheel

Includes Alignment Tool

Includes Pilot Bearing

Includes Throwout Bearing

Yes

Input Shaft Size

15/16 Inch X 21 Spline

Share this page

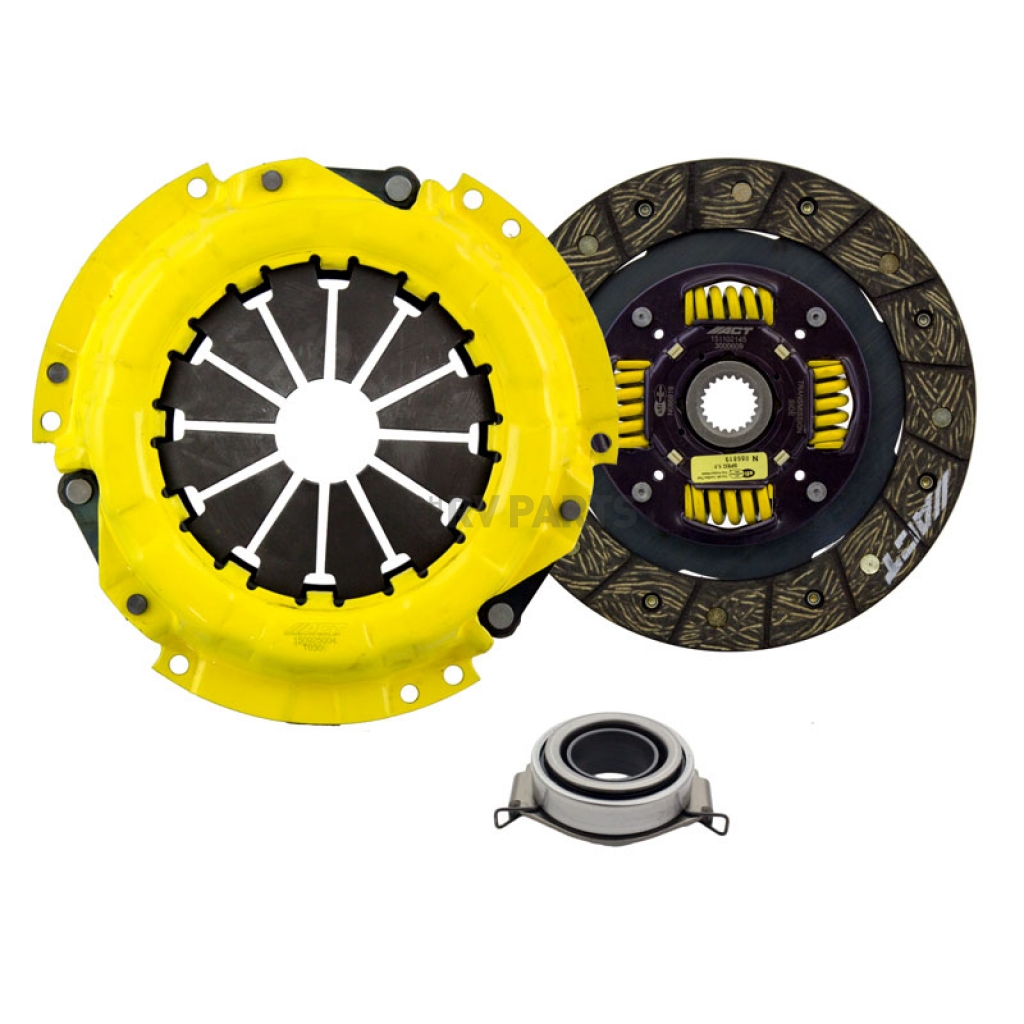

Clutch Set; Heavy Duty/ Performance Street; 8.35 Inch Clutch Diameter; 15/16 Inch x 21 Spline Input Shaft; Diaphragm; 240 Foot Pound Torque Capacity; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Throwout Bearing

MPN: TS6-HDSS

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Pressure Plate Design: Heavy Duty

Input Shaft Size: 15/16 Inch X 21 Spline

Number Of Friction Discs: 1 Disc

Disc Friction Material: Organic

Disc Diameter: 8.35 Inch

Disc Hub Design: Large Sprung

Flywheel Weight: No Flywheel

Flywheel Tooth Count: No Flywheel

Flywheel Material: No Flywheel

Includes Throwout Bearing: Yes

Includes Pilot Bearing: No

Disc Friction Face Design: Full Face

Torque Holding Capacity: 240 Feet/Pound

Includes Alignment Tool: No

Features

Light To Moderate Pedal Effort, Smooth Positive Engagement, OE To Mild Gear Rattle
Longer Friction Life, Extended By Exclusive Diaphragm Design
Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
Recommended For Street And Race Use
Limited 1 Year Warranty

Specifications of Advanced Clutch Set Heavy Duty Large Sprung Full Face - TS6-HDSS
Disc Diameter	8.35 Inch
Disc Friction Face Design	Full Face
Disc Friction Material	Organic
Disc Hub Design	Large Sprung
Flywheel Material	No Flywheel
Flywheel Tooth Count	No Flywheel
Flywheel Weight	No Flywheel
Includes Alignment Tool	No
Includes Pilot Bearing	No
Includes Throwout Bearing	Yes
Input Shaft Size	15/16 Inch X 21 Spline
Number Of Friction Discs	1 Disc
Pressure Plate Design	Heavy Duty
Torque Holding Capacity	240 Feet/Pound
