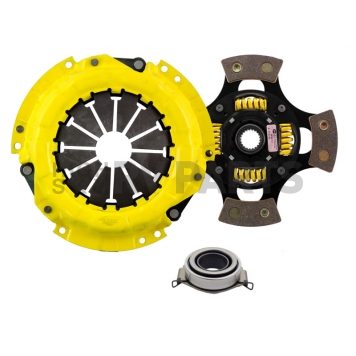

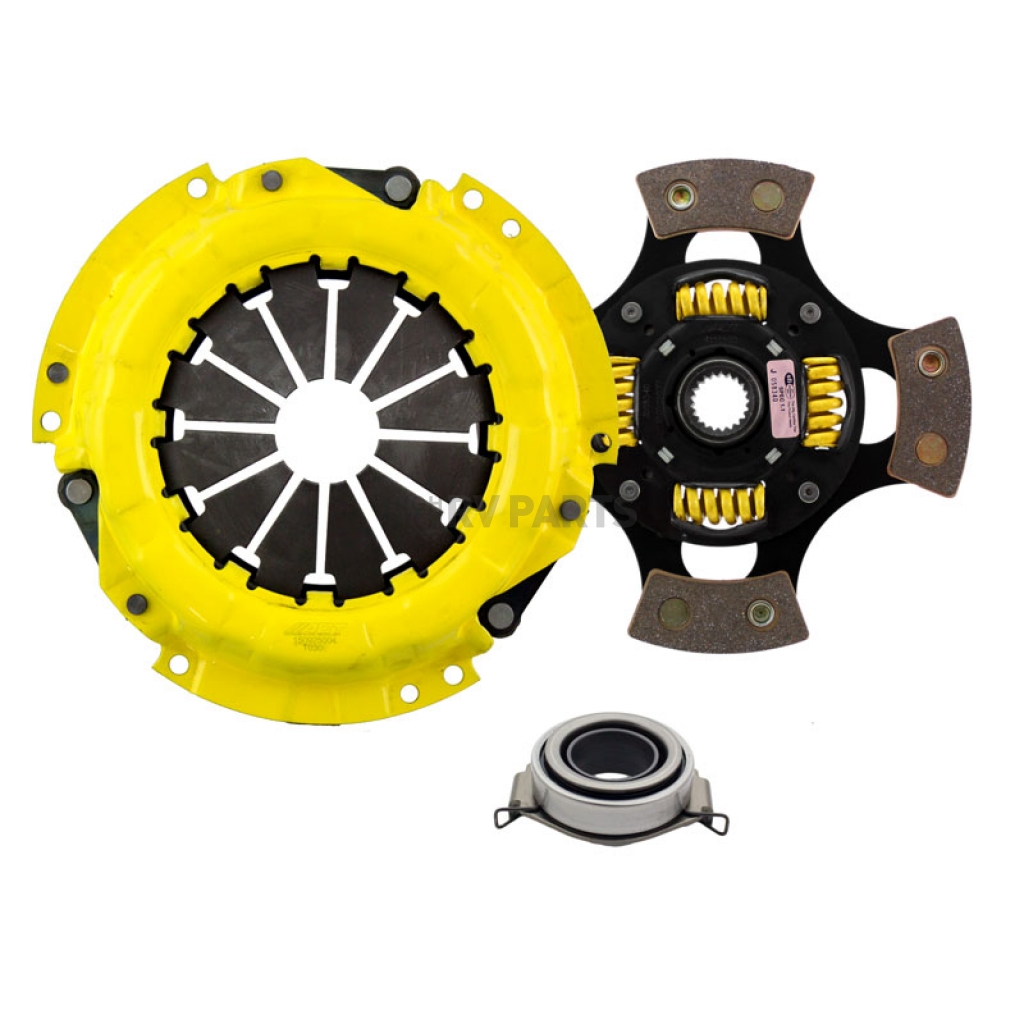

Advanced Clutch Set Heavy Duty Small Sprung 4 Paddle - TS6-HDG4
Disc Diameter
8.35 Inch
Disc Friction Face Design
4 Paddle
Disc Friction Material
Ceramic
Disc Hub Design
Small Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
No
Includes Pilot Bearing
No
Includes Throwout Bearing
Yes
Input Shaft Size
15/16 Inch X 21 Spline
Share this page
Clutch Set; Heavy Duty/ Race; 8.35 Inch Clutch Diameter; 15/16 Inch x 21 Spline Input Shaft; Diaphragm; 305 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Sprung Hub; With Throwout Bearing
MPN: TS6-HDG4
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.Pressure Plate Design: Heavy Duty
Input Shaft Size: 15/16 Inch X 21 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 8.35 Inch
Disc Hub Design: Small Sprung
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: 4 Paddle
Torque Holding Capacity: 305 Feet/Pound
Includes Alignment Tool: No
Features
- Moderate To Heavy Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
- Moderate Friction Life, Extended By Exclusive Diaphragm Design
- Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Recommended For Street And Race Use
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Heavy Duty Small Sprung 4 Paddle - TS6-HDG4 | |
| Disc Diameter | 8.35 Inch |
| Disc Friction Face Design | 4 Paddle |
| Disc Friction Material | Ceramic |
| Disc Hub Design | Small Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | No |
| Includes Pilot Bearing | No |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 15/16 Inch X 21 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Heavy Duty |
| Pressure Plate Material | Steel |
| Torque Holding Capacity | 305 Feet/Pound |
2004 Scion xA
2005 Scion xA
2006 Scion xA
2005 Scion xA
2006 Scion xA
2004 Scion xB
2005 Scion xB
2006 Scion xB
2005 Scion xB
2006 Scion xB
2000 Toyota Echo
2001 Toyota Echo
2002 Toyota Echo
2003 Toyota Echo
2004 Toyota Echo
2005 Toyota Echo
2001 Toyota Echo
2002 Toyota Echo
2003 Toyota Echo
2004 Toyota Echo
2005 Toyota Echo
2007 Toyota Yaris
2008 Toyota Yaris
2009 Toyota Yaris
2010 Toyota Yaris
2011 Toyota Yaris
2012 Toyota Yaris
2013 Toyota Yaris
2014 Toyota Yaris
2015 Toyota Yaris
2008 Toyota Yaris
2009 Toyota Yaris
2010 Toyota Yaris
2011 Toyota Yaris
2012 Toyota Yaris
2013 Toyota Yaris
2014 Toyota Yaris
2015 Toyota Yaris
