Advanced Clutch Set Diaphragm Sprung Single Full Face - TL1-XTSS
Disc Diameter
7.9 Inch
Disc Friction Face Design
Single Full Face
Disc Friction Material
Organic
Disc Hub Design
Sprung
Flywheel Material
No Flywheel
Flywheel Tooth Count
No Flywheel
Flywheel Weight
No Flywheel
Includes Alignment Tool
Yes
Includes Pilot Bearing
Yes
Includes Throwout Bearing
Yes
Input Shaft Size
15/16 Inch X 21 Spline
Share this page

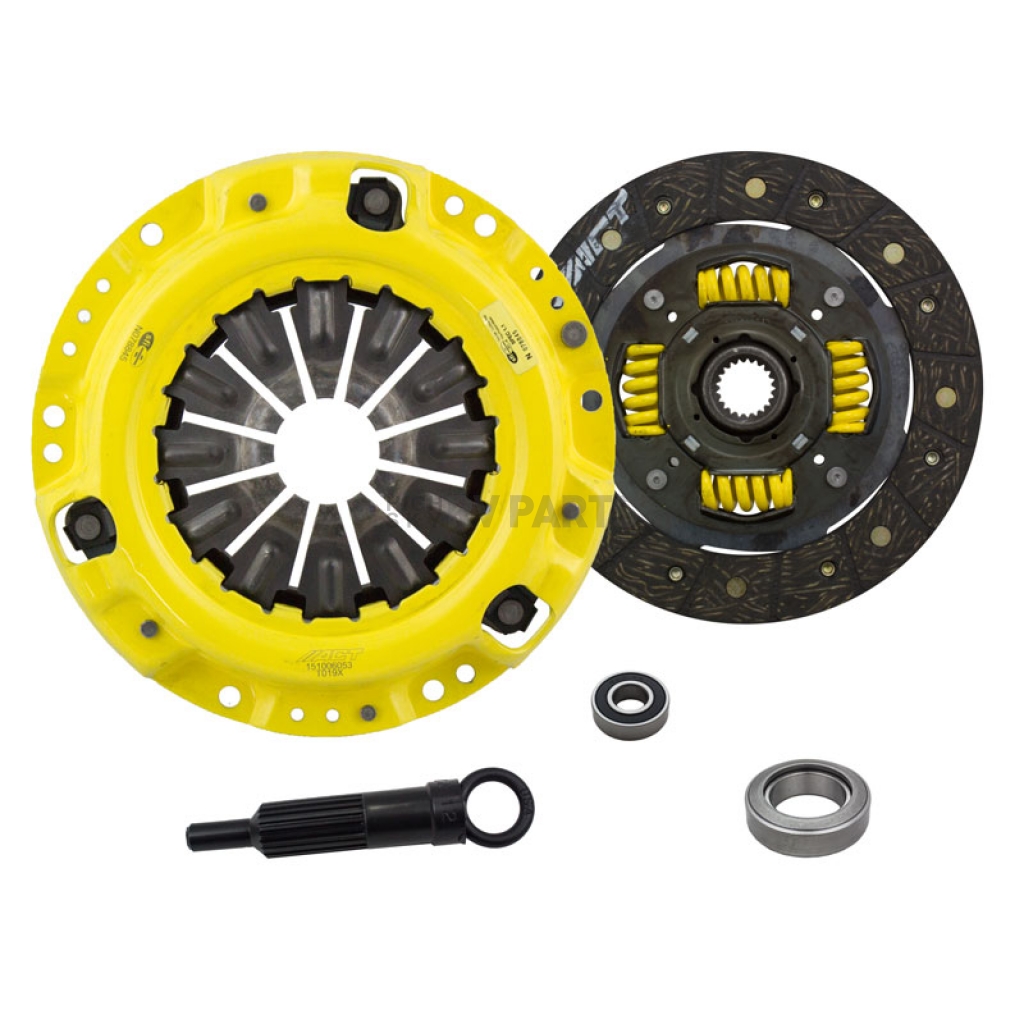

Clutch Set; Xtreme/ Performance Street; 7.9 Inch Clutch Diameter; 15/16 Inch x 21 Spline Input Shaft; Diaphragm; 285 Foot Pound Torque Capacity; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Clutch Disc/ Pressure Plate/ Alignment Tool/ Release Bearing/ Pilot Bearing
MPN: TL1-XTSS
Features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.Pressure Plate Design: Diaphragm
Input Shaft Size: 15/16 Inch X 21 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Organic
Disc Diameter: 7.9 Inch
Disc Hub Design: Sprung
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: Single Full Face
Torque Holding Capacity: 285 Feet/Pound
Includes Alignment Tool: Yes
Features
- Moderate To Heavy Pedal Effort, Smooth Engagement, OE To Mild Gear Rattle
- Longer Friction Life, Extended By Exclusive Diaphragm Design
- Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
- Recommended For Street And Race Use
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Diaphragm Sprung Single Full Face - TL1-XTSS | |
| Disc Diameter | 7.9 Inch |
| Disc Friction Face Design | Single Full Face |
| Disc Friction Material | Organic |
| Disc Hub Design | Sprung |
| Flywheel Material | No Flywheel |
| Flywheel Tooth Count | No Flywheel |
| Flywheel Weight | No Flywheel |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | Yes |
| Includes Throwout Bearing | Yes |
| Input Shaft Size | 15/16 Inch X 21 Spline |
| Number Of Friction Discs | 1 Disc |
| Pressure Plate Design | Diaphragm |
| Torque Holding Capacity | 285 Feet/Pound |
1980 Toyota Corolla
1981 Toyota Corolla
1982 Toyota Corolla
1981 Toyota Corolla
1982 Toyota Corolla
1985 Toyota Corolla
1986 Toyota Corolla
1987 Toyota Corolla
1986 Toyota Corolla
1987 Toyota Corolla
