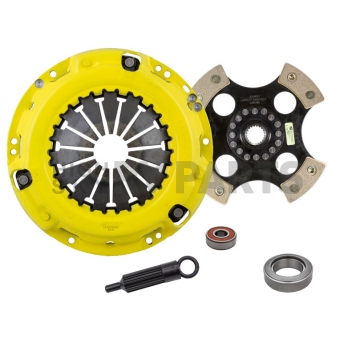

Advanced Clutch Set Heavy Duty Solid 4 Paddle - TC5-HDR4

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: TC5-HDR4
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $532.34
Price: $506.99
You Save: $25.35
Disc Diameter
 8.82 Inch
Disc Friction Face Design
 4 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Solid
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 Yes
Includes Throwout Bearing
 Yes
Input Shaft Size
 1-1/8 Inch X 21 Spline
Number Of Friction Discs
 1 Disc
Pressure Plate Design
 Heavy Duty
Pressure Plate Material
 Steel
Share this page

Clutch Set; Heavy Duty/ Race; 8.82 Inch Clutch Diameter; 1-1/8 Inch x 21 Spline Input Shaft; Diaphragm; 355 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Solid Hub; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool

MPN: TC5-HDR4

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 1-1/8 Inch X 21 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 8.82 Inch
Disc Hub Design: Solid
Pressure Plate Material: Steel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: Yes
Disc Friction Face Design: 4 Paddle
Torque Holding Capacity: 355 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
  • Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Recommended For Race Use
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Solid 4 Paddle - TC5-HDR4
Disc Diameter  8.82 Inch
Disc Friction Face Design  4 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Solid
Includes Alignment Tool  Yes
Includes Pilot Bearing  Yes
Includes Throwout Bearing  Yes
Input Shaft Size  1-1/8 Inch X 21 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Heavy Duty
Pressure Plate Material  Steel
Torque Holding Capacity  355 Feet/Pound

1984 Toyota 4Runner
1985 Toyota 4Runner
1986 Toyota 4Runner
1987 Toyota 4Runner
1988 Toyota 4Runner

1977 Toyota Celica
1978 Toyota Celica
1979 Toyota Celica
1980 Toyota Celica
1981 Toyota Celica
1982 Toyota Celica
1983 Toyota Celica
1984 Toyota Celica
1985 Toyota Celica

1977 Toyota Corona
1978 Toyota Corona
1979 Toyota Corona
1980 Toyota Corona
1981 Toyota Corona

1978 Toyota Pickup
1979 Toyota Pickup
1980 Toyota Pickup
1981 Toyota Pickup
1982 Toyota Pickup
1983 Toyota Pickup
1984 Toyota Pickup
1985 Toyota Pickup
1986 Toyota Pickup
1987 Toyota Pickup
1988 Toyota Pickup

1986 Toyota Van
1987 Toyota Van
1988 Toyota Van
