Advanced Clutch Set Heavy Duty Solid 4 Paddle - TC3-HDR4

Name: Advanced Clutch Set Heavy Duty Solid 4 Paddle - TC3-HDR4
Brand: Advanced Clutch
SKU: TC3-HDR4
Price: 508.99 USD
Availability: InStock

Authorized Dealer

Brand:

Advanced Clutch

0 reviews

Have a product question? Ask us
Part Number: TC3-HDR4
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 18

Retail: $534.44

Price: $508.99

You Save: $25.45

Disc Diameter

8.82 Inch

Disc Friction Face Design

4 Paddle

Disc Friction Material

Ceramic

Disc Hub Design

Solid

Includes Alignment Tool

Yes

Includes Pilot Bearing

Yes

Includes Throwout Bearing

Yes

Input Shaft Size

1-1/8 Inch X 21 Spline

Number Of Friction Discs

1 Disc

Pressure Plate Design

Heavy Duty

Pressure Plate Material

Steel

Share this page

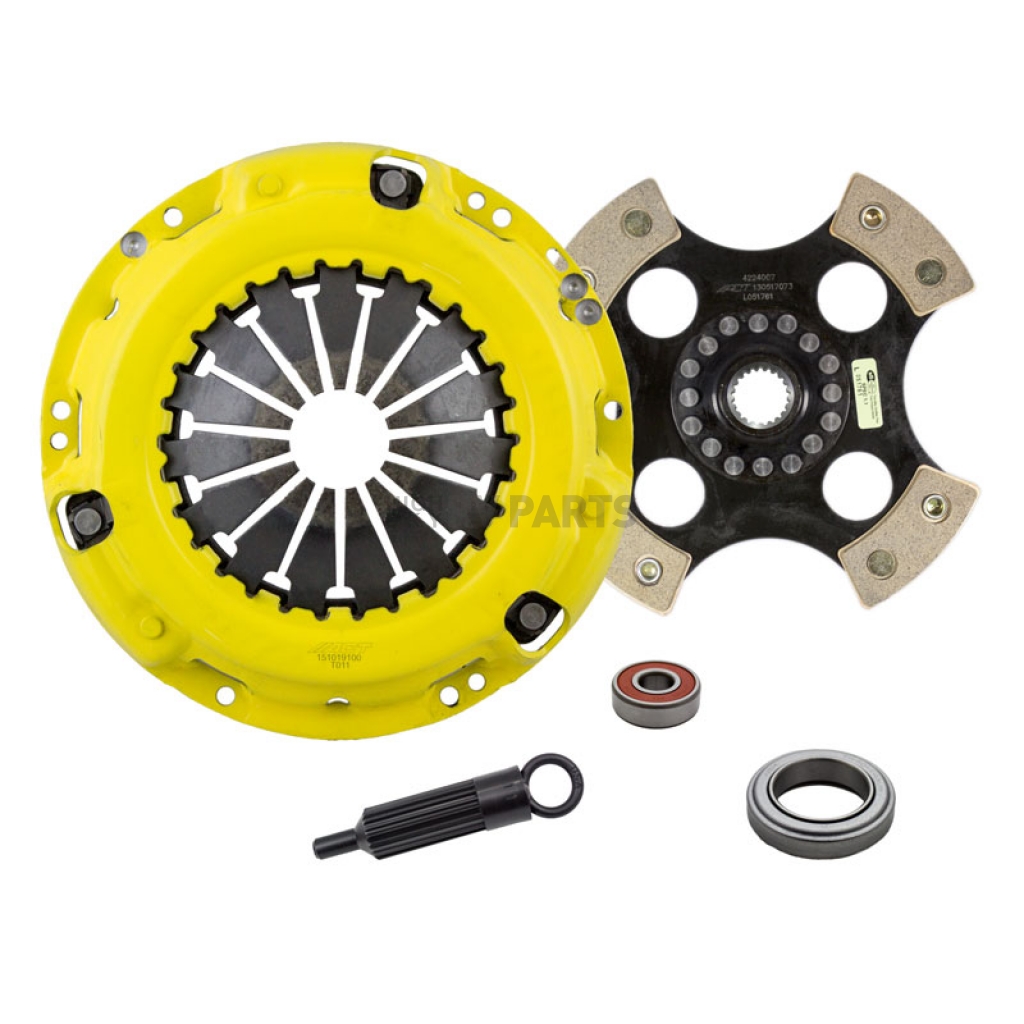

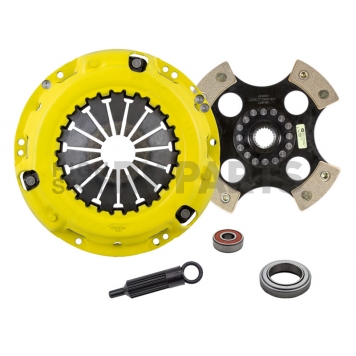

Clutch Set; Heavy Duty/ Race; 8.82 Inch Clutch Diameter; 1-1/8 Inch x 21 Spline Input Shaft; Diaphragm; 355 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 4 Paddle Design/ Solid Hub; With Flywheel/ Throwout Bearing/ Pilot Bearing/ Alignment Tool

MPN: TC3-HDR4

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Pressure Plate Design: Heavy Duty

Input Shaft Size: 1-1/8 Inch X 21 Spline

Number Of Friction Discs: 1 Disc

Disc Friction Material: Ceramic

Disc Diameter: 8.82 Inch

Disc Hub Design: Solid

Pressure Plate Material: Steel

Includes Throwout Bearing: Yes

Includes Pilot Bearing: Yes

Disc Friction Face Design: 4 Paddle

Torque Holding Capacity: 355 Feet/Pound

Includes Alignment Tool: Yes

Features

Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
Recommended For Race Use
Limited 1 Year Warranty

Specifications of Advanced Clutch Set Heavy Duty Solid 4 Paddle - TC3-HDR4
Disc Diameter	8.82 Inch
Disc Friction Face Design	4 Paddle
Disc Friction Material	Ceramic
Disc Hub Design	Solid
Includes Alignment Tool	Yes
Includes Pilot Bearing	Yes
Includes Throwout Bearing	Yes
Input Shaft Size	1-1/8 Inch X 21 Spline
Number Of Friction Discs	1 Disc
Pressure Plate Design	Heavy Duty
Pressure Plate Material	Steel
Torque Holding Capacity	355 Feet/Pound
