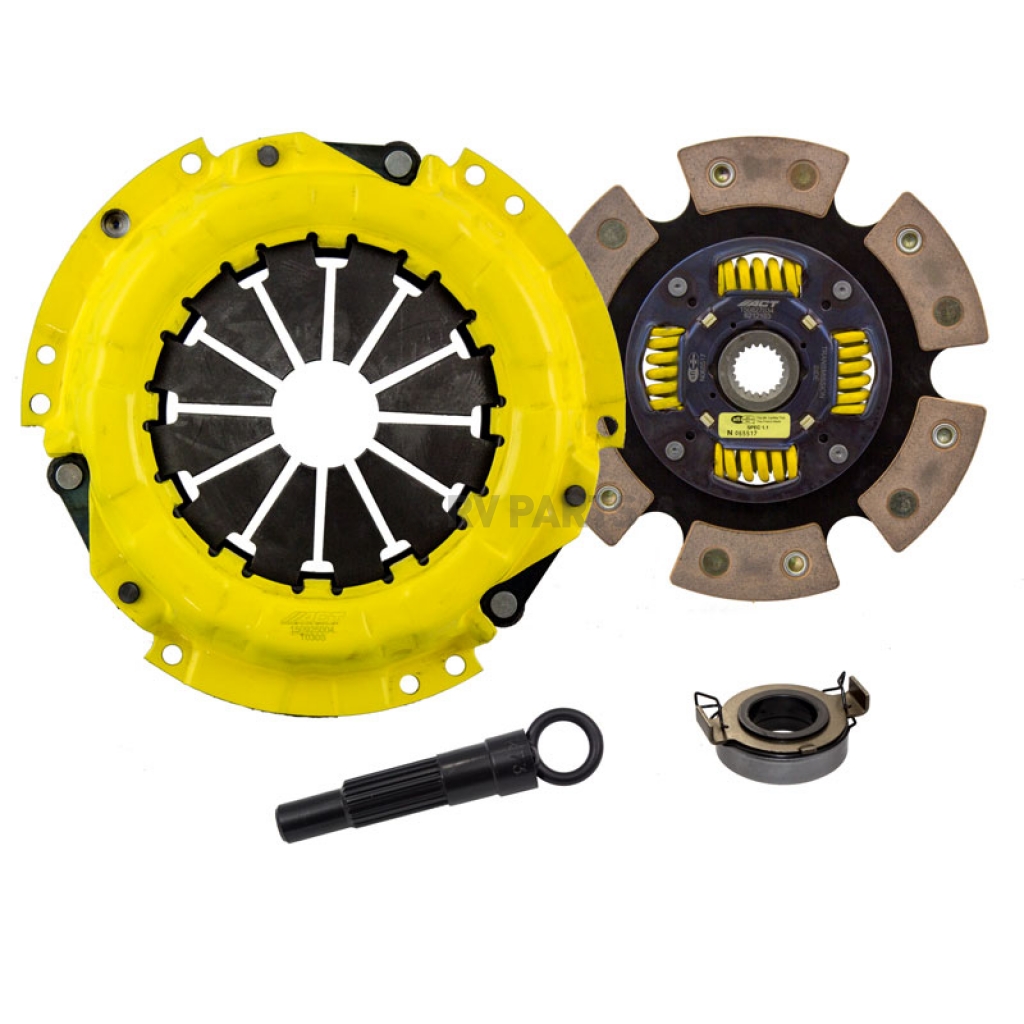

Advanced Clutch Set Diaphragm Sprung 6 Paddle - TC2-SPG6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: TC2-SPG6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $563.84
Price: $536.99
You Save: $26.85
Disc Diameter
 8.35 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Sprung
Flywheel Material
 No Flywheel
Flywheel Tooth Count
 No Flywheel
Flywheel Weight
 No Flywheel
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 Yes
Input Shaft Size
 15/16 Inch X 21 Spline
Share this page

Clutch Set; Race; 8.35 Inch Clutch Diameter; 15/16 Inch x 21 Spline Input Shaft; Diaphragm; 285 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Sprung Hub; With Throwout Bearing And Alignment Tool

MPN: TC2-SPG6

ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Pressure Plate Design: Diaphragm
Input Shaft Size: 15/16 Inch X 21 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 8.35 Inch
Disc Hub Design: Sprung
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: Yes
Includes Pilot Bearing: No
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 285 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Light To Moderate Pedal Effort, Aggressive Engagement, OE To Mild Gear Rattle
  • Moderate Friction Life, Extended By Exclusive Diaphragm Design
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • Recommended For High Horsepower Street Or Race Use
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Sprung 6 Paddle - TC2-SPG6
Disc Diameter  8.35 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Sprung
Flywheel Material  No Flywheel
Flywheel Tooth Count  No Flywheel
Flywheel Weight  No Flywheel
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  Yes
Input Shaft Size  15/16 Inch X 21 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Diaphragm
Pressure Plate Material  Steel
Torque Holding Capacity  285 Feet/Pound

1991 Geo Prizm
1992 Geo Prizm
1993 Geo Prizm
1994 Geo Prizm
1995 Geo Prizm
1996 Geo Prizm
1997 Geo Prizm

2003 Pontiac Vibe
2004 Pontiac Vibe
2005 Pontiac Vibe
2006 Pontiac Vibe
2007 Pontiac Vibe
2008 Pontiac Vibe

1991 Toyota Celica
1992 Toyota Celica
1993 Toyota Celica
1994 Toyota Celica
1995 Toyota Celica
1996 Toyota Celica
1997 Toyota Celica

2000 Toyota Celica
2001 Toyota Celica
2002 Toyota Celica
2003 Toyota Celica
2004 Toyota Celica
2005 Toyota Celica

1992 Toyota Corolla
1993 Toyota Corolla
1994 Toyota Corolla
1995 Toyota Corolla
1996 Toyota Corolla
1997 Toyota Corolla
1998 Toyota Corolla
1999 Toyota Corolla
2000 Toyota Corolla
2001 Toyota Corolla
2002 Toyota Corolla
2003 Toyota Corolla
2004 Toyota Corolla
2005 Toyota Corolla
2006 Toyota Corolla
2007 Toyota Corolla
2008 Toyota Corolla

2003 Toyota Matrix
2004 Toyota Matrix
2005 Toyota Matrix
2006 Toyota Matrix
2007 Toyota Matrix
2008 Toyota Matrix

2000 Toyota MR2 Spyder
2001 Toyota MR2 Spyder
2002 Toyota MR2 Spyder
2003 Toyota MR2 Spyder
2004 Toyota MR2 Spyder
2005 Toyota MR2 Spyder
