Advanced Clutch Set Diaphragm Large Sprung Full Face - TC2-HDSS

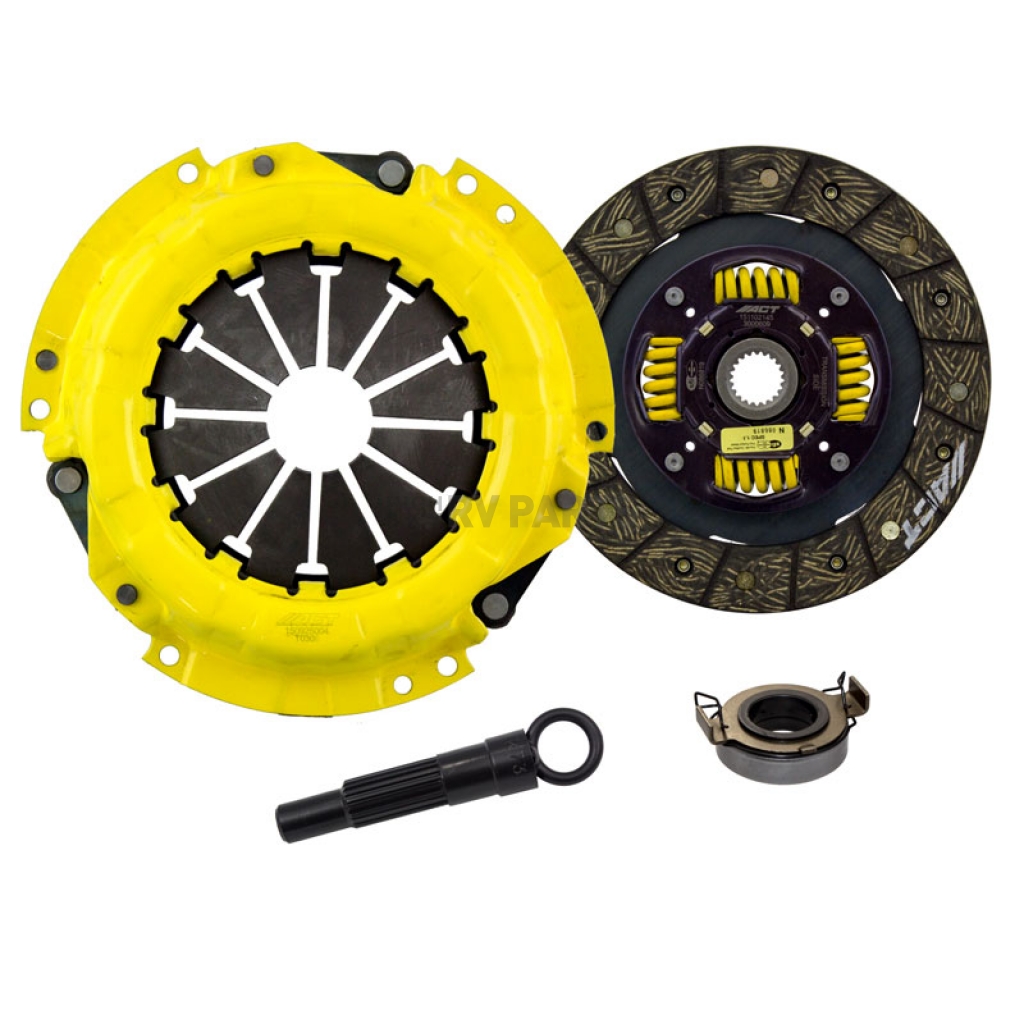

Clutch Set; Street; 8.35 Inch Clutch Diameter; 15/16 Inch x 21 Spline Input Shaft; Diaphragm; 240 Foot Pound Torque Capacity; Single Disc/ Organic Friction Material; Full Face Design/ Sprung Hub; With Throwout Bearing And Alignment Tool
MPN: TC2-HDSS
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.Features
- Light To Moderate Pedal Effort, Smooth Positive Engagement, OE To Mild Gear Rattle
- Longer Friction Life, Extended By Exclusive Diaphragm Design
- Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
- Recommended For Street Or Race Use
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Large Sprung Full Face - TC2-HDSS | |
Disc Diameter | 8.35 Inch |
Disc Friction Face Design | Full Face |
Disc Friction Material | Organic |
Disc Hub Design | Large Sprung |
Flywheel Material | No Flywheel |
Flywheel Tooth Count | No Flywheel |
Flywheel Weight | No Flywheel |
Includes Alignment Tool | Yes |
Includes Pilot Bearing | No |
Includes Throwout Bearing | Yes |
Input Shaft Size | 15/16 Inch X 21 Spline |
Number Of Friction Discs | 1 Disc |
Pressure Plate Design | Diaphragm |
Torque Holding Capacity | 240 Feet/Pound |
1992 Geo Prizm
1993 Geo Prizm
1994 Geo Prizm
1995 Geo Prizm
1996 Geo Prizm
1997 Geo Prizm
2004 Pontiac Vibe
2005 Pontiac Vibe
2006 Pontiac Vibe
2007 Pontiac Vibe
2008 Pontiac Vibe
1992 Toyota Celica
1993 Toyota Celica
1994 Toyota Celica
1995 Toyota Celica
1996 Toyota Celica
1997 Toyota Celica
2001 Toyota Celica
2002 Toyota Celica
2003 Toyota Celica
2004 Toyota Celica
2005 Toyota Celica
1993 Toyota Corolla
1994 Toyota Corolla
1995 Toyota Corolla
1996 Toyota Corolla
1997 Toyota Corolla
1998 Toyota Corolla
1999 Toyota Corolla
2000 Toyota Corolla
2001 Toyota Corolla
2002 Toyota Corolla
2003 Toyota Corolla
2004 Toyota Corolla
2005 Toyota Corolla
2006 Toyota Corolla
2007 Toyota Corolla
2008 Toyota Corolla
2004 Toyota Matrix
2005 Toyota Matrix
2006 Toyota Matrix
2007 Toyota Matrix
2008 Toyota Matrix
2001 Toyota MR2 Spyder
2002 Toyota MR2 Spyder
2003 Toyota MR2 Spyder
2004 Toyota MR2 Spyder
2005 Toyota MR2 Spyder
No questions found. Be the first?
There are no reviews for this product.
