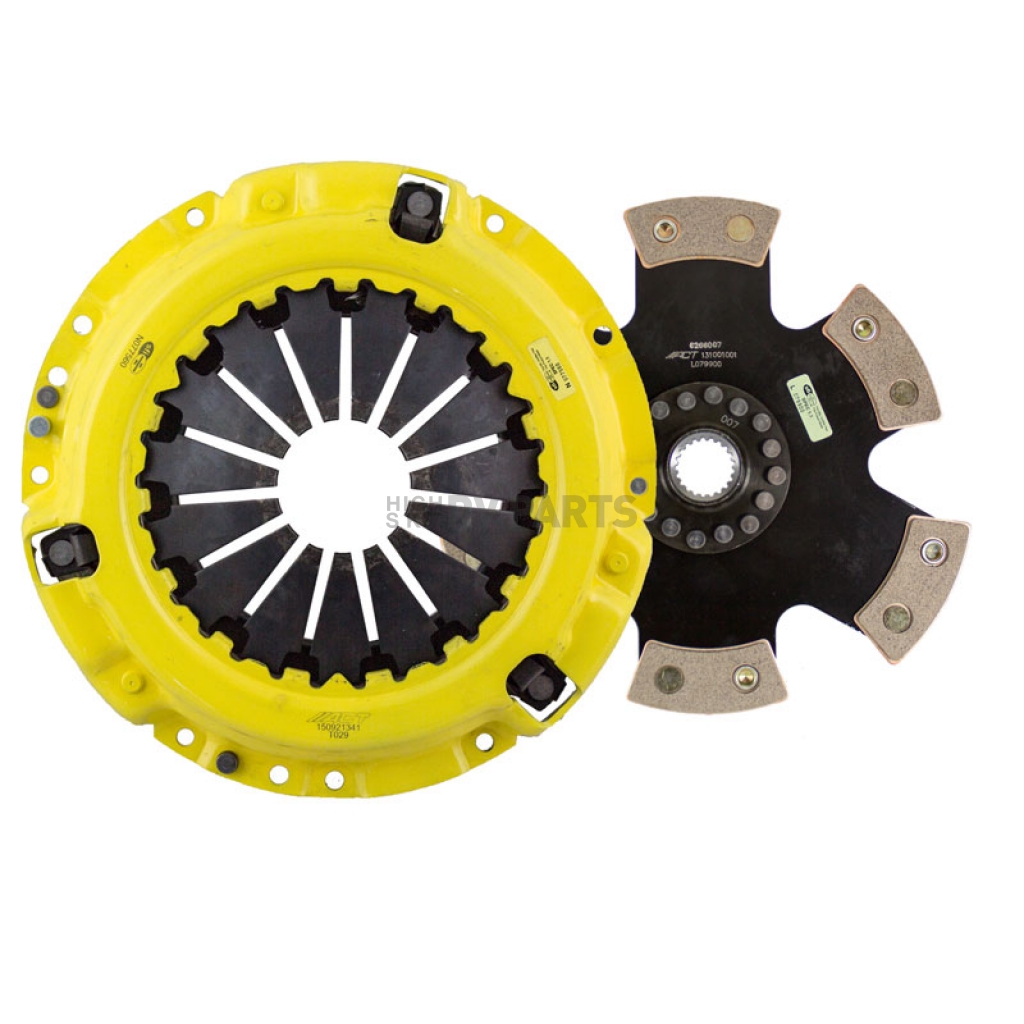

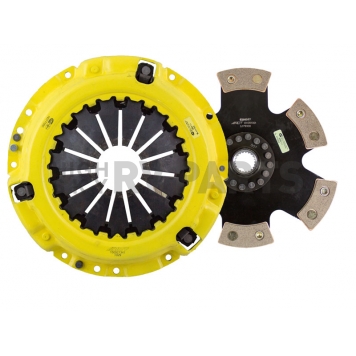

Advanced Clutch Set Heavy Duty Rigid 6 Paddle - TA3-HDR6

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: TA3-HDR6
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $795.89
Price: $757.99
You Save: $37.90
Disc Diameter
 10-1/2 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Rigid
Flywheel Material
 No Flywheel
Flywheel Tooth Count
 No Flywheel
Flywheel Weight
 No Flywheel
Includes Alignment Tool
 No
Includes Pilot Bearing
 No
Includes Throwout Bearing
 No
Input Shaft Size
 1-1/8 Inch X 21 Spline
Share this page

Clutch Set; Heavy Duty/ Race; 10-1/2 Inch Clutch Diameter; 1-1/8 Inch x 21 Spline Input Shaft; Diaphragm; 585 Foot Pound Torque Capacity; Steel Pressure Plate; Single Disc/ Ceramic Friction Material; 6 Paddle Design/ Rigid Hub

MPN: TA3-HDR6

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 1-1/8 Inch X 21 Spline
Number Of Friction Discs: 1 Disc
Disc Friction Material: Ceramic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Rigid
Pressure Plate Material: Steel
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 585 Feet/Pound
Includes Alignment Tool: No

Features

  • Light To Moderate Pedal Effort, Aggressive Engagement, Increased Gear Rattle
  • Moderate Friction Life, Extended By ACT's Exclusive Diaphragm Design, Rigid Design May Increase Spline Wear
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Recommended For Race Use
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Rigid 6 Paddle - TA3-HDR6
Disc Diameter  10-1/2 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Rigid
Flywheel Material  No Flywheel
Flywheel Tooth Count  No Flywheel
Flywheel Weight  No Flywheel
Includes Alignment Tool  No
Includes Pilot Bearing  No
Includes Throwout Bearing  No
Input Shaft Size  1-1/8 Inch X 21 Spline
Number Of Friction Discs  1 Disc
Pressure Plate Design  Heavy Duty
Pressure Plate Material  Steel
Torque Holding Capacity  585 Feet/Pound
