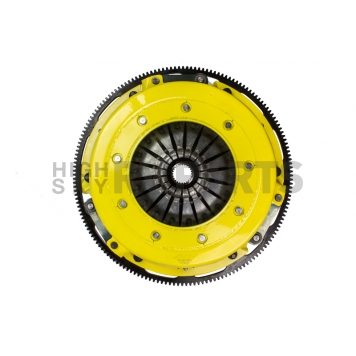

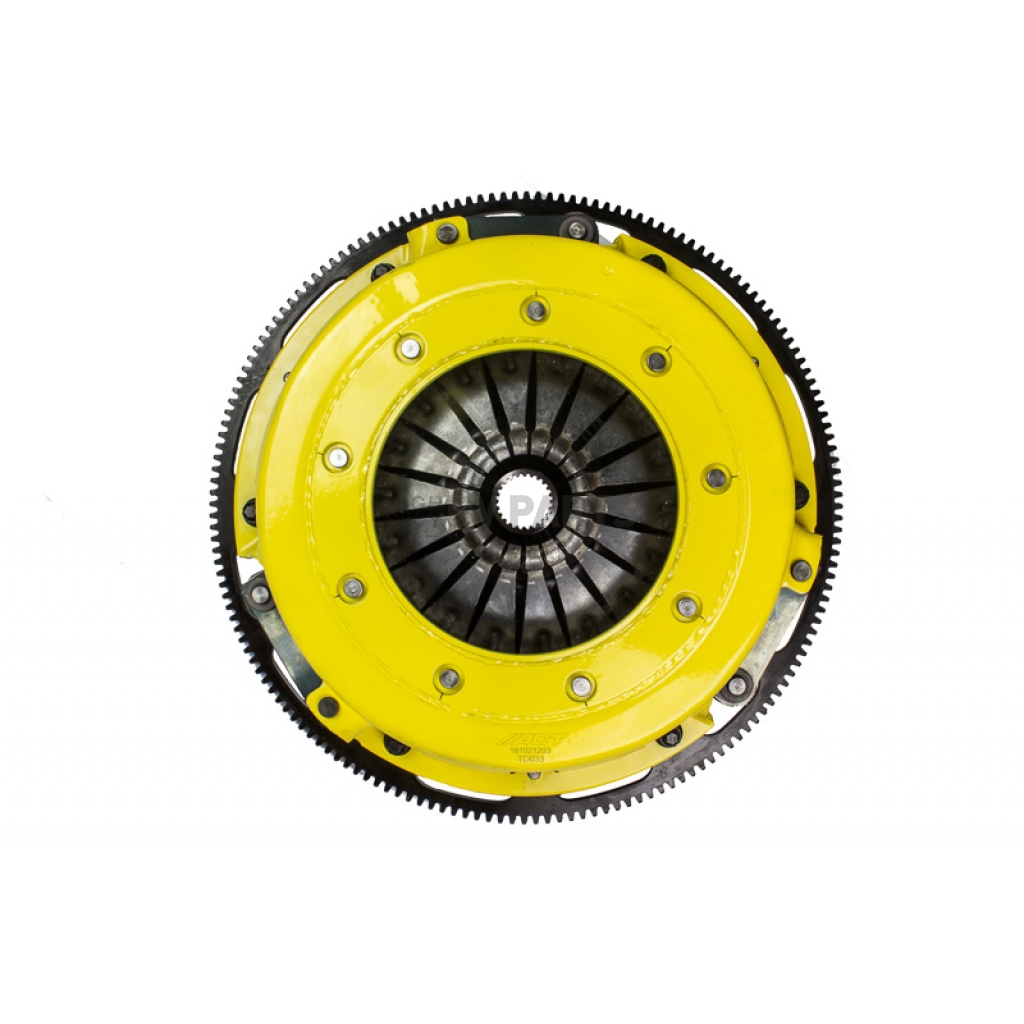

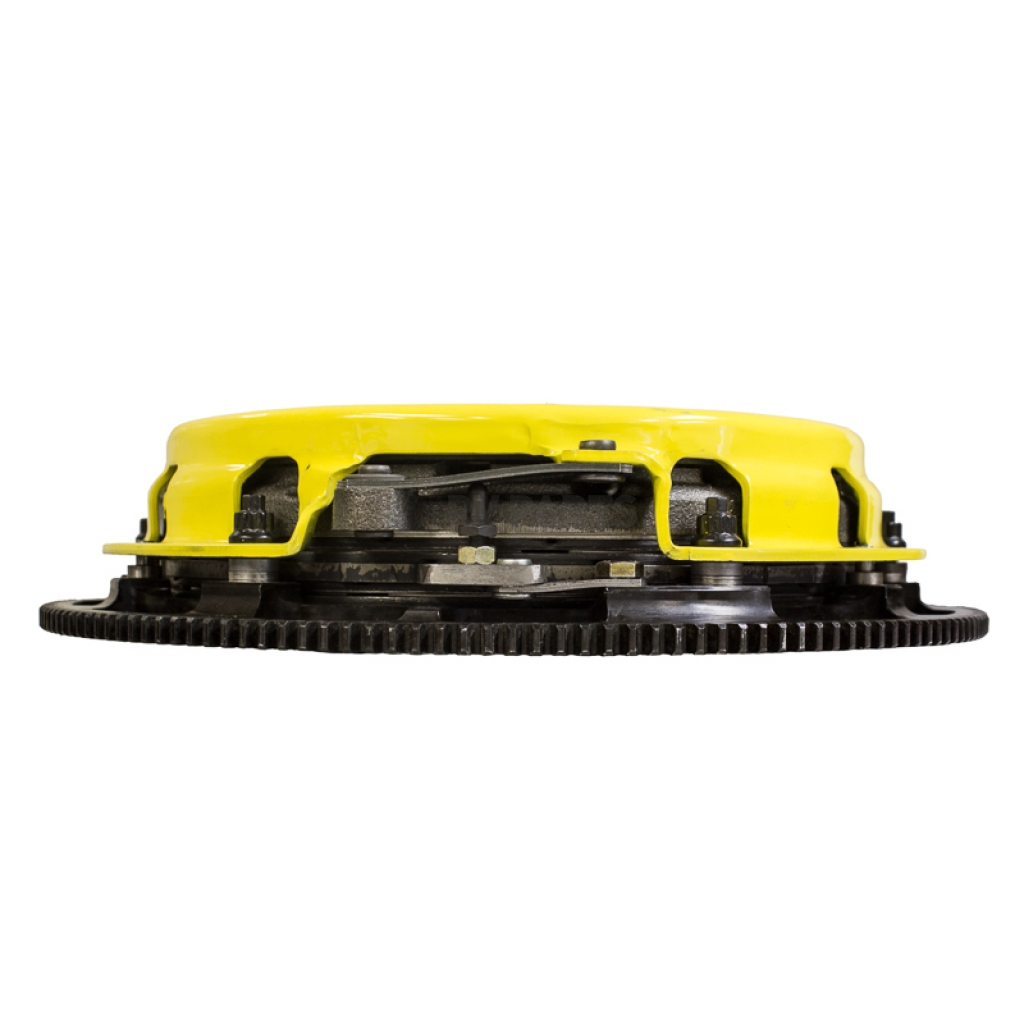

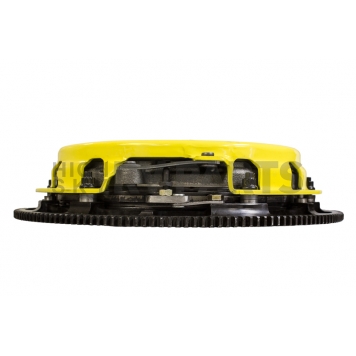

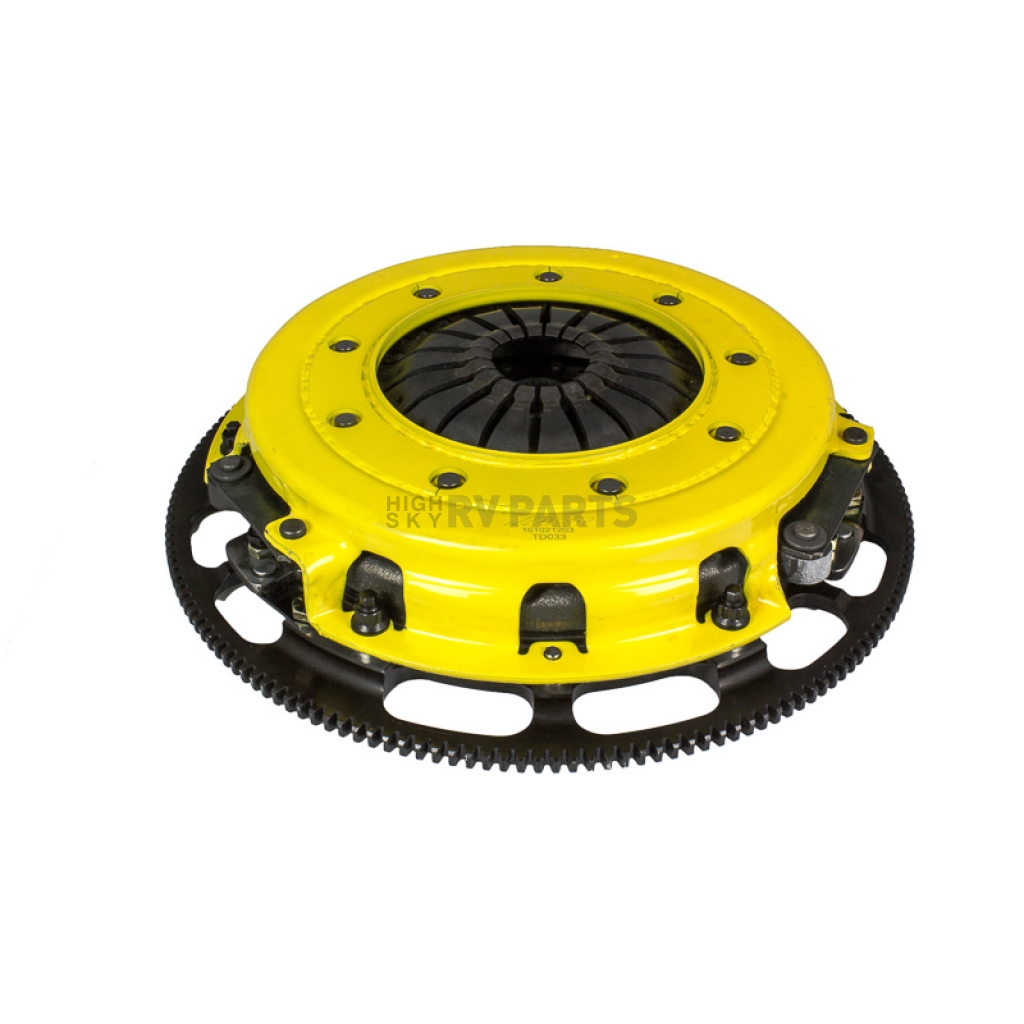

Advanced Clutch Set Diaphragm Rigid Dual Full Face - T3S-G09
Disc Diameter
10-1/2 Inch
Disc Friction Face Design
Dual Full Face
Disc Friction Material
Organic
Disc Hub Design
Rigid
Flywheel Tooth Count
168
Includes Alignment Tool
Yes
Includes Pilot Bearing
No
Includes Throwout Bearing
No
Input Shaft Size
1-1/8 Inch X 26 Spline
Number Of Friction Discs
2 Disc
Pressure Plate Design
Diaphragm
Share this page

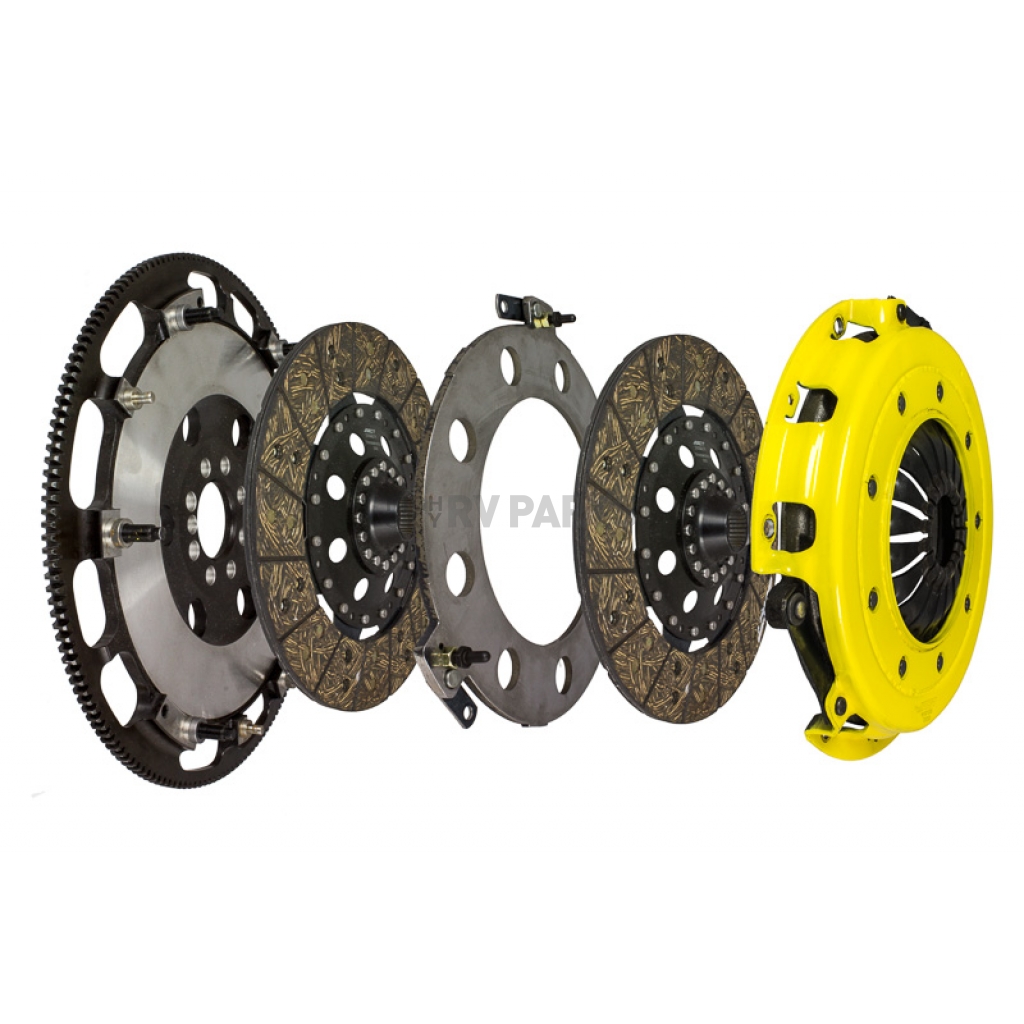

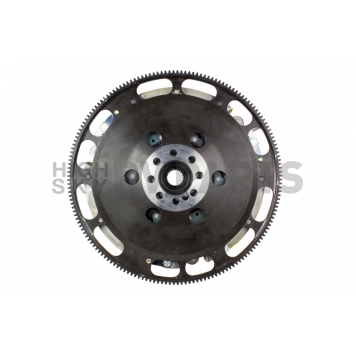

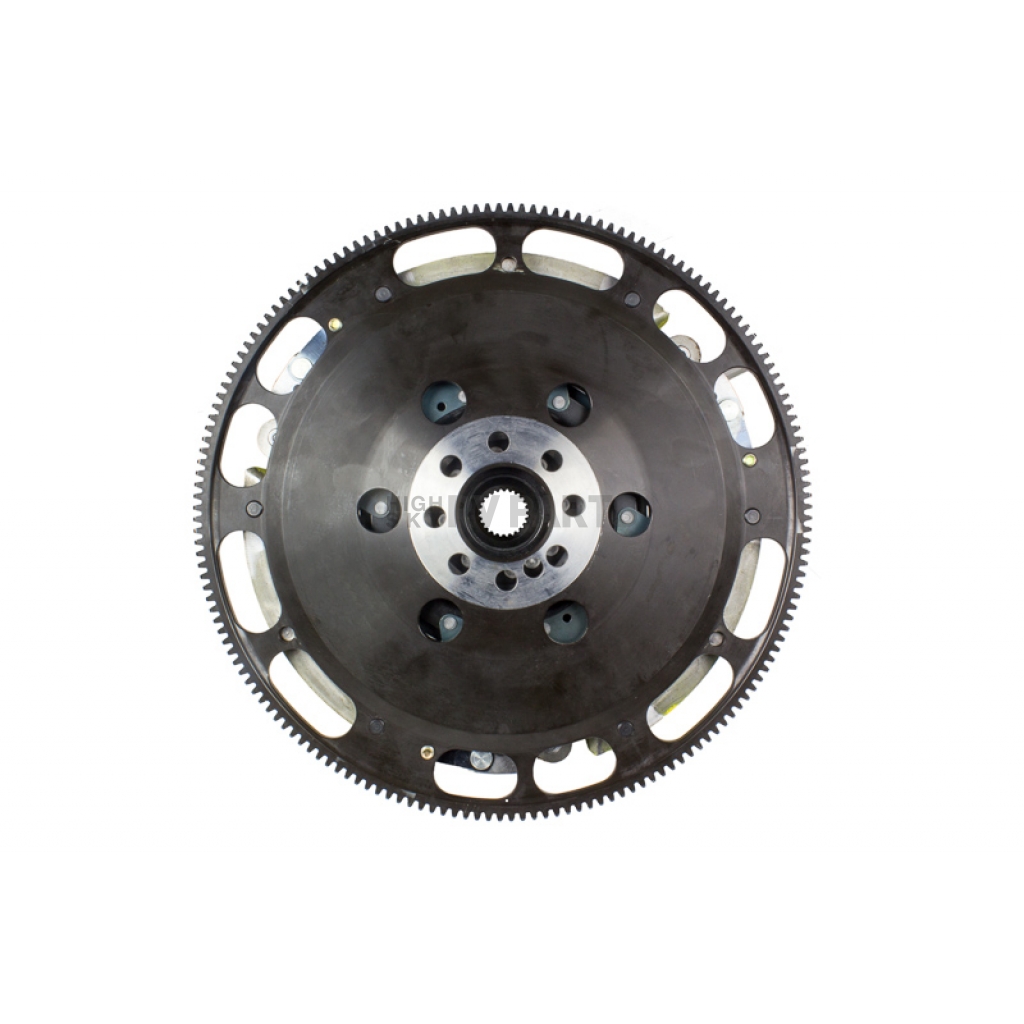

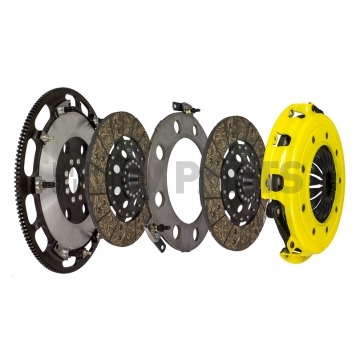

Clutch Set; Maxx Xtreme/ Street; 10-1/2 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Diaphragm; 1170 Foot Pound Torque Capacity; Dual Disc/ Organic Friction Material; Full Face Design/ Rigid Hub; 168 Tooth Flywheel; With Clutch Disc/ Pressure Plate/ Flywheel/ Floater/ Alignment Tool
MPN: T3S-G09
Twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength.Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Organic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Rigid
Flywheel Tooth Count: 168
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: Dual Full Face
Torque Holding Capacity: 1170 Feet/Pound
Includes Alignment Tool: Yes
Features
- Heavy To Very Heavy Pedal Effort, Smooth Engagement, Mild To Moderate Gear Rattle
- Disc Surfaces Doubled For Better Wear, Heat Capacity And Longer Life, Further Extended By ACT's Exclusive Diaphragm Design
- Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
- 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
- The Chrome-Moly Hub Is Heat-Treated For Strength And Durability
- Recommended For Race Use Only
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Diaphragm Rigid Dual Full Face - T3S-G09 | |
| Disc Diameter | 10-1/2 Inch |
| Disc Friction Face Design | Dual Full Face |
| Disc Friction Material | Organic |
| Disc Hub Design | Rigid |
| Flywheel Tooth Count | 168 |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | No |
| Includes Throwout Bearing | No |
| Input Shaft Size | 1-1/8 Inch X 26 Spline |
| Number Of Friction Discs | 2 Disc |
| Pressure Plate Design | Diaphragm |
| Torque Holding Capacity | 1170 Feet/Pound |
2016 Chevrolet Camaro
2017 Chevrolet Camaro
2018 Chevrolet Camaro
2019 Chevrolet Camaro
2020 Chevrolet Camaro
2021 Chevrolet Camaro
2022 Chevrolet Camaro
2023 Chevrolet Camaro
2017 Chevrolet Camaro
2018 Chevrolet Camaro
2019 Chevrolet Camaro
2020 Chevrolet Camaro
2021 Chevrolet Camaro
2022 Chevrolet Camaro
2023 Chevrolet Camaro
