Advanced Clutch Twin Disc MaXX XT Street Kit - T3S-F11

Name: Advanced Clutch Twin Disc MaXX XT Street Kit - T3S-F11
Brand: Advanced Clutch
SKU: T3S-F11
Price: 1994.99 USD
Availability: InStock

Authorized Dealer

Brand:

Advanced Clutch

0 reviews

Have a product question? Ask us
Part Number: T3S-F11
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 17

Retail: $2,094.74

Price: $1,994.99

You Save: $99.75

Disc Diameter

10-1/2 Inch

Disc Friction Material

Organic

Disc Hub Design

Rigid

Includes Alignment Tool

Yes

Includes Pilot Bearing

Yes

Input Shaft Size

1 Inch X 23 Spline

Number Of Friction Discs

2 Disc

Pressure Plate Design

Diaphragm

Torque Holding Capacity

1169 Feet/Pound

Share this page

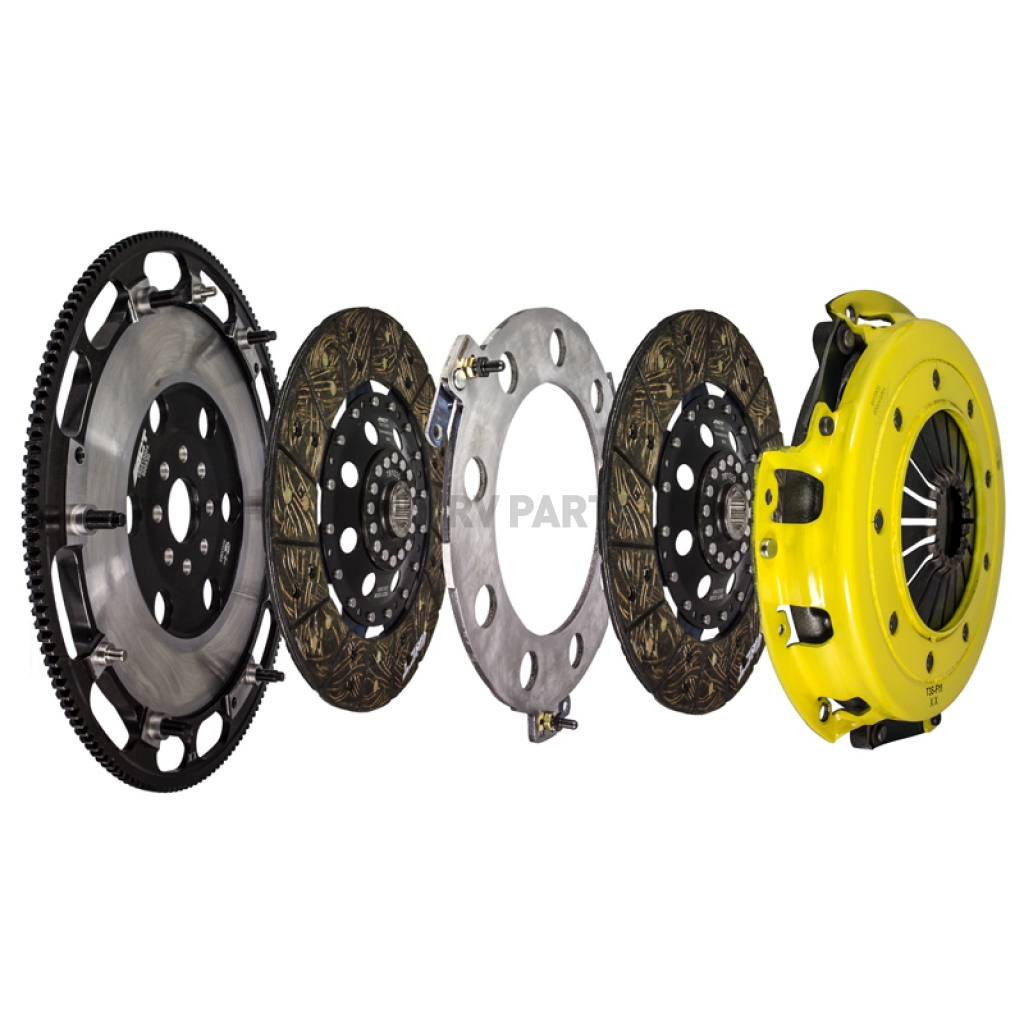

Clutch Set; Maxx Xtreme/ Street; 10.5 Inch Clutch Diameter; 1 Inch x 23 Spline Input Shaft; Diaphragm; Dual Disc/ Organic Friction Material; Rigid Hub; With Flywheel/ Clutch Disc/ Floater/ Pressure Plate/ Alignment Tool

MPN: T3S-F11

Twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation.

Pressure Plate Design: Diaphragm

Input Shaft Size: 1 Inch X 23 Spline

Number Of Friction Discs: 2 Disc

Disc Friction Material: Organic

Disc Diameter: 10-1/2 Inch

Disc Hub Design: Rigid

Includes Pilot Bearing: Yes

Torque Holding Capacity: 1169 Feet/Pound

Includes Alignment Tool: Yes

Features

Heavy To Very Heavy Pedal Effort, Smooth Engagement, Mild To Moderate Gear Rattle
Disc Surfaces Doubled For Better Wear, Heat Capacity And Longer Life, Further Extended By ACT's Exclusive Diaphragm Design
Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
The Chrome-Moly Hub Is Heat-Treated For Strength And Durability
Recommended For Race Use Only
Limited 12 Month Warranty

Specifications of Advanced Clutch Twin Disc MaXX XT Street Kit - T3S-F11
Disc Diameter	10-1/2 Inch
Disc Friction Material	Organic
Disc Hub Design	Rigid
Includes Alignment Tool	Yes
Includes Pilot Bearing	Yes
Input Shaft Size	1 Inch X 23 Spline
Number Of Friction Discs	2 Disc
Pressure Plate Design	Diaphragm
Torque Holding Capacity	1169 Feet/Pound
