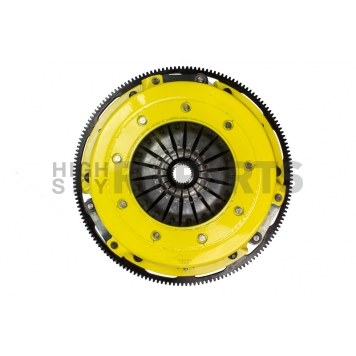

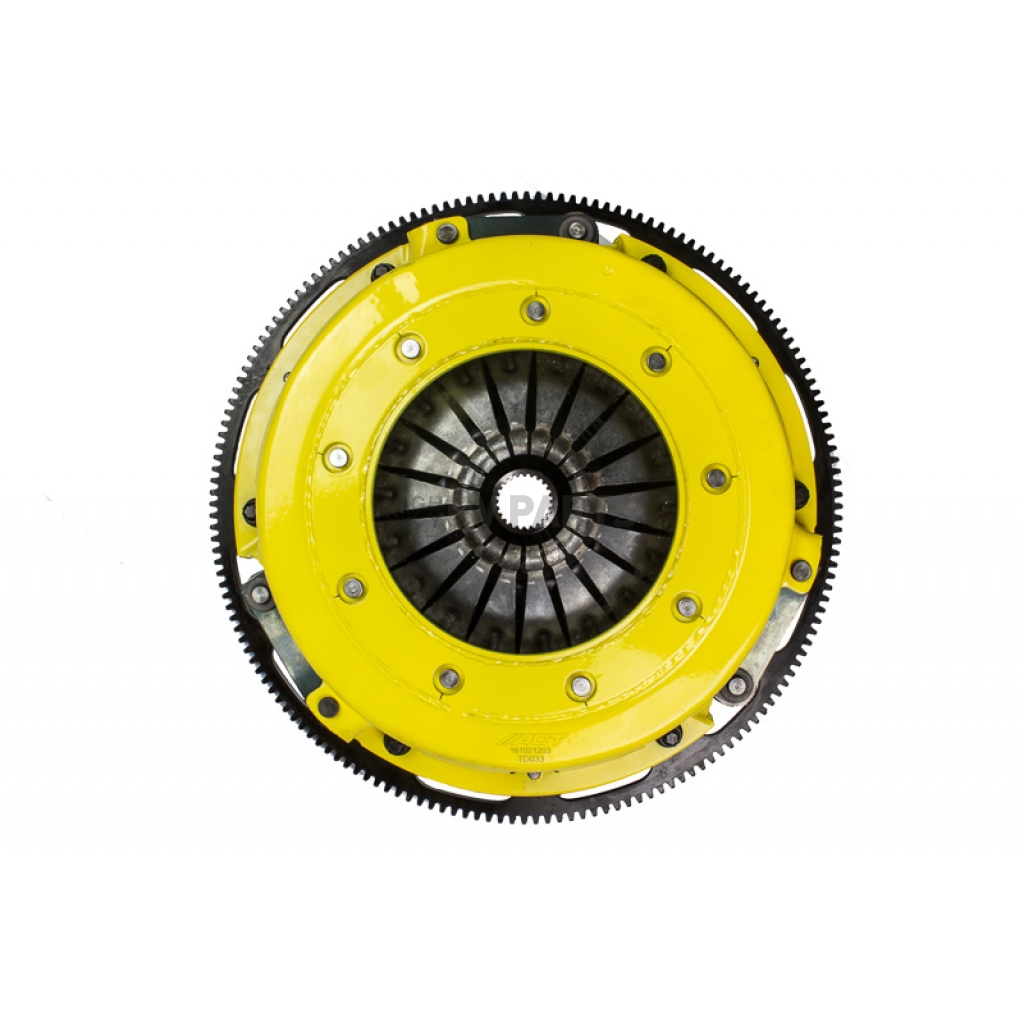

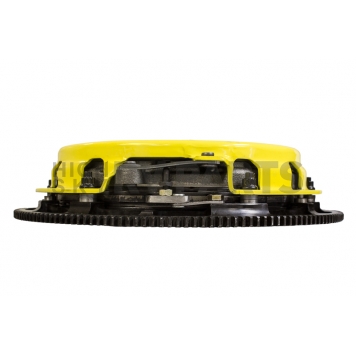

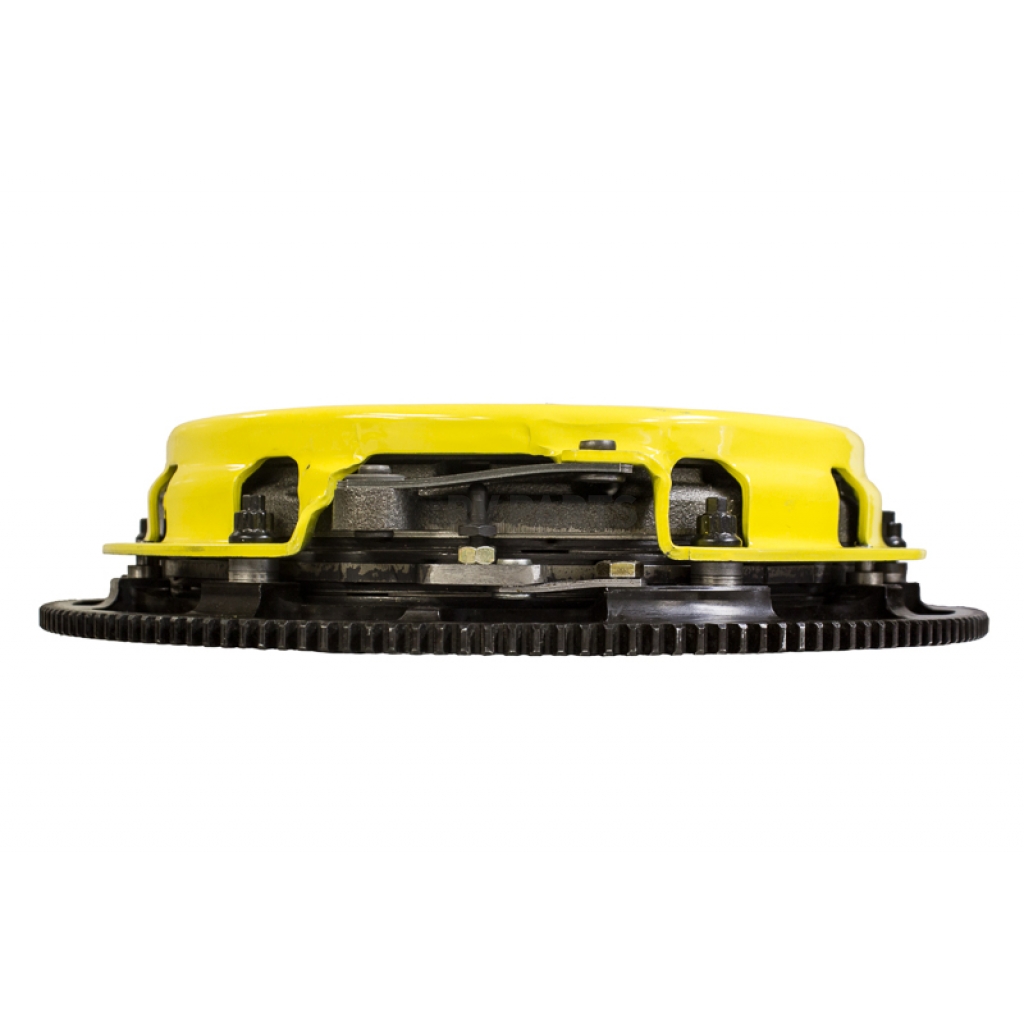

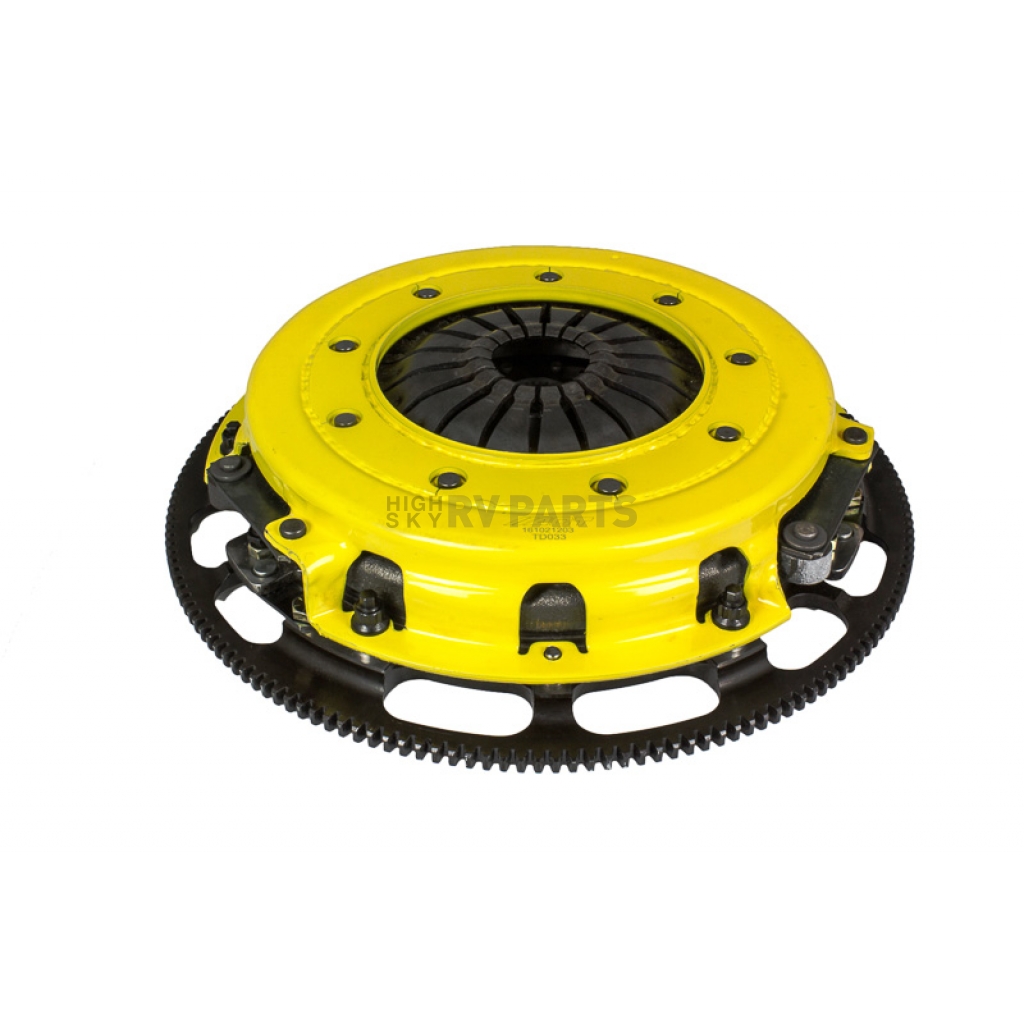

Advanced Clutch Set Diaphragm Rigid Dual 6 Paddle - T3R-G09

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: T3R-G09
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $2,188.19
Price: $2,083.99
You Save: $104.20
Disc Diameter
 10-1/2 Inch
Disc Friction Face Design
 Dual 6 Paddle
Disc Friction Material
 Ceramic
Disc Hub Design
 Rigid
Flywheel Tooth Count
 168
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 No
Input Shaft Size
 1-1/8 Inch X 26 Spline
Number Of Friction Discs
 2 Disc
Pressure Plate Design
 Diaphragm
Share this page

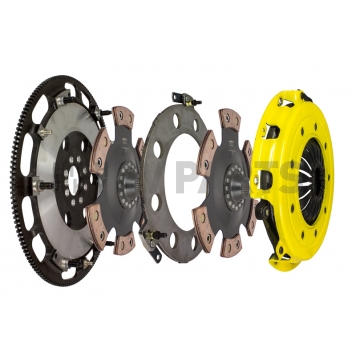

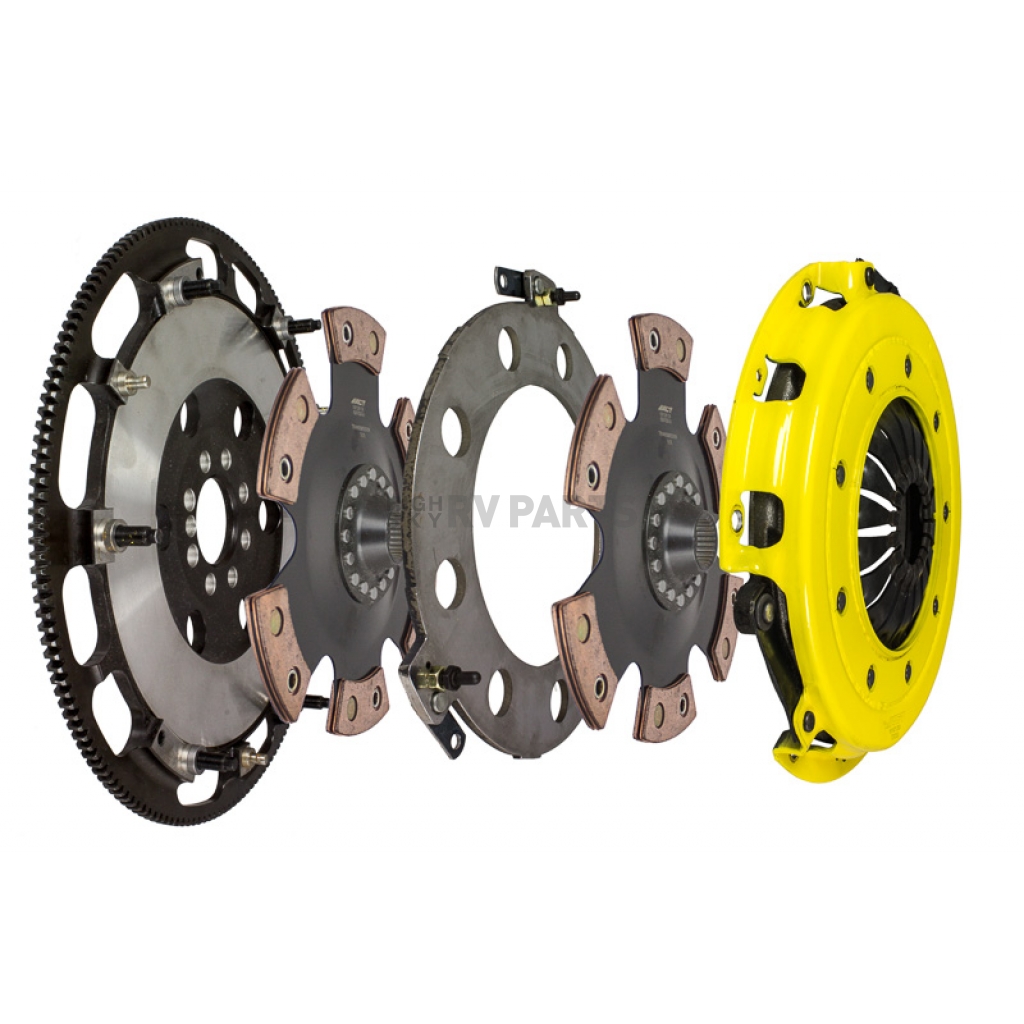

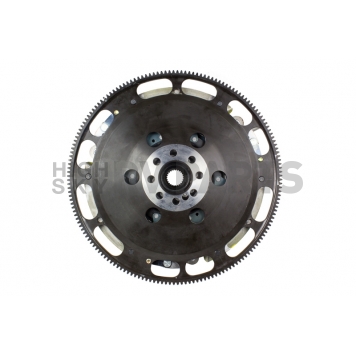

Clutch Set; Maxx Xtreme/ Race; 10-1/2 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Diaphragm; 1495 Foot Pound Torque Capacity; Dual Disc/ Ceramic Friction Material; 6 Paddle Design/ Rigid Hub; 168 Tooth Flywheel; With Clutch Disc/ Pressure Plate/ Flywheel/ Floater/ Alignment Tool

MPN: T3R-G09

Twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits undergo an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Ceramic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Rigid

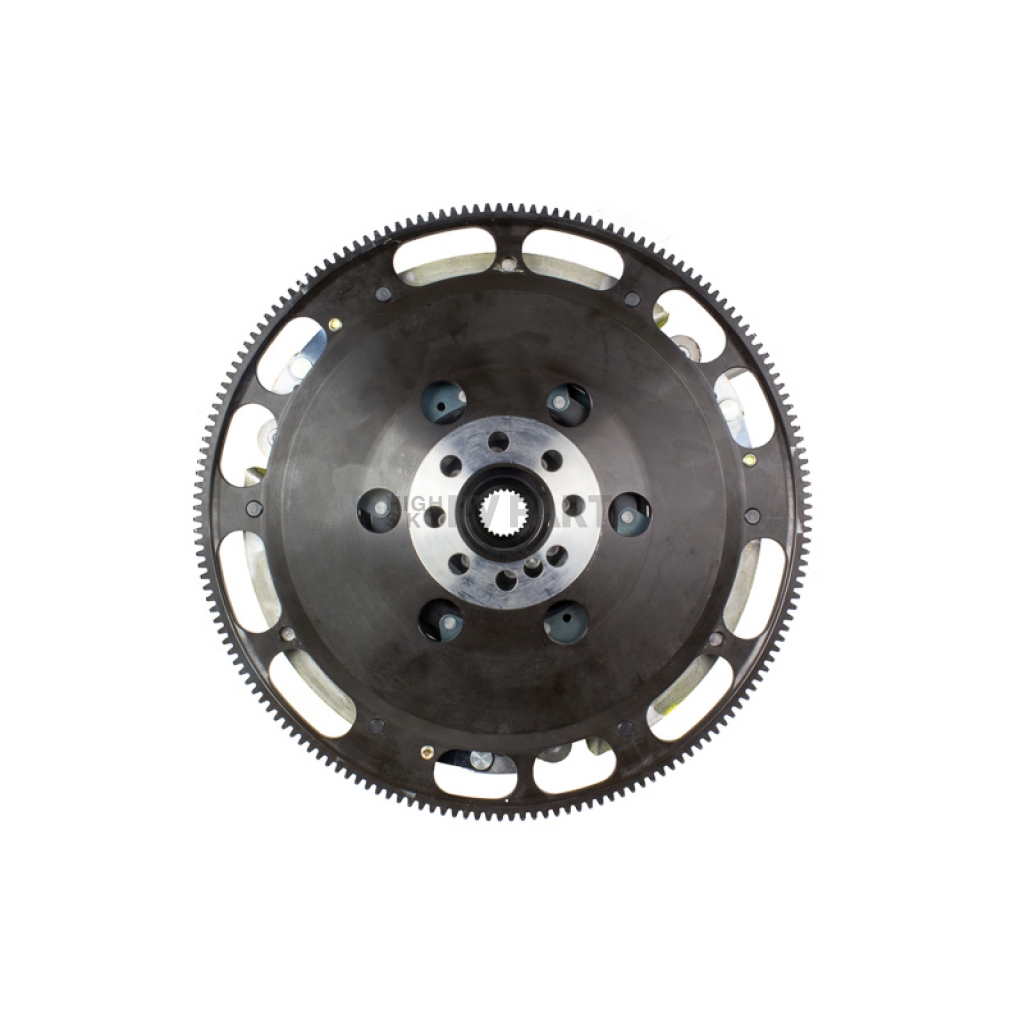

Flywheel Tooth Count: 168
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: Dual 6 Paddle
Torque Holding Capacity: 1495 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Heavy To Very Heavy Pedal Effort, Aggressive Engagement, Mild To Moderate Gear Rattle
  • Disc Surfaces Doubled For Better Wear, Heat Capacity And Longer Life, Further Extended By ACT's Exclusive Diaphragm Design
  • Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • The Chrome-Moly Hub Is Heat-Treated For Strength And Durability
  • Recommended For Race Use Only
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Rigid Dual 6 Paddle - T3R-G09
Disc Diameter  10-1/2 Inch
Disc Friction Face Design  Dual 6 Paddle
Disc Friction Material  Ceramic
Disc Hub Design  Rigid
Flywheel Tooth Count  168
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  No
Input Shaft Size  1-1/8 Inch X 26 Spline
Number Of Friction Discs  2 Disc
Pressure Plate Design  Diaphragm
Torque Holding Capacity  1495 Feet/Pound

2016 Chevrolet Camaro
2017 Chevrolet Camaro
2018 Chevrolet Camaro
2019 Chevrolet Camaro
2020 Chevrolet Camaro
2021 Chevrolet Camaro
2022 Chevrolet Camaro
2023 Chevrolet Camaro
