Advanced Clutch Set Diaphragm Solid 6 Paddle - T3R-G02
Disc Diameter
10-1/2 Inch
Disc Friction Face Design
6 Paddle
Disc Friction Material
Organic
Disc Hub Design
Solid
Includes Alignment Tool
Yes
Includes Pilot Bearing
No
Includes Throwout Bearing
No
Input Shaft Size
1-1/8 Inch X 26 Spline
Number Of Friction Discs
2 Disc
Pressure Plate Design
Diaphragm
Torque Holding Capacity
1470 Feet/Pound
Share this page
Clutch Set; Twin Race; 10-1/2 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Diaphragm; Dual Disc/ Organic Friction Material; 6 Paddle Design/ Solid Hub; With Advanced Clutch Technology Part Number 600540 Clutch Flywheel/ MAXXtreme Clutch Pressure Plate/ Race Clutch Disc/ ATGM026 Clutch Alignment Tool
MPN: T3R-G02

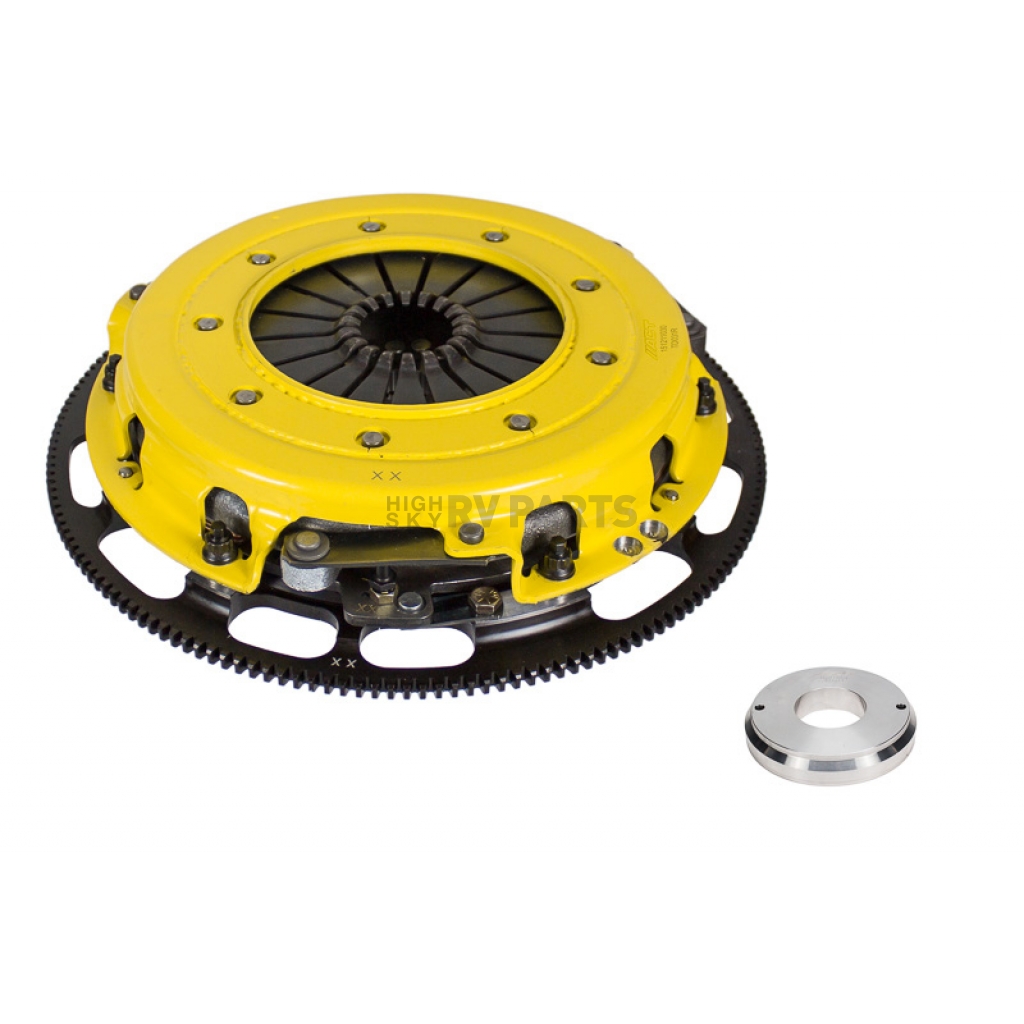

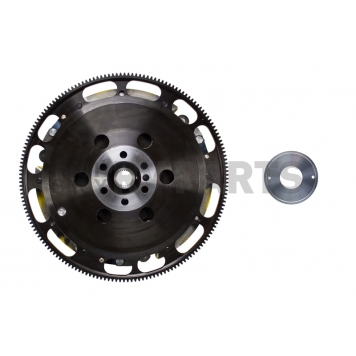

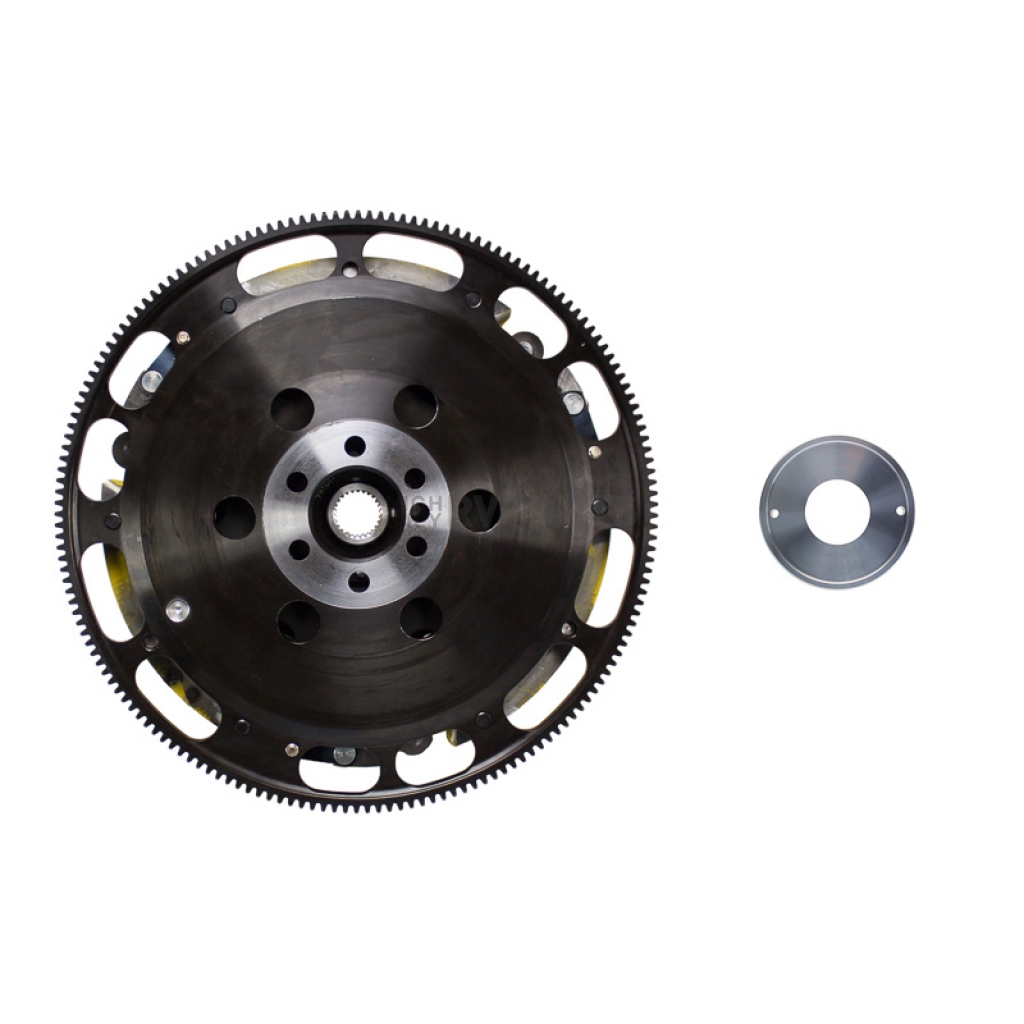

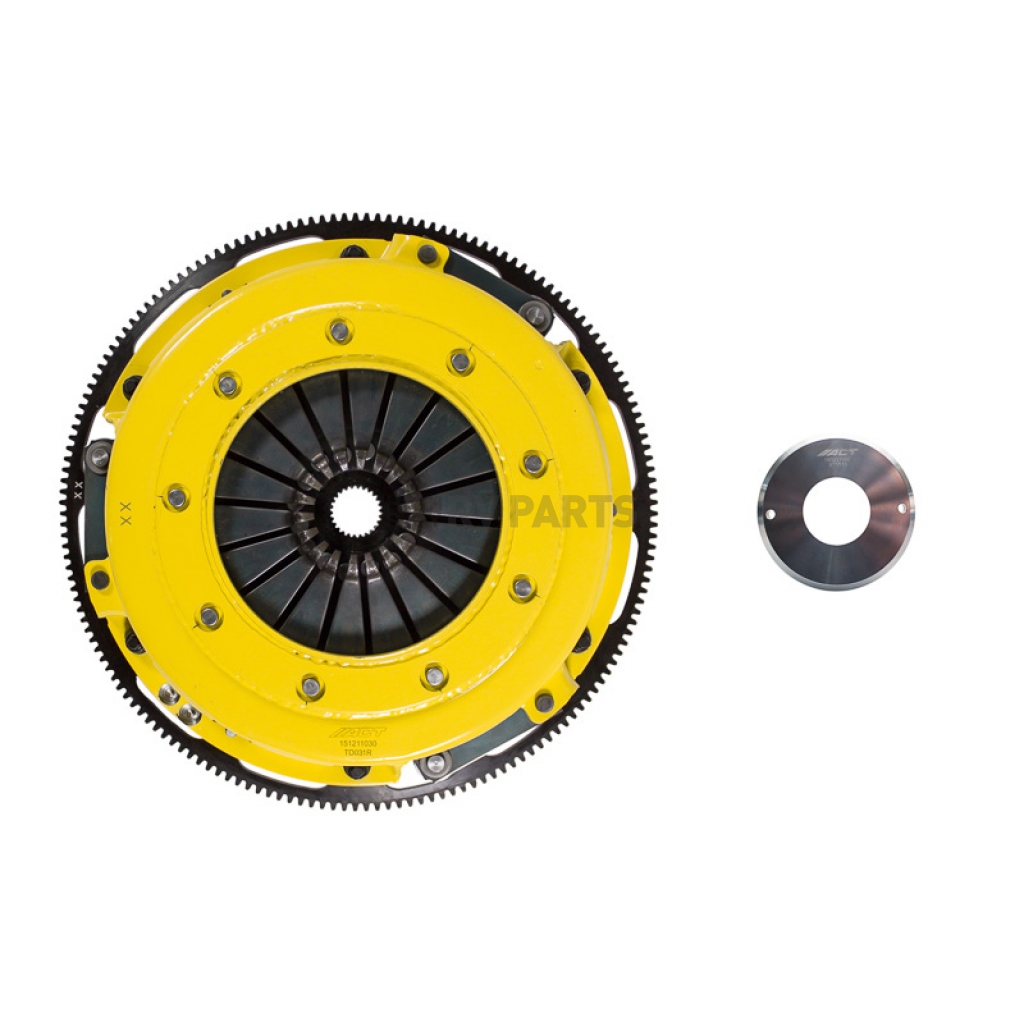

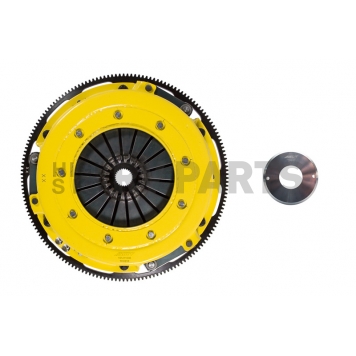

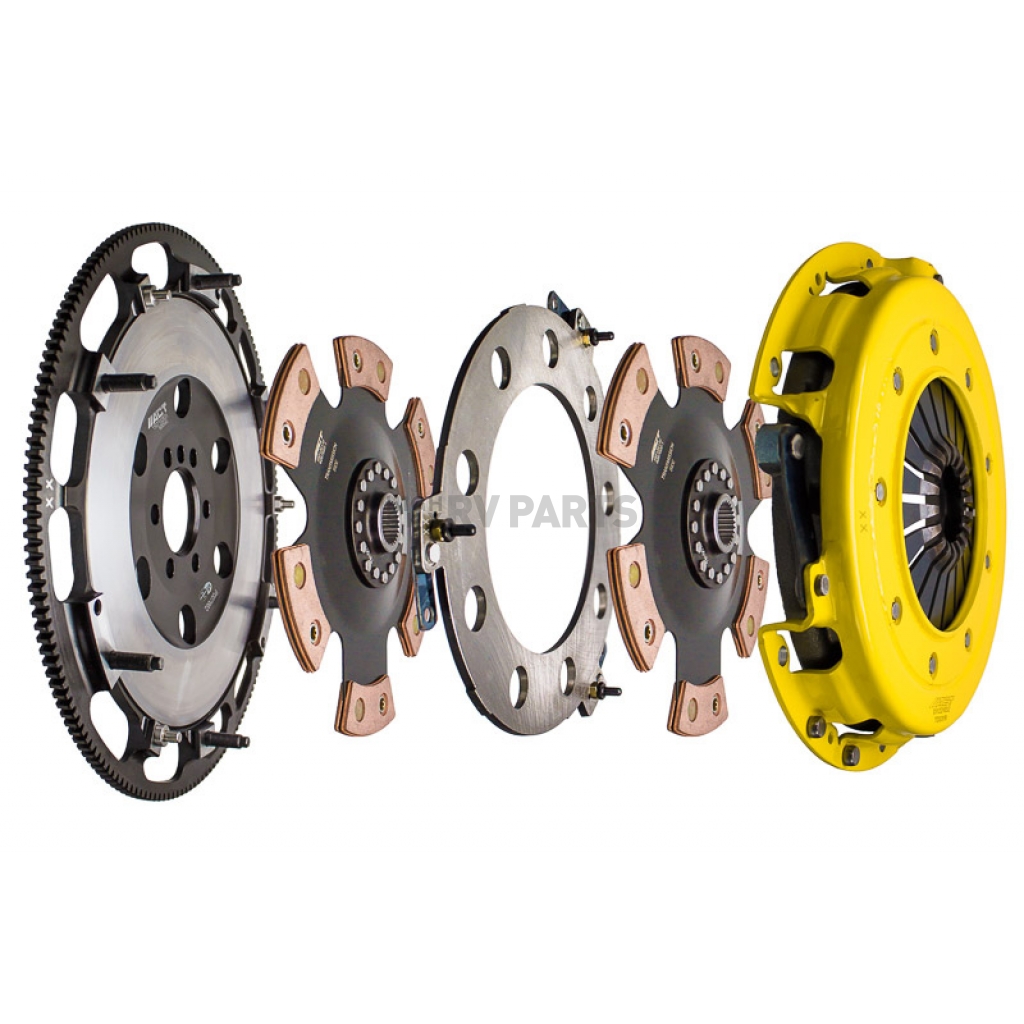

The MaXX Xtreme street twin disc kit includes a MaXX Xtreme pressure plate, two race discs, a floater and flywheel. The MaXX Xtreme pressure plate offers a clamp load increase of 70 to 150 Percent with a stiff to very stiff pedal feel. ACT twin disc kits offer twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. With an ACT twin disc, there also is the ability to adjust for compensation of disc wear and provides equal disengagement for discs. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. Exclusive four-stage, heat treating process performed on all diaphragms. All ACT race twin disc kits meet SFI Specification 1.2 and are legal in all racing organizations that require SFI certification.Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Organic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Solid
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 1470 Feet/Pound
Includes Alignment Tool: Yes
Features
- Solid Disc Provides Faster Shifting And High Burst Strength. Three Different Disc Combinations Are Available For Various Power Levels
- Up To Three Different Pressure Plate Clamp Load Designs Offering Light, Moderate And Firm Pedal Efforts For High Torque Applications
- The ACT Proprietary Positive Lift Floater System Design Results In Quiet Operation With No Floater Rattle And Posts To Wear
- Ability To Adjust For Compensation Of Disc Wear And Provides Equal Disengagement For Discs
- Offers Twice The Number Of Disc Surfaces For Better Wear, Heat Capacity And Longer Life
- All ACT Twin Disc Kit Includes CNC Machined And Dynamically Balanced Flywheel To Ensure Both Trouble Free Installation And Operation
- Clamp Load Increase Of 70 To 150 Percent Over Stock With A Stiff To Very Stiff Pedal Feel
- Limited 1 Year Warranty
| Specifications of Advanced Clutch Set Diaphragm Solid 6 Paddle - T3R-G02 | |
| Disc Diameter | 10-1/2 Inch |
| Disc Friction Face Design | 6 Paddle |
| Disc Friction Material | Organic |
| Disc Hub Design | Solid |
| Includes Alignment Tool | Yes |
| Includes Pilot Bearing | No |
| Includes Throwout Bearing | No |
| Input Shaft Size | 1-1/8 Inch X 26 Spline |
| Number Of Friction Discs | 2 Disc |
| Pressure Plate Design | Diaphragm |
| Torque Holding Capacity | 1470 Feet/Pound |
2004 Cadillac CTS
2005 Cadillac CTS
2006 Cadillac CTS
2007 Cadillac CTS
2005 Cadillac CTS
2006 Cadillac CTS
2007 Cadillac CTS
2005 Chevrolet SSR
2006 Chevrolet SSR
2006 Chevrolet SSR
