Advanced Clutch Twin Disc XT Street Kit - T2S-G10

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: T2S-G10
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $1,867.94
Price: $1,778.99
You Save: $88.95
Disc Diameter
 10-1/2 Inch
Disc Friction Material
 Organic
Disc Hub Design
 Rigid
Flywheel Material
 Steel
Flywheel Tooth Count
 168
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 No
Input Shaft Size
 1-1/8 Inch X 26 Spline
Number Of Friction Discs
 2 Disc
Pressure Plate Design
 Diaphragm
Share this page

Clutch Set; Twin Street XT; 10.5 Inch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Dual Disc/ Organic Friction Material; Rigid Hub; 970 Foot Pound Torque Capacity; With Flywheel/ Pressure Plate/ 2 Discs/ Floater/ Alignment Tool

MPN: T2S-G10

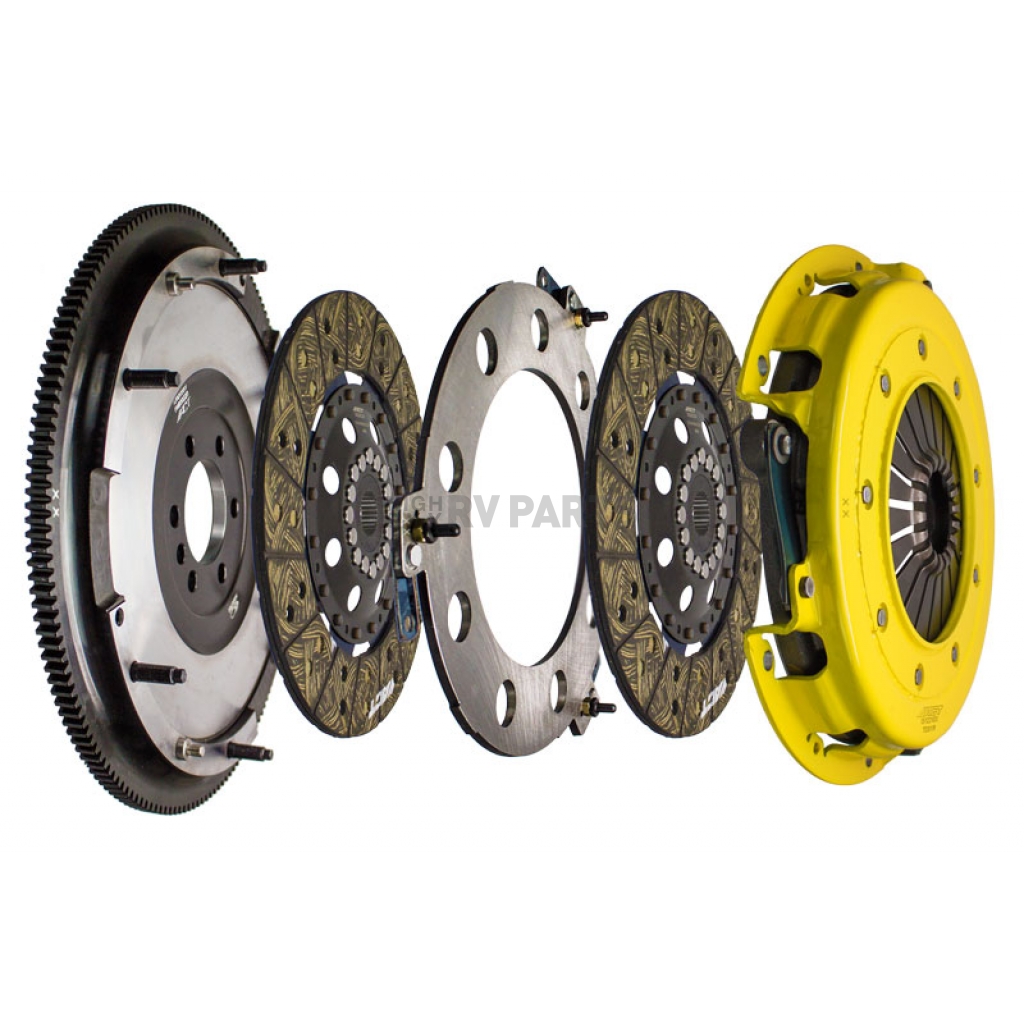

Twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits undergo an exclusive four-stage, heat treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Organic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Rigid
Flywheel Tooth Count: 168
Flywheel Material: Steel
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Torque Holding Capacity: 970 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Feel: Moderate To Heavy Pedal Effort, Smooth Engagement, OE To Moderate Gear Rattle
  • Life: Disc Surfaces Doubled For Better Wear, Heat Capacity And Longer Life, Further Extended By ACT's Exclusive Diaphragm Design
  • Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Recommended For High Horsepower Street Or Race Use
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Twin Disc XT Street Kit - T2S-G10
Disc Diameter  10-1/2 Inch
Disc Friction Material  Organic
Disc Hub Design  Rigid
Flywheel Material  Steel
Flywheel Tooth Count  168
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  No
Input Shaft Size  1-1/8 Inch X 26 Spline
Number Of Friction Discs  2 Disc
Pressure Plate Design  Diaphragm
Torque Holding Capacity  970 Feet/Pound

2004 Cadillac CTS
2005 Cadillac CTS
2006 Cadillac CTS
2007 Cadillac CTS
