Advanced Clutch Set Diaphragm Solid Full Face - T2S-F04

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: T2S-F04
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $1,818.59
Price: $1,731.99
You Save: $86.60
Disc Diameter
 11 Inch
Disc Friction Face Design
 Full Face
Disc Friction Material
 Organic
Disc Hub Design
 Solid
Flywheel Material
 Chromoly Steel
Flywheel Tooth Count
 164
Flywheel Weight
 14.4 Pound
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 No
Input Shaft Size
 1-1/8 Inch X 26 Spline
Share this page

Clutch Set; Twin Street; 11 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Diaphragm; Iron Pressure Plate; Dual Disc/ Organic Friction Material; Full Face Design/ Solid Hub; 14.4 Pound 164 Tooth Steel Flywheel; With Advanced Clutch Technology Part Number 600565 Clutch Flywheel/ Xtreme Clutch Pressure Plate/ Street Clutch Disc/ AT048 Clutch Alignment Tool

MPN: T2S-F04

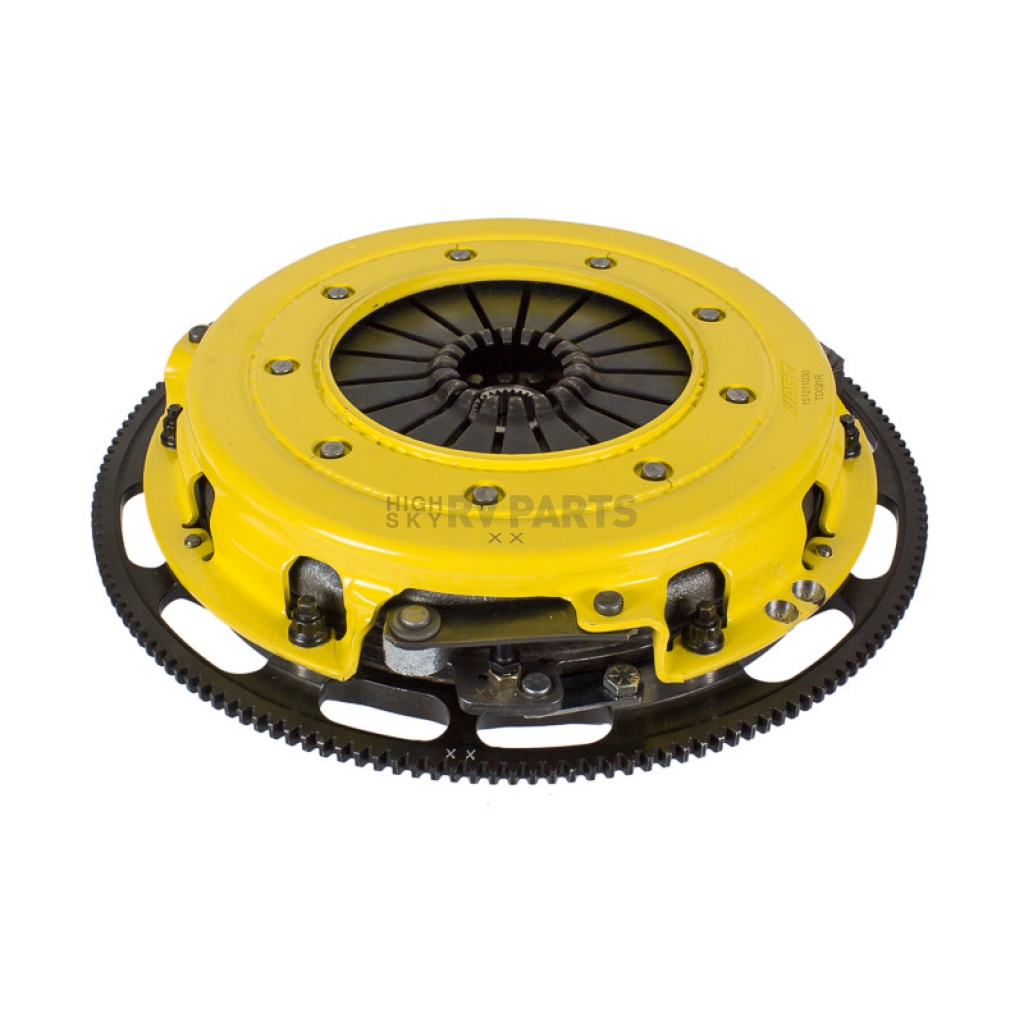

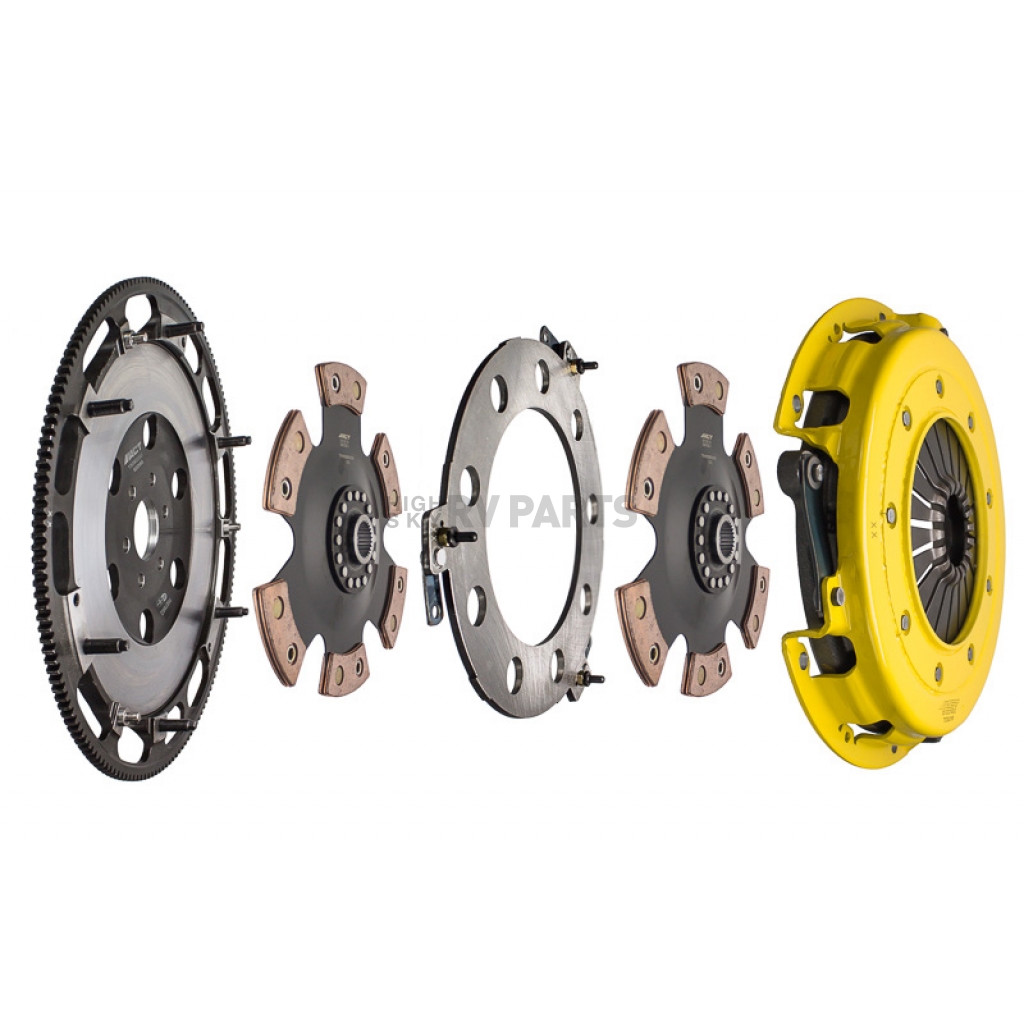

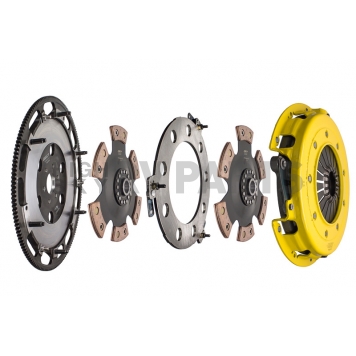

The Xtreme street twin disc kit includes a Xtreme pressure plate, two street discs, a floater and flywheel. The Xtreme pressure plate offers a clamp load increase of 50 to 120 Percent with a moderate to stiff pedal feel. ACT twin disc kits offer twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. With an ACT twin disc, there also is the ability to adjust for compensation of disc wear and provides equal disengagement for discs. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. Exclusive four-stage, heat treating process performed on all diaphragms. All ACT race twin disc kits meet SFI Specification 1.2 and are legal in all racing organizations that require SFI certification.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Organic
Disc Diameter: 11 Inch
Disc Hub Design: Solid
Pressure Plate Material: Iron
Flywheel Weight: 14.4 Pound
Flywheel Tooth Count: 164
Flywheel Material: Chromoly Steel
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: Full Face
Torque Holding Capacity: 950 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Solid Disc Provides Faster Shifting And High Burst Strength. Three Different Disc Combinations Are Available For Various Power Levels
  • Up To Three Different Pressure Plate Clamp Load Designs Offering Light, Moderate And Firm Pedal Efforts For High Torque Applications
  • The ACT Proprietary Positive Lift Floater System Design Results In Quiet Operation With No Floater Rattle And Posts To Wear
  • Ability To Adjust For Compensation Of Disc Wear And Provides Equal Disengagement For Discs
  • Offers Twice The Number Of Disc Surfaces For Better Wear, Heat Capacity And Longer Life
  • All ACT Twin Disc Kit Includes CNC Machined And Dynamically Balanced Flywheel To Ensure Both Trouble Free Installation And Operation
  • Clamp Load Increase Of 50 To 120 Percent Over Stock With A Moderate To Stiff Pedal Feel
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Solid Full Face - T2S-F04
Disc Diameter  11 Inch
Disc Friction Face Design  Full Face
Disc Friction Material  Organic
Disc Hub Design  Solid
Flywheel Material  Chromoly Steel
Flywheel Tooth Count  164
Flywheel Weight  14.4 Pound
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  No
Input Shaft Size  1-1/8 Inch X 26 Spline
Number Of Friction Discs  2 Disc
Pressure Plate Design  Diaphragm
Pressure Plate Material  Iron
Torque Holding Capacity  950 Feet/Pound

1996 Ford Mustang
1997 Ford Mustang
1998 Ford Mustang
1999 Ford Mustang
2000 Ford Mustang
2001 Ford Mustang
2002 Ford Mustang
2003 Ford Mustang
2004 Ford Mustang
2005 Ford Mustang
2006 Ford Mustang
2007 Ford Mustang
2008 Ford Mustang
2009 Ford Mustang
2010 Ford Mustang
