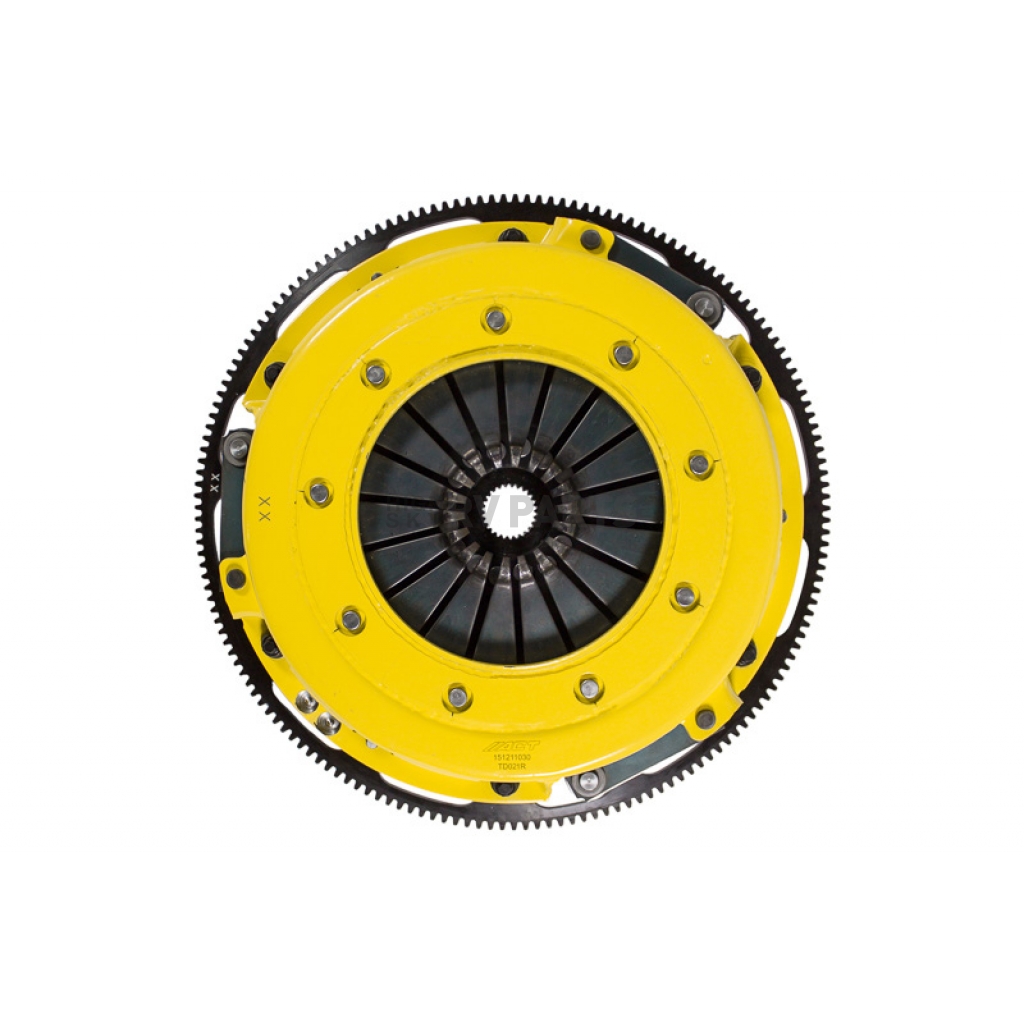

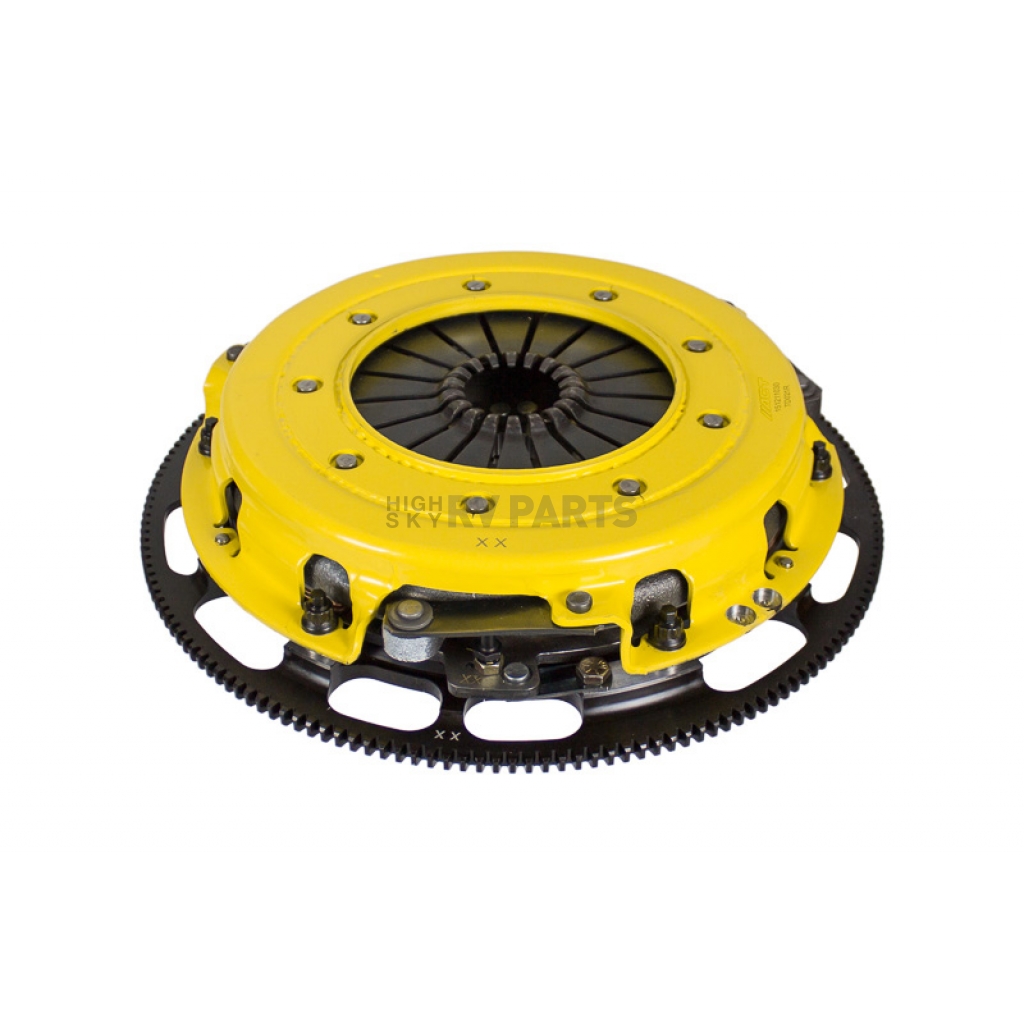

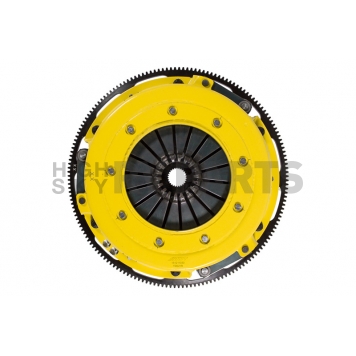

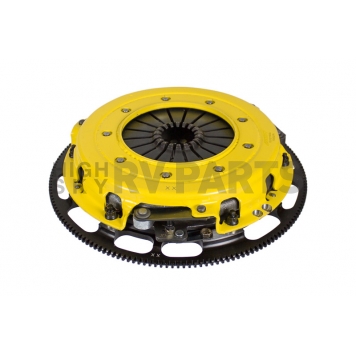

Advanced Clutch Set Diaphragm Solid 6 Paddle - T2R-G01

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: T2R-G01
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $1,756.64
Price: $1,672.99
You Save: $83.65
Disc Diameter
 10-1/2 Inch
Disc Friction Face Design
 6 Paddle
Disc Friction Material
 Organic
Disc Hub Design
 Solid
Flywheel Material
 No Flywheel
Flywheel Tooth Count
 No Flywheel
Flywheel Weight
 No Flywheel
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 No
Input Shaft Size
 1-1/8 Inch X 26 Spline
Share this page

Clutch Set; Twin Race; 10-1/2 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Diaphragm; Dual Disc/ Organic Friction Material; 6 Paddle Design/ Solid Hub; With Advanced Clutch Technology Part Number 600540 Clutch Flywheel/ Xtreme Clutch Pressure Plate/ Race Clutch Disc/ ATGM026 Clutch Alignment Tool

MPN: T2R-G01

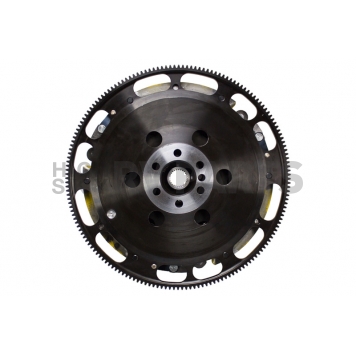

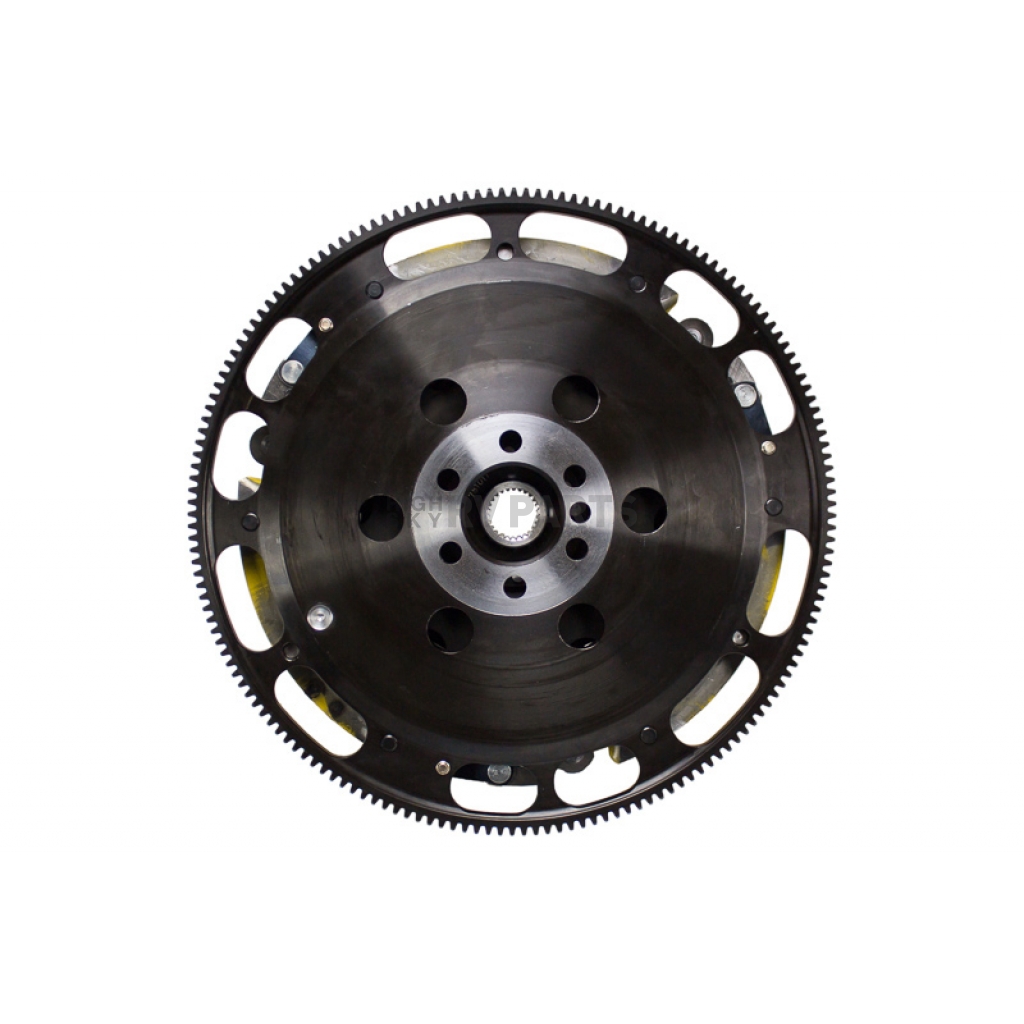

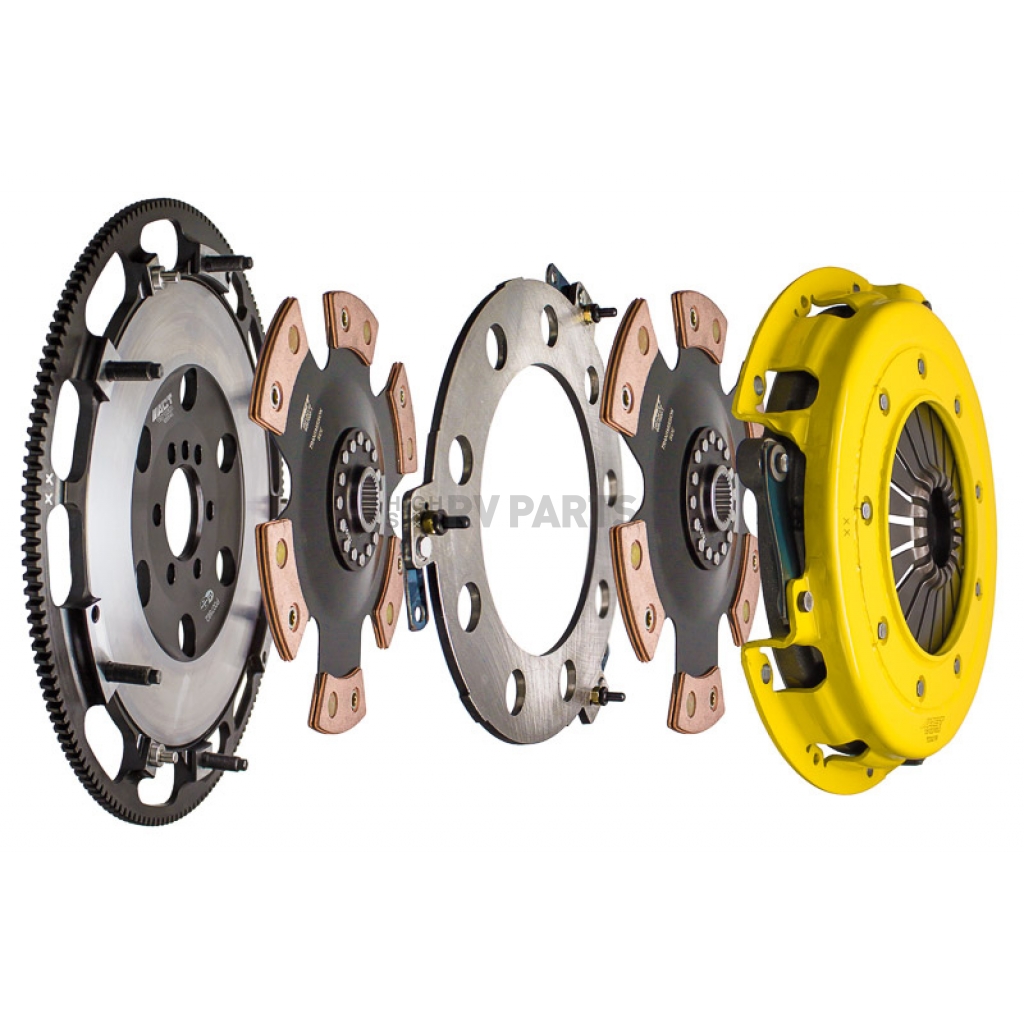

The Xtreme street twin disc kit includes a Xtreme pressure plate, two race discs, a floater and flywheel. The Xtreme pressure plate offers a clamp load increase of 50 to 120 Percent with a moderate to stiff pedal feel. ACT twin disc kits offer twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. With an ACT twin disc, there also is the ability to adjust for compensation of disc wear and provides equal disengagement for discs. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. Exclusive four-stage, heat treating process performed on all diaphragms. All ACT race twin disc kits meet SFI Specification 1.2 and are legal in all racing organizations that require SFI certification.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Organic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Solid
Flywheel Weight: No Flywheel
Flywheel Tooth Count: No Flywheel
Flywheel Material: No Flywheel
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: 6 Paddle
Torque Holding Capacity: 1240 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Solid Disc Provides Faster Shifting And High Burst Strength. Three Different Disc Combinations Are Available For Various Power Levels
  • Up To Three Different Pressure Plate Clamp Load Designs Offering Light, Moderate And Firm Pedal Efforts For High Torque Applications
  • The ACT Proprietary Positive Lift Floater System Design Results In Quiet Operation With No Floater Rattle And Posts To Wear
  • Ability To Adjust For Compensation Of Disc Wear And Provides Equal Disengagement For Discs
  • Offers Twice The Number Of Disc Surfaces For Better Wear, Heat Capacity And Longer Life
  • All ACT Twin Disc Kit Includes CNC Machined And Dynamically Balanced Flywheel To Ensure Both Trouble Free Installation And Operation
  • Clamp Load Increase Of 50 To 120 Percent Over Stock With A Moderate To Stiff Pedal Feel
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Diaphragm Solid 6 Paddle - T2R-G01
Disc Diameter  10-1/2 Inch
Disc Friction Face Design  6 Paddle
Disc Friction Material  Organic
Disc Hub Design  Solid
Flywheel Material  No Flywheel
Flywheel Tooth Count  No Flywheel
Flywheel Weight  No Flywheel
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  No
Input Shaft Size  1-1/8 Inch X 26 Spline
Number Of Friction Discs  2 Disc
Pressure Plate Design  Diaphragm
Torque Holding Capacity  1240 Feet/Pound

1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro

2010 Chevrolet Camaro
2011 Chevrolet Camaro
2012 Chevrolet Camaro
2013 Chevrolet Camaro
2014 Chevrolet Camaro

1997 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
2003 Chevrolet Corvette
2004 Chevrolet Corvette
2005 Chevrolet Corvette
2006 Chevrolet Corvette
2007 Chevrolet Corvette
2008 Chevrolet Corvette
2009 Chevrolet Corvette
2010 Chevrolet Corvette

1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird

2004 Pontiac GTO
2005 Pontiac GTO
2006 Pontiac GTO
