Advanced Clutch Twin Disc HD Street Kit - T1S-G10

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: T1S-G10
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $1,732.49
Price: $1,649.99
You Save: $82.50
Disc Diameter
 10-1/2 Inch
Disc Friction Material
 Organic
Flywheel Material
 Steel
Flywheel Tooth Count
 168
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 No
Input Shaft Size
 1-1/8 Inch X 26 Spline
Number Of Friction Discs
 2 Disc
Pressure Plate Design
 Diaphragm
Torque Holding Capacity
 875 Feet/Pound
Share this page

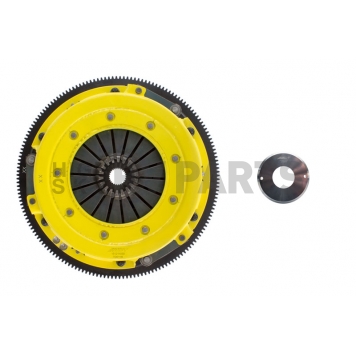

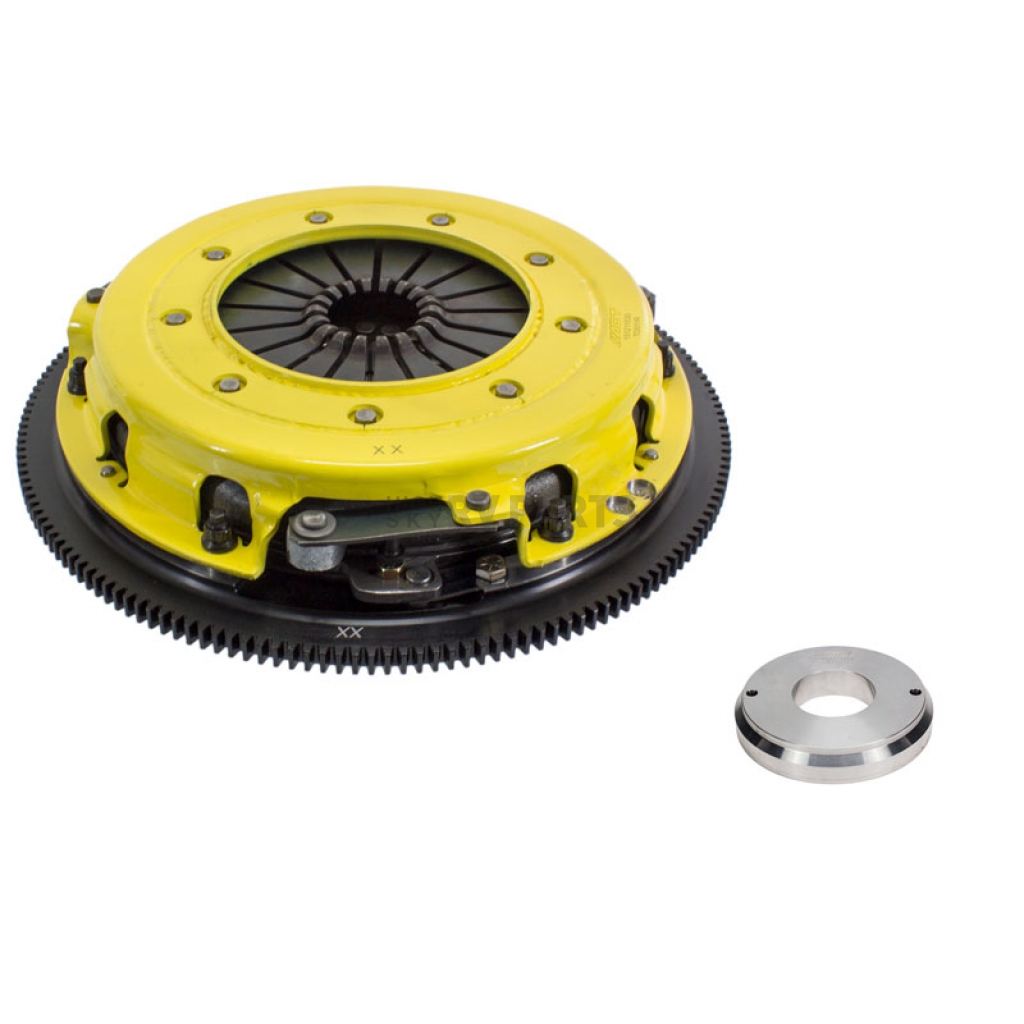

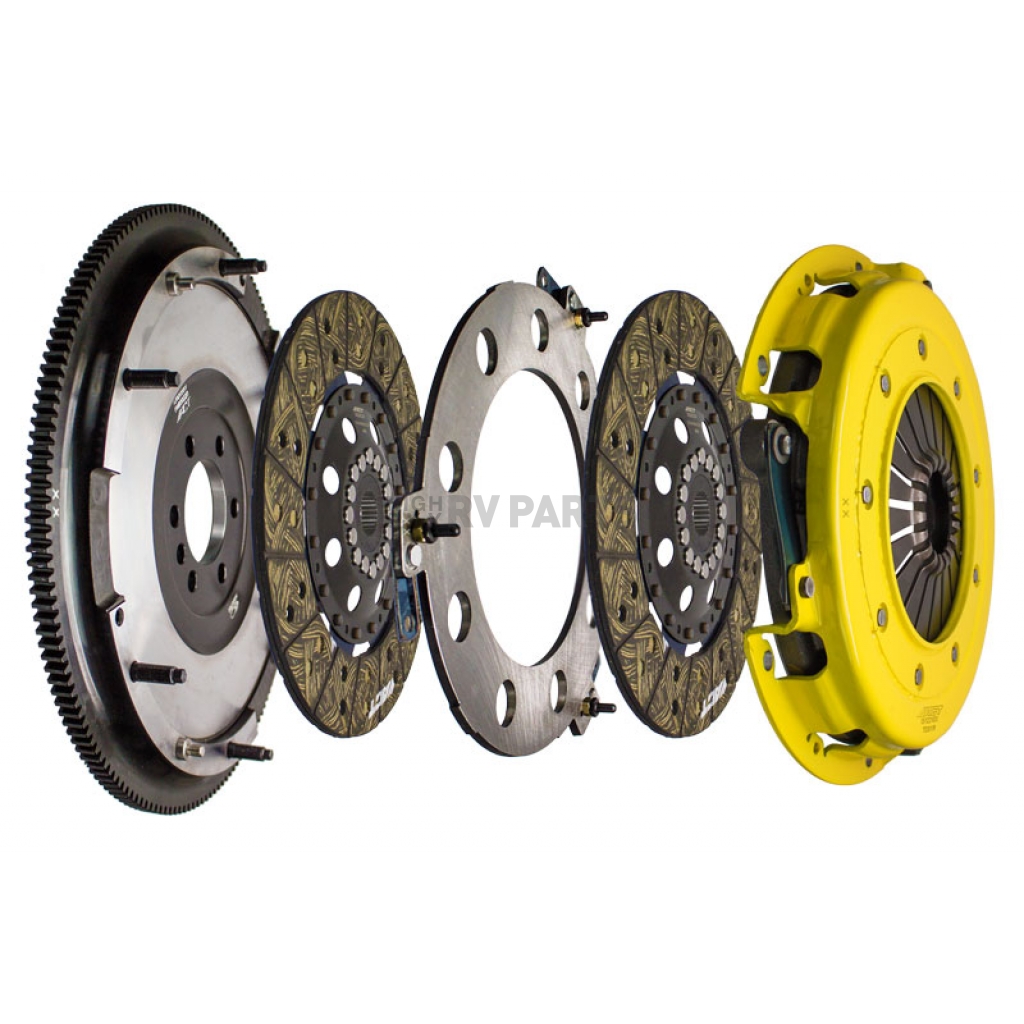

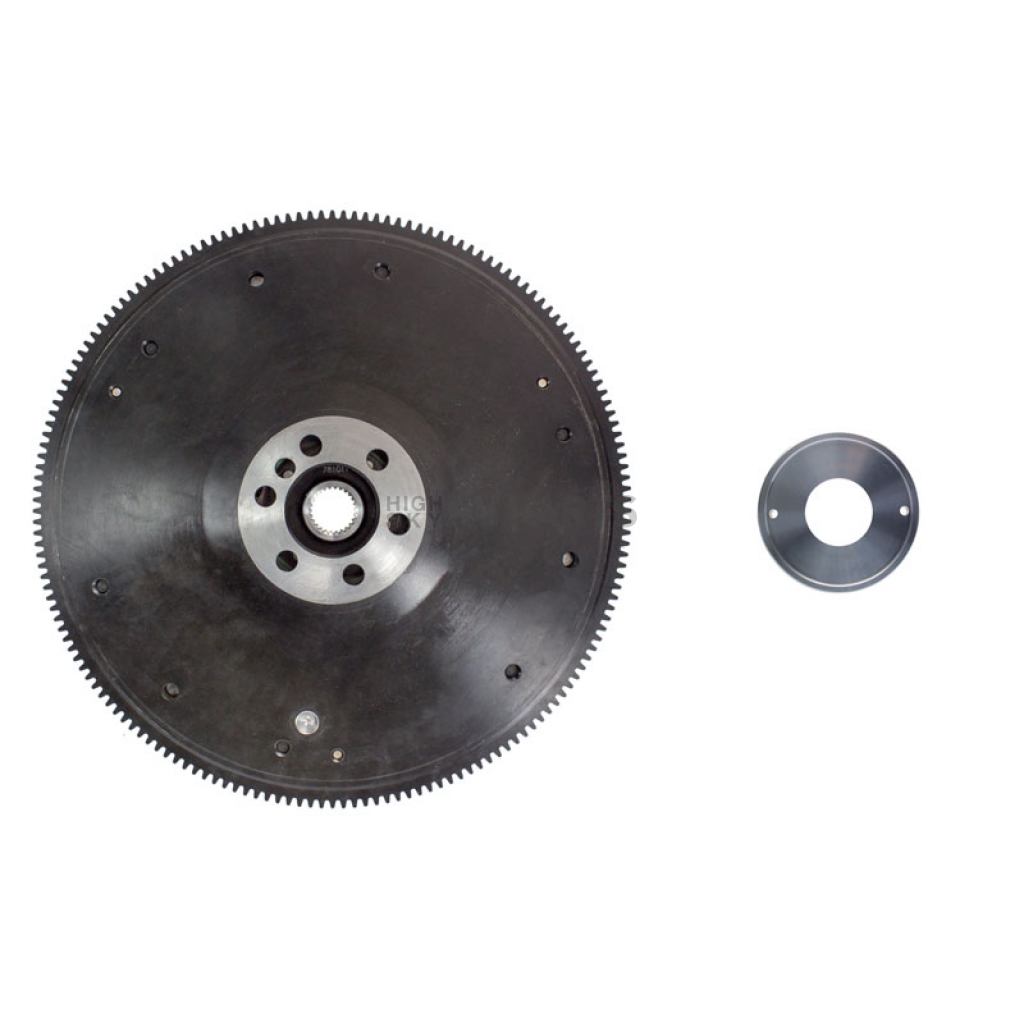

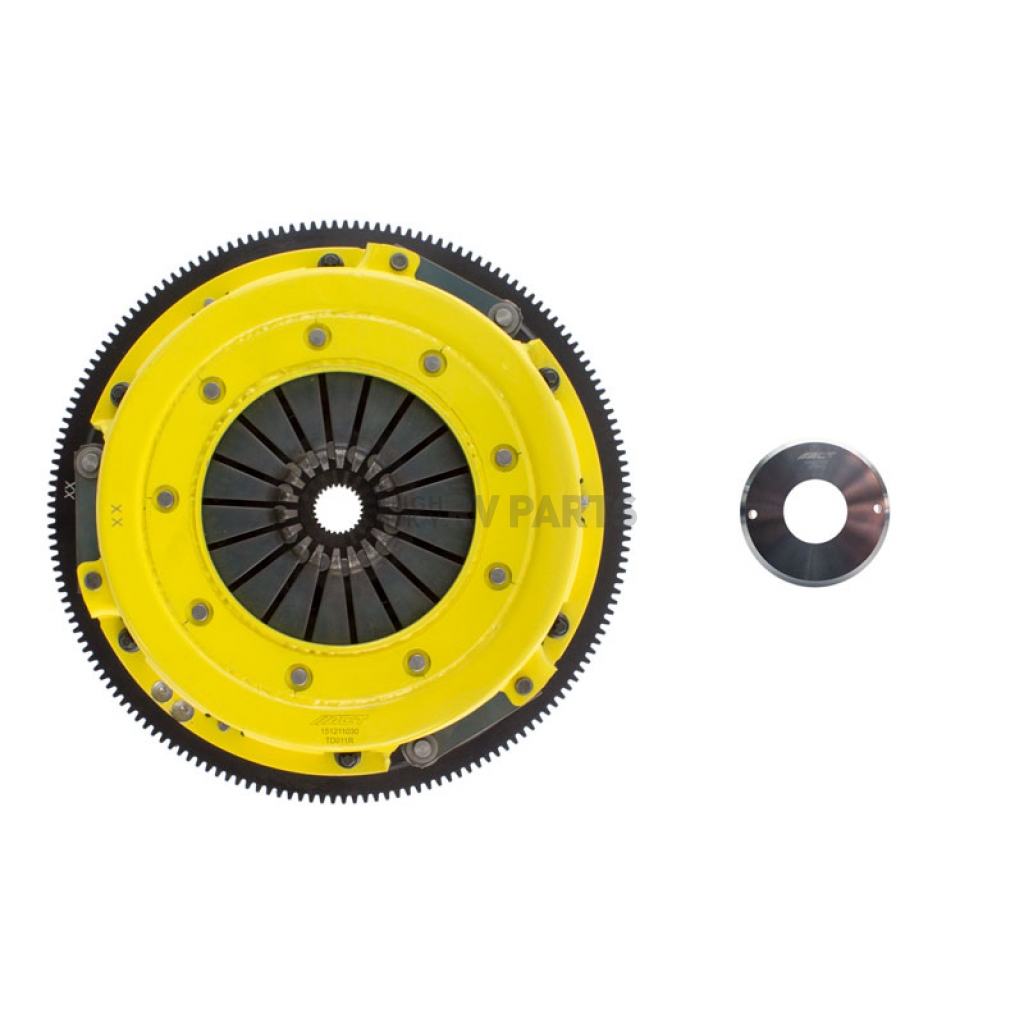

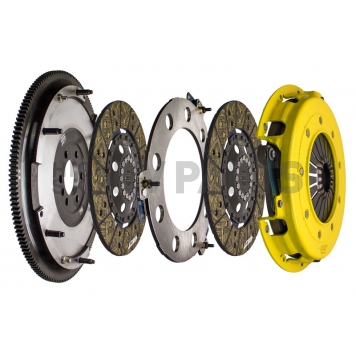

Clutch Set; Twin Street; 10.5 Inch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Dual Disc/ Organic Friction Material; 875 Foot Pound Torque Capacity; With Flywheel/ Pressure Plate/ 2 Discs/ Floater/ Alignment Tool

MPN: T1S-G10

Twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits features the ability to adjust for disc wear and provides equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength.

Pressure Plate Design: Diaphragm
Input Shaft Size: 1-1/8 Inch X 26 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Organic
Disc Diameter: 10-1/2 Inch
Flywheel Tooth Count: 168
Flywheel Material: Steel
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Torque Holding Capacity: 875 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Feel: Light Pedal Effort, Smooth Engagement, OE To Mild Gear Rattle
  • Life: Disc Surfaces Doubled For Better Wear, Heat Capacity And Longer Life, Further Extended By ACT's Exclusive Diaphragm Design
  • Quality: Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Recommended For High Horsepower Street Or Race Use
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Twin Disc HD Street Kit - T1S-G10
Disc Diameter  10-1/2 Inch
Disc Friction Material  Organic
Flywheel Material  Steel
Flywheel Tooth Count  168
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  No
Input Shaft Size  1-1/8 Inch X 26 Spline
Number Of Friction Discs  2 Disc
Pressure Plate Design  Diaphragm
Torque Holding Capacity  875 Feet/Pound

2004 Cadillac CTS
2005 Cadillac CTS
2006 Cadillac CTS
2007 Cadillac CTS
