Advanced Clutch Set Heavy Duty Rigid Dual Full Face - T1S-F08

Name: Advanced Clutch Set Heavy Duty Rigid Dual Full Face - T1S-F08
Brand: Advanced Clutch
SKU: T1S-F08
Price: 1921.99 USD
Availability: InStock

Authorized Dealer

Brand:

Advanced Clutch

0 reviews

Have a product question? Ask us
Part Number: T1S-F08
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 18

Retail: $2,018.09

Price: $1,921.99

You Save: $96.10

Disc Diameter

10-1/2 Inch

Disc Friction Face Design

Dual Full Face

Disc Friction Material

Organic

Disc Hub Design

Rigid

Flywheel Tooth Count

184

Includes Alignment Tool

Yes

Includes Pilot Bearing

Includes Throwout Bearing

Input Shaft Size

1-3/8 Inch X 10 Spline

Number Of Friction Discs

2 Disc

Pressure Plate Design

Heavy Duty

Share this page

Clutch Set; Heavy Duty/ Street; 10-1/2 Inch Clutch Diameter; 1-3/8 Inch x 10 Spline Input Shaft; Diaphragm; 875 Foot Pound Torque Capacity; Dual Disc/ Organic Friction Material; Full Face Design/ Rigid Hub; 18.7 Pound 184 Tooth Flywheel; With Flywheel/ Clutch Disc/ Pressure Plate/ Alignment Tool

MPN: T1S-F08

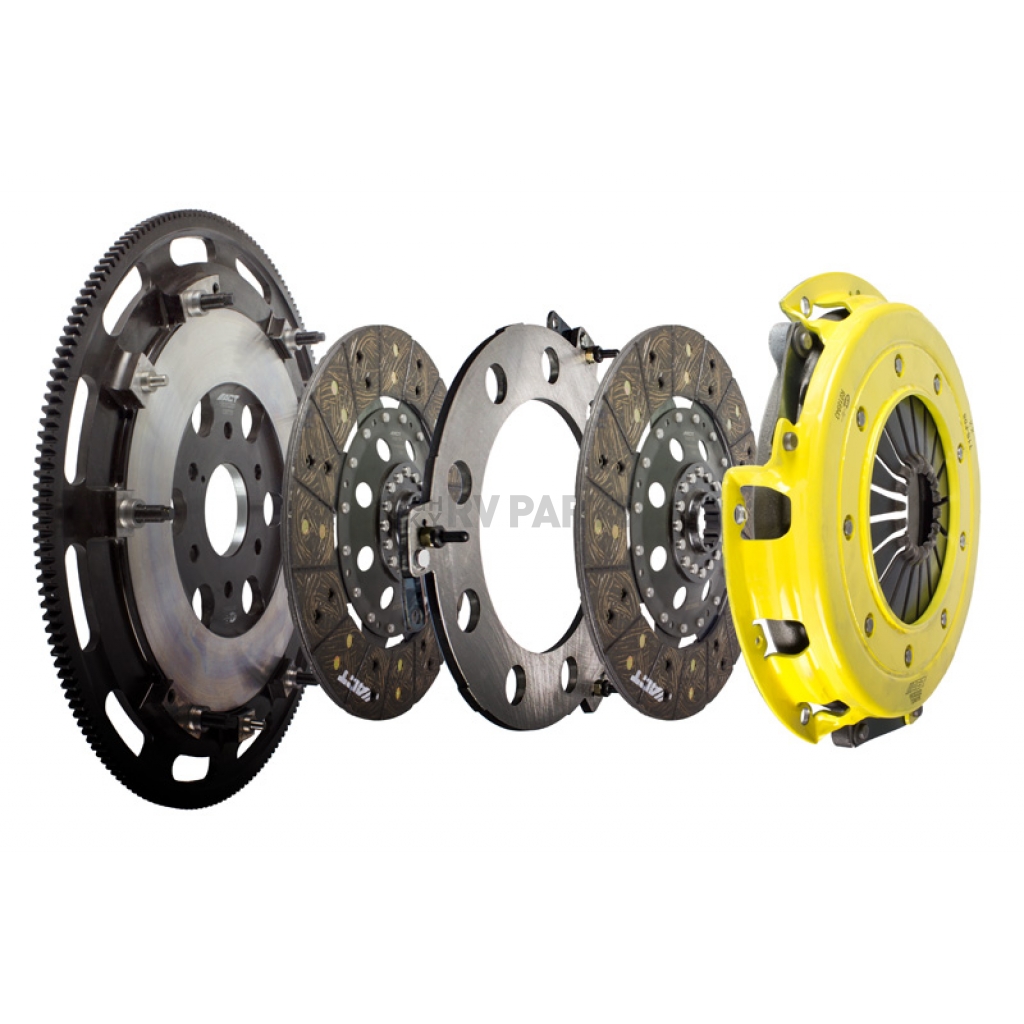

Twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits features the ability to adjust for disc wear and provides equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength.

Pressure Plate Design: Heavy Duty

Input Shaft Size: 1-3/8 Inch X 10 Spline

Number Of Friction Discs: 2 Disc

Disc Friction Material: Organic

Disc Diameter: 10-1/2 Inch

Disc Hub Design: Rigid

Flywheel Tooth Count: 184

Includes Throwout Bearing: No

Includes Pilot Bearing: No

Disc Friction Face Design: Dual Full Face

Torque Holding Capacity: 875 Feet/Pound

Includes Alignment Tool: Yes

Features

Light Pedal Effort, Smooth Engagement, OE To Mild Gear Rattle
Disc Surfaces Doubled For Better Wear, Heat Capacity And Longer Life, Further Extended By Exclusive Diaphragm Design
Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
Recommended For High Horsepower Street Or Race Use
100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
Limited 1 Year Warranty

Specifications of Advanced Clutch Set Heavy Duty Rigid Dual Full Face - T1S-F08
Disc Diameter	10-1/2 Inch
Disc Friction Face Design	Dual Full Face
Disc Friction Material	Organic
Disc Hub Design	Rigid
Flywheel Tooth Count	184
Includes Alignment Tool	Yes
Includes Pilot Bearing	No
Includes Throwout Bearing	No
Input Shaft Size	1-3/8 Inch X 10 Spline
Number Of Friction Discs	2 Disc
Pressure Plate Design	Heavy Duty
Torque Holding Capacity	875 Feet/Pound
