Advanced Clutch Set Heavy Duty Rigid Dual Full Face - T1S-F07

Authorized Dealer
Brand: Advanced Clutch Advanced Clutch
0 reviews
  • Have a product question? Ask us
  • Part Number: T1S-F07
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $1,939.34
Price: $1,846.99
You Save: $92.35
Disc Diameter
 10-1/2 Inch
Disc Friction Face Design
 Dual Full Face
Disc Friction Material
 Organic
Disc Hub Design
 Rigid
Flywheel Tooth Count
 184
Includes Alignment Tool
 Yes
Includes Pilot Bearing
 No
Includes Throwout Bearing
 No
Input Shaft Size
 1-1/8 Inch X 10 Spline
Number Of Friction Discs
 2 Disc
Pressure Plate Design
 Heavy Duty
Share this page

Clutch Set; Heavy Duty/ Street; 10-1/2 Inch Clutch Diameter; 1-1/8 Inch x 10 Spline Input Shaft; Diaphragm; 875 Foot Pound Torque Capacity; Dual Disc/ Organic Friction Material; Full Face Design/ Rigid Hub; 18.7 Pound 184 Tooth Flywheel; With Flywheel/ Clutch Disc/ Pressure Plate/ Alignment Tool

MPN: T1S-F07

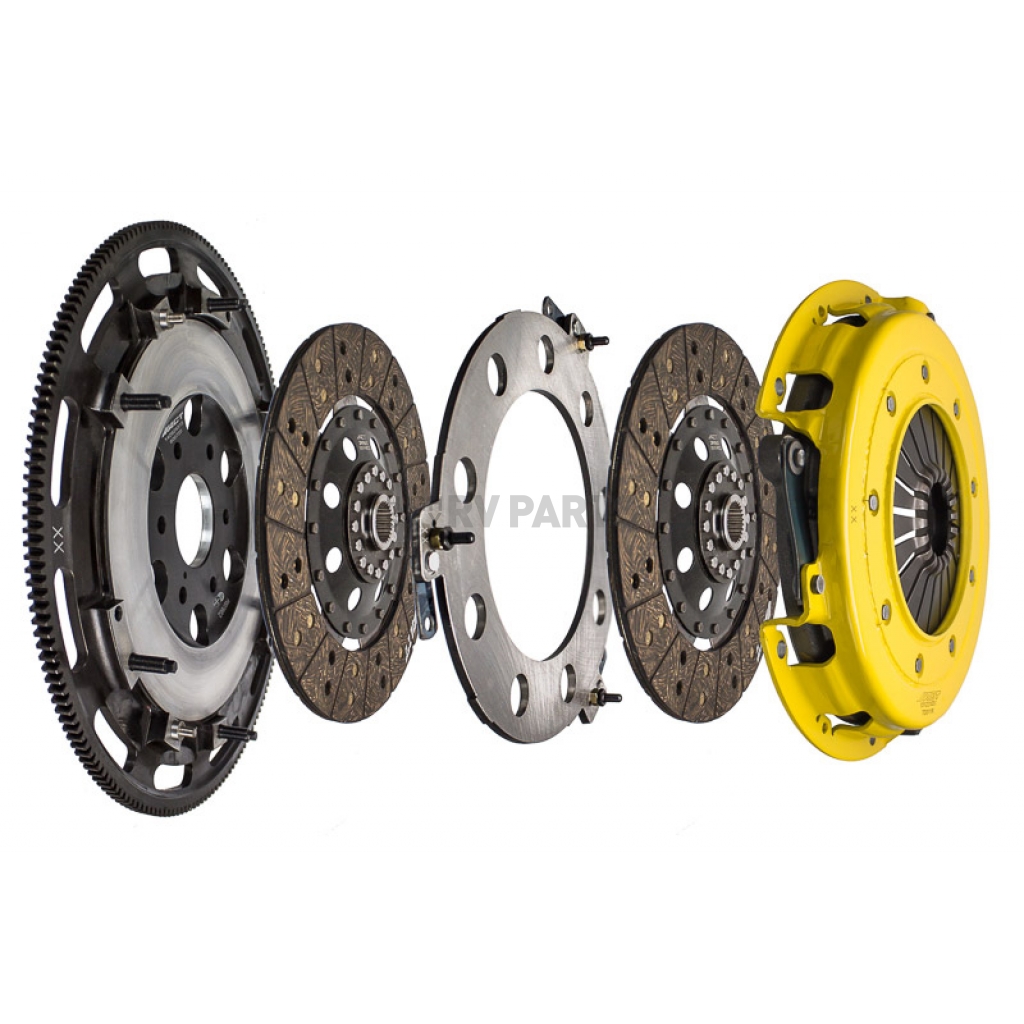

Twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits features the ability to adjust for disc wear and provides equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength.

Pressure Plate Design: Heavy Duty
Input Shaft Size: 1-1/8 Inch X 10 Spline
Number Of Friction Discs: 2 Disc
Disc Friction Material: Organic
Disc Diameter: 10-1/2 Inch
Disc Hub Design: Rigid
Flywheel Tooth Count: 184
Includes Throwout Bearing: No
Includes Pilot Bearing: No
Disc Friction Face Design: Dual Full Face
Torque Holding Capacity: 875 Feet/Pound
Includes Alignment Tool: Yes

Features

  • Light Pedal Effort, Smooth Engagement, OE To Mild Gear Rattle
  • Disc Surfaces Doubled For Better Wear, Heat Capacity And Longer Life, Further Extended By Exclusive Diaphragm Design
  • Carefully Engineered, Precisely Assembled, Accurately Balanced, With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade
  • Recommended For High Horsepower Street Or Race Use
  • 100 Percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High RPM Reliability
  • Limited 1 Year Warranty
Specifications of Advanced Clutch Set Heavy Duty Rigid Dual Full Face - T1S-F07
Disc Diameter  10-1/2 Inch
Disc Friction Face Design  Dual Full Face
Disc Friction Material  Organic
Disc Hub Design  Rigid
Flywheel Tooth Count  184
Includes Alignment Tool  Yes
Includes Pilot Bearing  No
Includes Throwout Bearing  No
Input Shaft Size  1-1/8 Inch X 10 Spline
Number Of Friction Discs  2 Disc
Pressure Plate Design  Heavy Duty
Torque Holding Capacity  875 Feet/Pound

1966 Ford Fairlane
1967 Ford Fairlane
1968 Ford Fairlane
1969 Ford Fairlane

1963 Ford Galaxie
1964 Ford Galaxie
1965 Ford Galaxie
1966 Ford Galaxie
1967 Ford Galaxie

1963 Ford Galaxie 500
1964 Ford Galaxie 500
1965 Ford Galaxie 500
1966 Ford Galaxie 500
1967 Ford Galaxie 500
1968 Ford Galaxie 500
1969 Ford Galaxie 500
1970 Ford Galaxie 500

1967 Ford Mustang
1968 Ford Mustang
1969 Ford Mustang

1967 Ford Ranchero
1968 Ford Ranchero
1969 Ford Ranchero

1968 Ford Torino
1969 Ford Torino

1968 Mercury Comet
1969 Mercury Comet

1967 Mercury Cougar
1968 Mercury Cougar
1969 Mercury Cougar

1968 Mercury Montego
1969 Mercury Montego
