Advanced Clutch Set Diaphragm Solid Full Face - T1S-F05

Name: Advanced Clutch Set Diaphragm Solid Full Face - T1S-F05
Brand: Advanced Clutch
SKU: T1S-F05
Price: 1837.99 USD
Availability: InStock

Authorized Dealer

Brand:

Advanced Clutch

0 reviews

Have a product question? Ask us
Part Number: T1S-F05
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 21

Retail: $1,929.89

Price: $1,837.99

You Save: $91.90

Disc Diameter

11 Inch

Disc Friction Face Design

Full Face

Disc Friction Material

Organic

Disc Hub Design

Solid

Includes Alignment Tool

Yes

Includes Pilot Bearing

Includes Throwout Bearing

Input Shaft Size

1 Inch X 23 Spline

Number Of Friction Discs

2 Disc

Pressure Plate Design

Diaphragm

Torque Holding Capacity

850 Feet/Pound

Share this page

Clutch Set; Twin Street; 11 Inch Clutch Diameter; 1 Inch x 23 Spline Input Shaft; Diaphragm; Dual Disc/ Organic Friction Material; Full Face Design/ Solid Hub; With Advanced Clutch Technology Part Number 600530 Clutch Flywheel/ Heavy Duty Clutch Pressure Plate/ Street Clutch Disc/ AT111EX Clutch Alignment Tool

MPN: T1S-F05

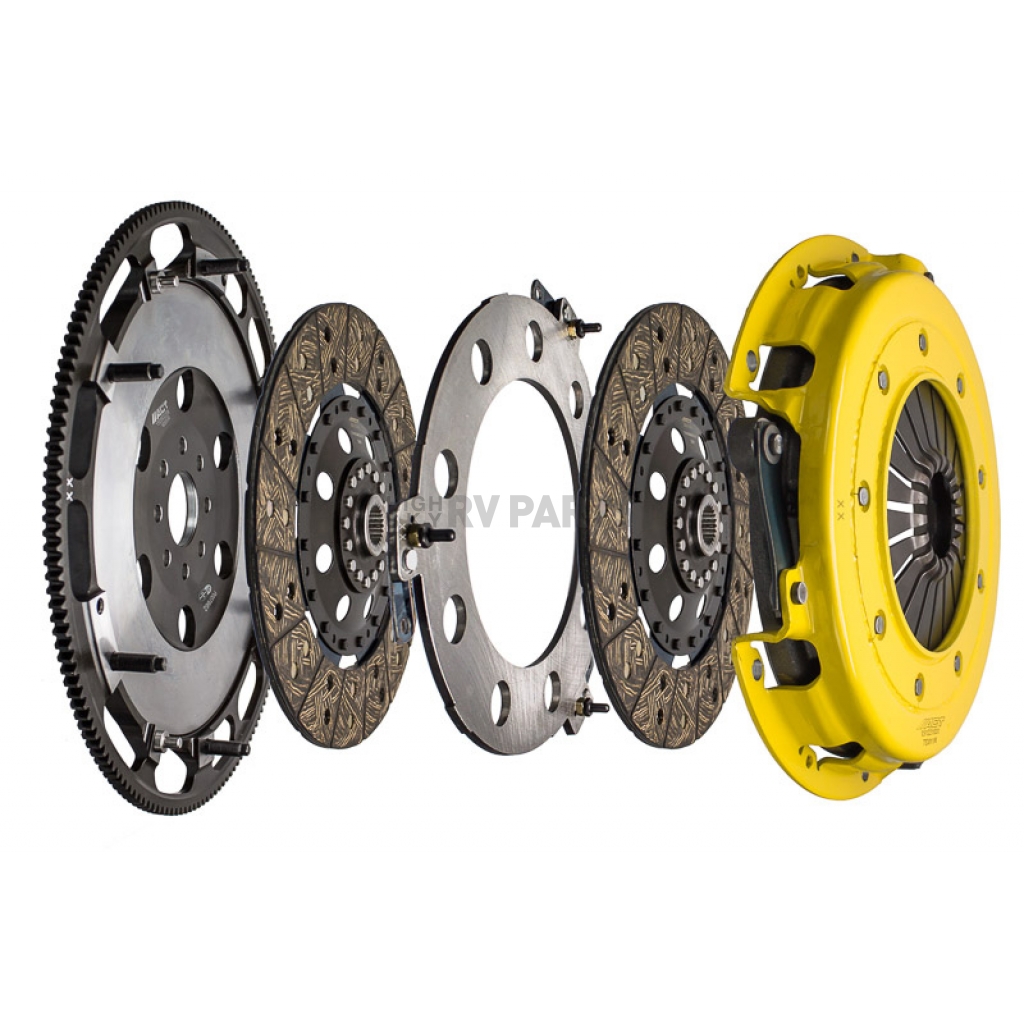

The ACT Heavy-Duty street twin disc kit includes a Heavy-Duty pressure plate, two street discs, a floater and flywheel. The Heavy-Duty pressure plate offers a clamp load increase of 20 to 50 Percent with a stock to moderate pedal feel. ACT twin disc kits offer twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. With an ACT twin disc, there also is the ability to adjust for compensation of disc wear and provides equal disengagement for discs. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. Exclusive four-stage, heat treating process performed on all diaphragms.

Pressure Plate Design: Diaphragm

Input Shaft Size: 1 Inch X 23 Spline

Number Of Friction Discs: 2 Disc

Disc Friction Material: Organic

Disc Diameter: 11 Inch

Disc Hub Design: Solid

Includes Throwout Bearing: No

Includes Pilot Bearing: No

Disc Friction Face Design: Full Face

Torque Holding Capacity: 850 Feet/Pound

Includes Alignment Tool: Yes

Features

Solid Disc Provides Faster Shifting And High Burst Strength. Three Different Disc Combinations Are Available For Various Power Levels
Up To Three Different Pressure Plate Clamp Load Designs Offering Light, Moderate And Firm Pedal Efforts For High Torque Applications
The ACT Proprietary Positive Lift Floater System Design Results In Quiet Operation With No Floater Rattle And Posts To Wear
Ability To Adjust For Compensation Of Disc Wear And Provides Equal Disengagement For Discs
Offers Twice The Number Of Disc Surfaces For Better Wear, Heat Capacity And Longer Life
All ACT Twin Disc Kit Includes CNC Machined And Dynamically Balanced Flywheel To Ensure Both Trouble Free Installation And Operation
Clamp Load Increase Of 20 To 50 Percent Over Stock With A Stock To Moderate Pedal Feel
Limited 1 Year Warranty

Specifications of Advanced Clutch Set Diaphragm Solid Full Face - T1S-F05
Disc Diameter	11 Inch
Disc Friction Face Design	Full Face
Disc Friction Material	Organic
Disc Hub Design	Solid
Includes Alignment Tool	Yes
Includes Pilot Bearing	No
Includes Throwout Bearing	No
Input Shaft Size	1 Inch X 23 Spline
Number Of Friction Discs	2 Disc
Pressure Plate Design	Diaphragm
Torque Holding Capacity	850 Feet/Pound
